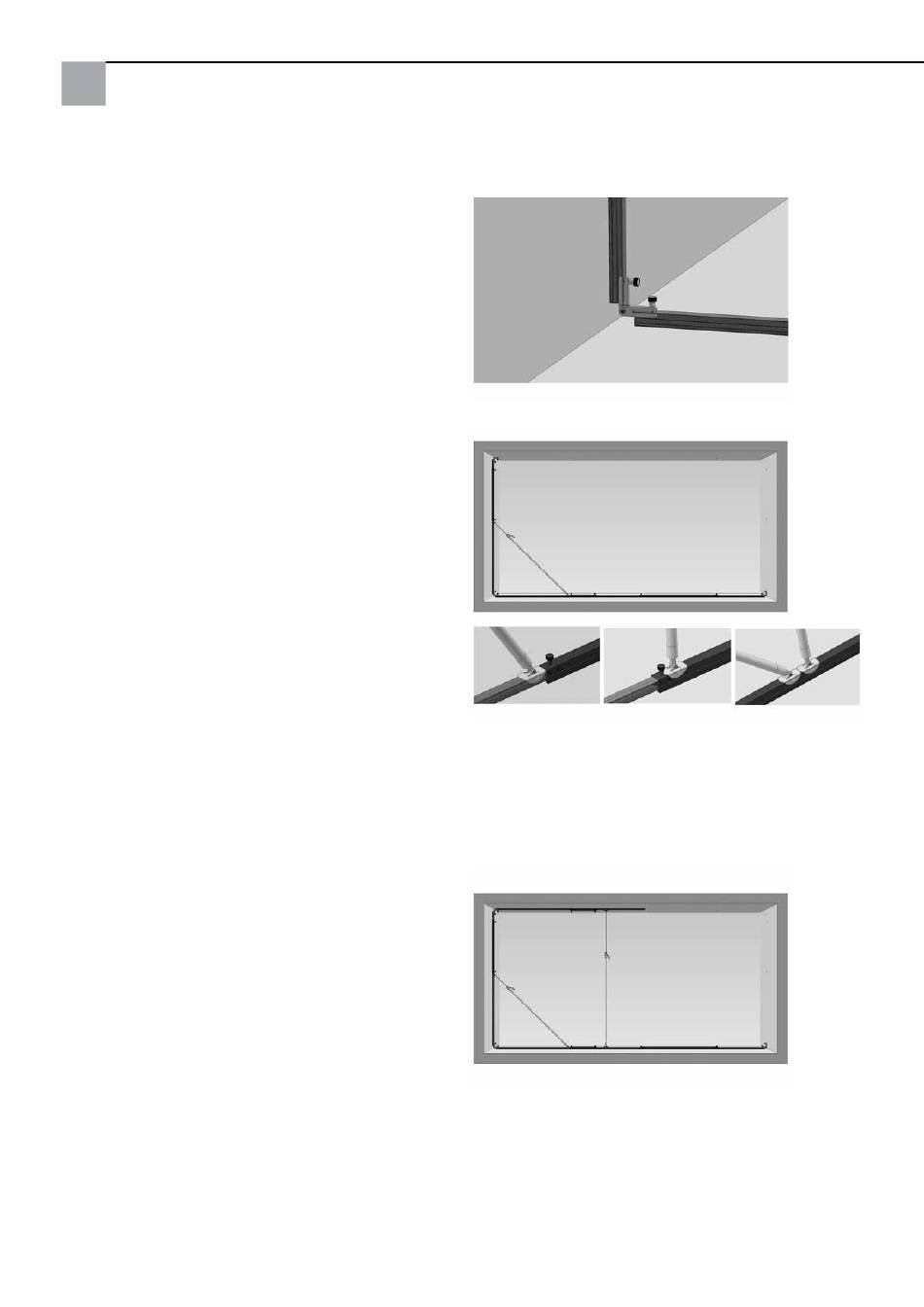

Connection of a T profile with a corner connector
c) Assembly of side elements
Required elements for ceiling height of up to 2,70 m:
1 x T connection profile 150
1 x U intermediate profile 100
1 x T connection profile 25
For the installation of the side elements connect the T
and U profiles so that in each case a T profile is placed at
both ends. Mount a corner connector at the upper end of
the side elements, in each case on the outside. Connect
the side element below with the corner connector of the
floor element, pull apart to the desired height and then
tighten the fixing screws hand-tight.
d) Securing of the side elements with telescopic sup-
ports
In order to secure the side element, place the telescopic
support obliquely between the floor and side element.
To do this, place the telescopic support with the support
discs on the tops of the profiles of wall and floor ele-
ments, pull out the inner tube by first loosening and then
re-engaging the locking tabs to the right length.
In order to fix and fine-tune the length of the telescopic
supports, press their clamp handles several times until
the support discs are stopped either by the locking screws
of the profiles or by the edges of transitions from T to U
profiles or by support feet of the vertically mounted sup-
ports. Exert only as much pressure as necessary to ensure
the tightness of the wall elements.
Note:
For positioning of the support: make sure that the clamp
handles of the telescoping supports are positioned out-
ward. Thus, the handles do not interfere with taping off
the profiles on the inside.
e) Installation of the ceiling element
Put together the ceiling element in the same length as
the floor element (excluding corner connector) with the T
profiles on both ends.
First connect a T and a U profile for about half of the cei-
ling distance.
Then connect the T element of this part of the ceiling
structure with the corner connector of the side element
and let it hang freely on the side element.
Then stabilize this free-hanging part by means of a teles-
copic support that you place between the ceiling and the
floor structure and then pull it out.
