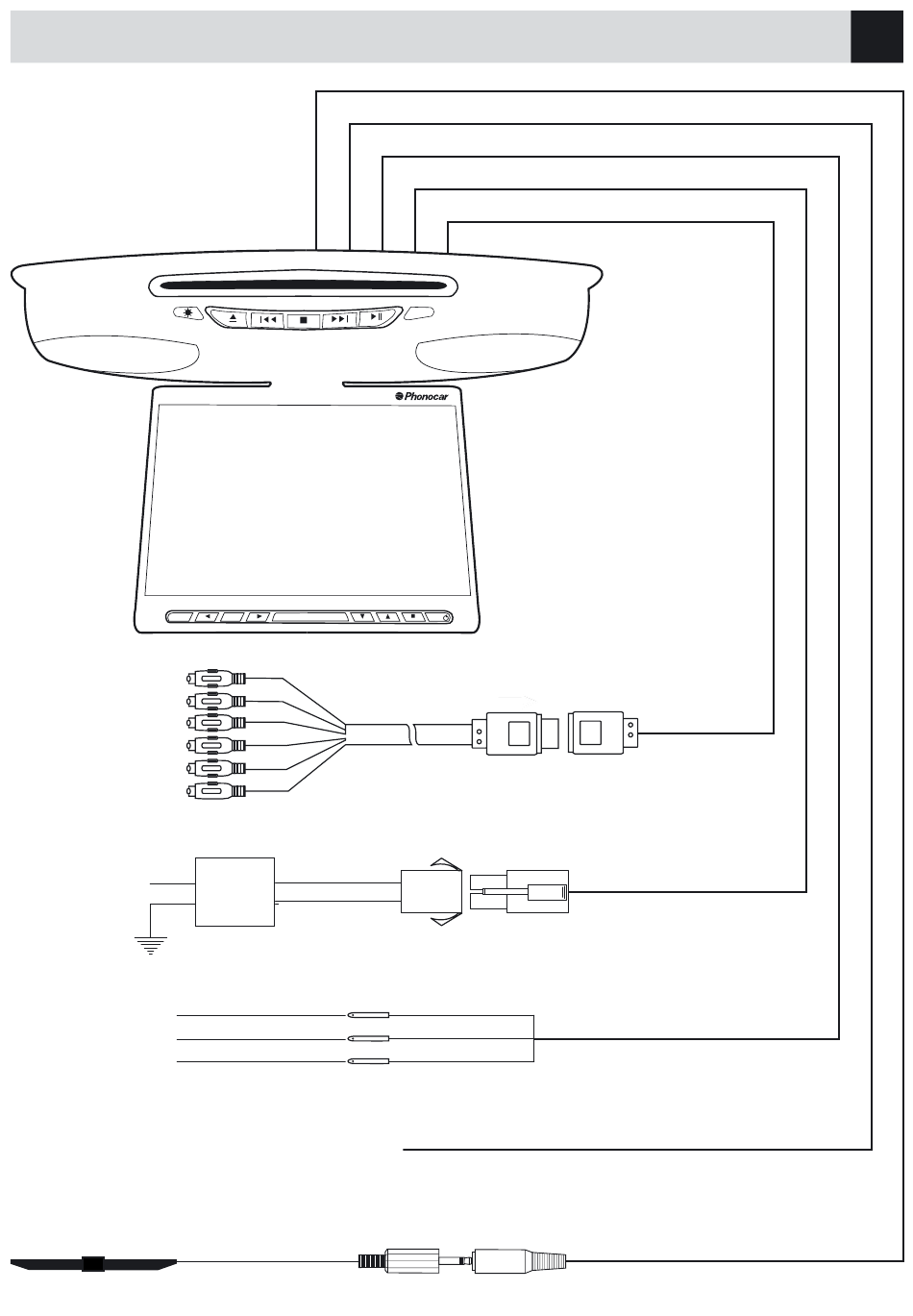

Connection scheme

VM190
WHITE AUDIO IN 1 L
RED AUDIO IN 1 R
YELLOW VIDEO IN 1
WHITE AUDIO OUT L
RED AUDIO OUT R
YELLOW VIDEO OUT
RED + 12V
BLACK GROUND
+ 12V LIGHT
+ 12V BATTERY
GROUND
TV ANTENNA
VM811
YELLOW
RED
BLACK
FM-AIR WIRE
MAIN POWER SUPPLY
DOME LIGHT POWER
BLACK
JACK 3,5"
23
TV AERIAL INPUT
