BEDIENUNGSANLEITUNG
Anleitung zum Einbau des Feuchtemoduls
MANUAL
Manual for installation of humidity module
MANUEL DE MISE EN SERVICE
Précautions de montage du module d'humidité
BA_Feuchtemodul_01 // Technische Änderungen vorbehalten / technical data are subject to change / sous réserve de modifications techniques // 302291
1. Schutzfolie von der Unterseite des Feuchtemoduls entfernen.
Remove the protective tape from the back of the humidity module.
Ôter le film de protection sous le module d'humidité.
2. Feuchtemodul mit Bauteilseite nach oben einstecken.
Plug in the humidity module with the adhesive side facing the
printed circuit board.
Insérer le module d'humidité avec les composants sur le dessus.
3. Feuchtmodul mit leichtem Fingerdruck auf der Platine fixieren.
Press gently the humidity module onto the printed circuit
board. Due to the adhesive layer they will stick together.
Fixer le module sur la platine avec une légère pression du doigt.

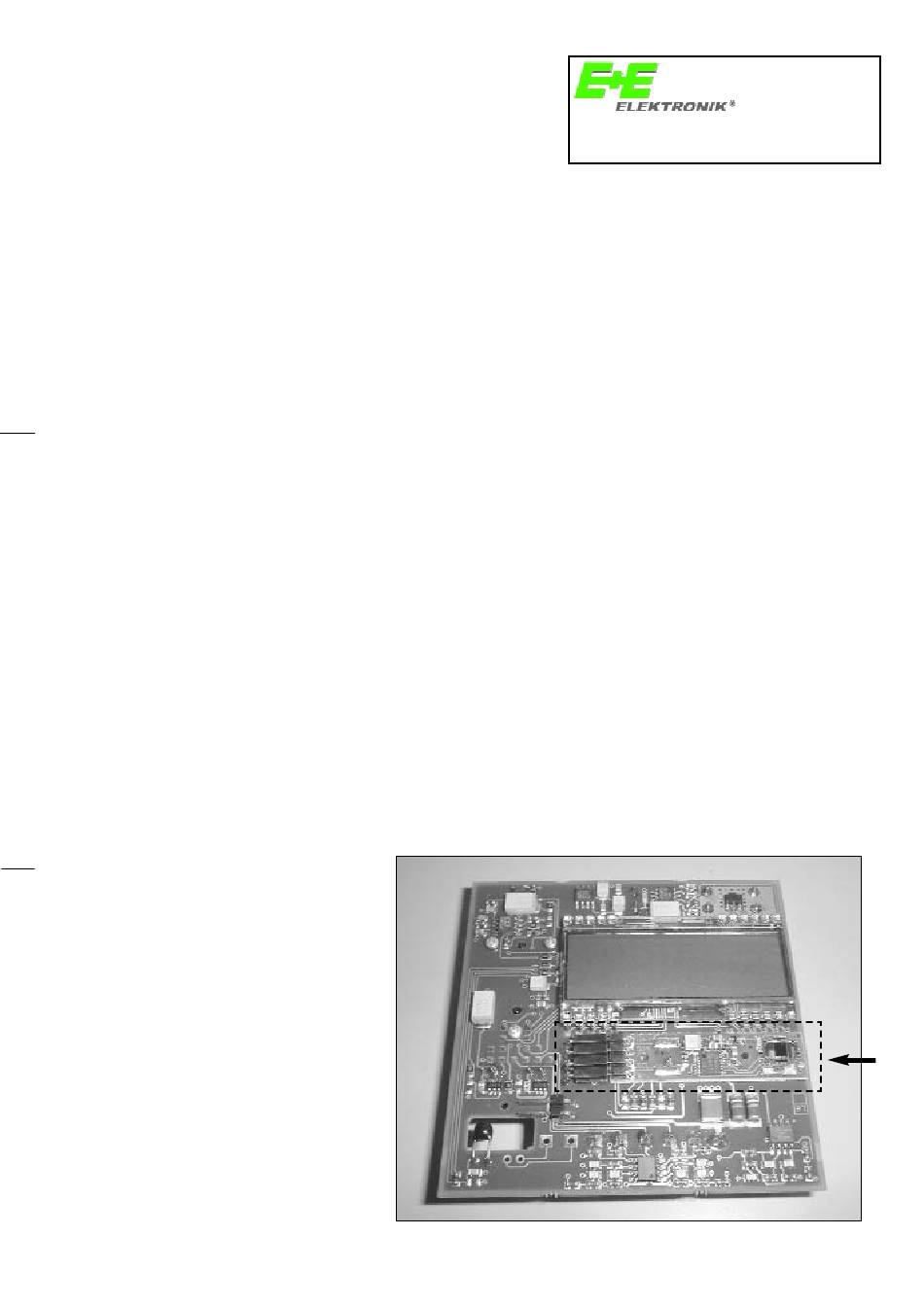

4. Nach erfolgreichem Einbau sollte es wie auf folgendem Bild aussehen.
The picture shows the correct mounted humidity module.
Vérifier le bon montage du module d'humidité avec la photo ci-jointe.
