Radio Modems Wireless M-Bus AMR - Mode d'emploi / User guide version V1.8.1
7.3.2.01

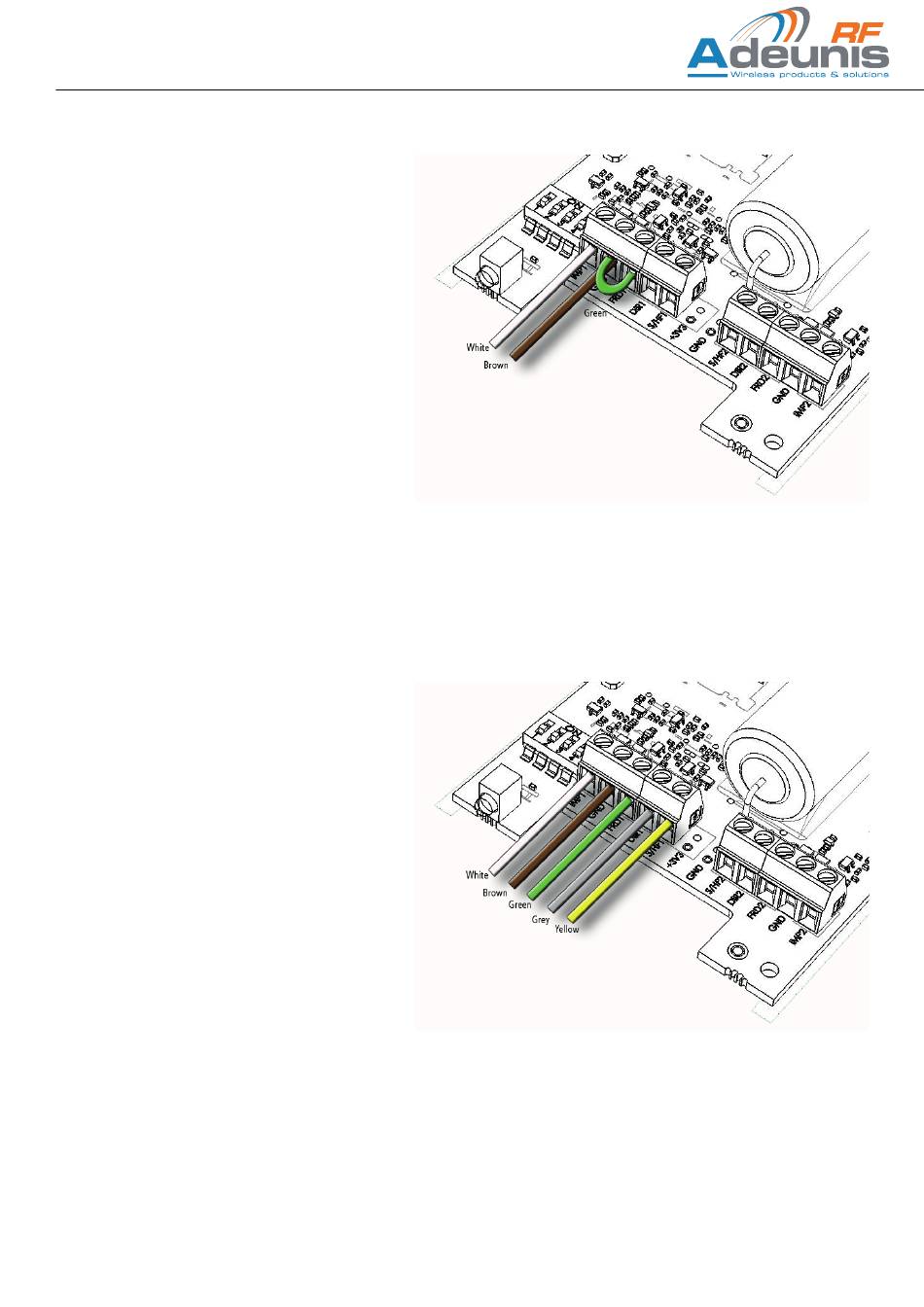

Wiring of «2 wire Itron Cyble» - 1 meter - Water
Procedure :
•
Open the housing of the modem AMR and remove the
bottom (two screws)
•
Insert the cables through the cable gland located on the
bottom part of the housing
•
Set switch 1 to ON
•
Connect the white cable to IMP1
•
Connect the brown cable to GND
•
Back ground green wire (FRD1) on the GND of the
sensor
•
Close the housing and tighten the screws
•
Tighten the gland nut to ensure sealing
Note : Always connect the green wire (fraud) last !
7.3.2.02
Wiring of «5 wire Itron Cyble» - 1 meter - Water
Procedure :
•
Open the housing of the modem AMR and remove the
bottom (two screws)
•
Insert the cables through the cable gland located on the
bottom part of the housing
•
Set switch 1 to ON
•
Connect the white cable to IMP1
•
Connect the brown cable to GND
•
Connect the grey wire to DIR1
•
Connect the yellow wire to S/HF1
•
Connect the green wire to FRD1
•
Close the housing and tighten the screws
•
Tighten the gland nut to ensure sealing
Note : Always connect the green wire (fraud) last !
