PREPARATION
Connections
Caution: Plug in this unit and other components after all connections are completed.
All connections must be correct, that is to say L (left) to L, R (right) to R, "+" to "+" and "–" to "–". Also refer to the owner's manual for
each of your components.
Audio/video source equipment
Use RCA type pin plug cables for audio/video units with the exception described later.
The output (or input) terminals of YAMAHA audio/video units numbered as 1, 3, 4, etc. on the rear panel must be connected to
the same-numbered terminals of this unit.

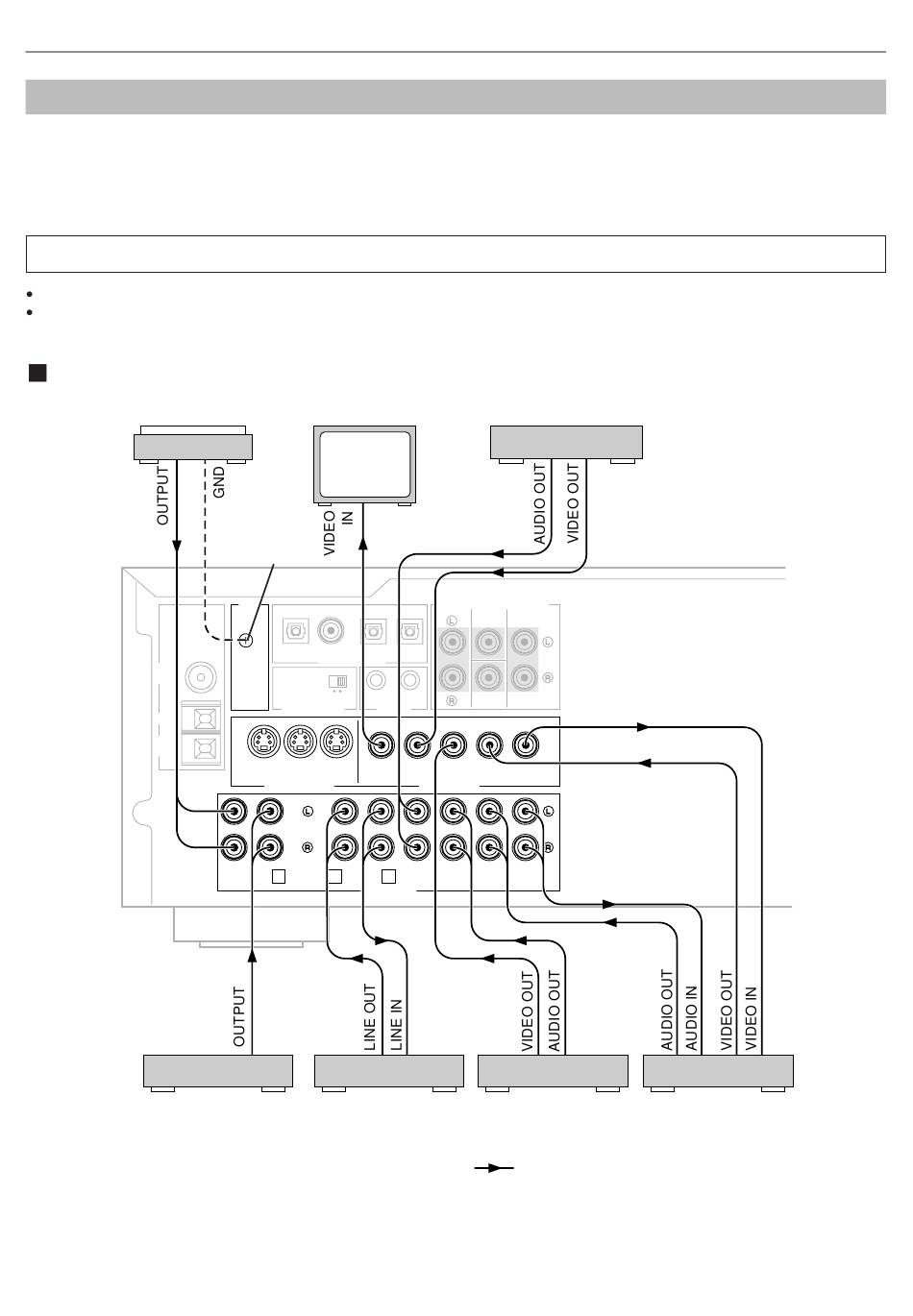

Basic connections
Turntable
FM
ANT
GND
AM
ANT
GND terminal (For turntable use)
(*1):
Connecting the ground wire of the turntable to the GND
terminal will normally minimize hum, but in some cases
better results may be obtained with the ground wire
disconnected.
14
TV monitor
(*1)
GND
75Ω UNBAL.
CD
DVD/LD
OPTICAL
COAXIAL
DIGITAL SIGNAL
S VIDEO VIDEO
ON SCREEN SELECTOR
IN
OUT
MONITOR
OUT
VCR
S VIDEO SIGNAL
IN (PLAY) OUT (REC)
1
3
TAPE/MD
PHONO
CD
MD recorder,
CD player
Tape deck, etc.
LD player, DVD player, etc.
EXTERNAL DECODER INPUT
MAIN
CENTER
SURROUND
DVD/LD
TV/DBS
OPTICAL
IN
OUT
SUB
REMOTE
WOOFER
CONTROL
MONITOR
IN
OUT
OUT
DVD/LD
TV/DBS
VCR
VIDEO SIGNAL
IN
OUT
4
DVD/LD
TV/DBS
VCR
AUDIO SIGNAL
TV/Satellite tuner
: Indicates the direction of signals.
(U.S.A. model)
Video cassette
recorder
