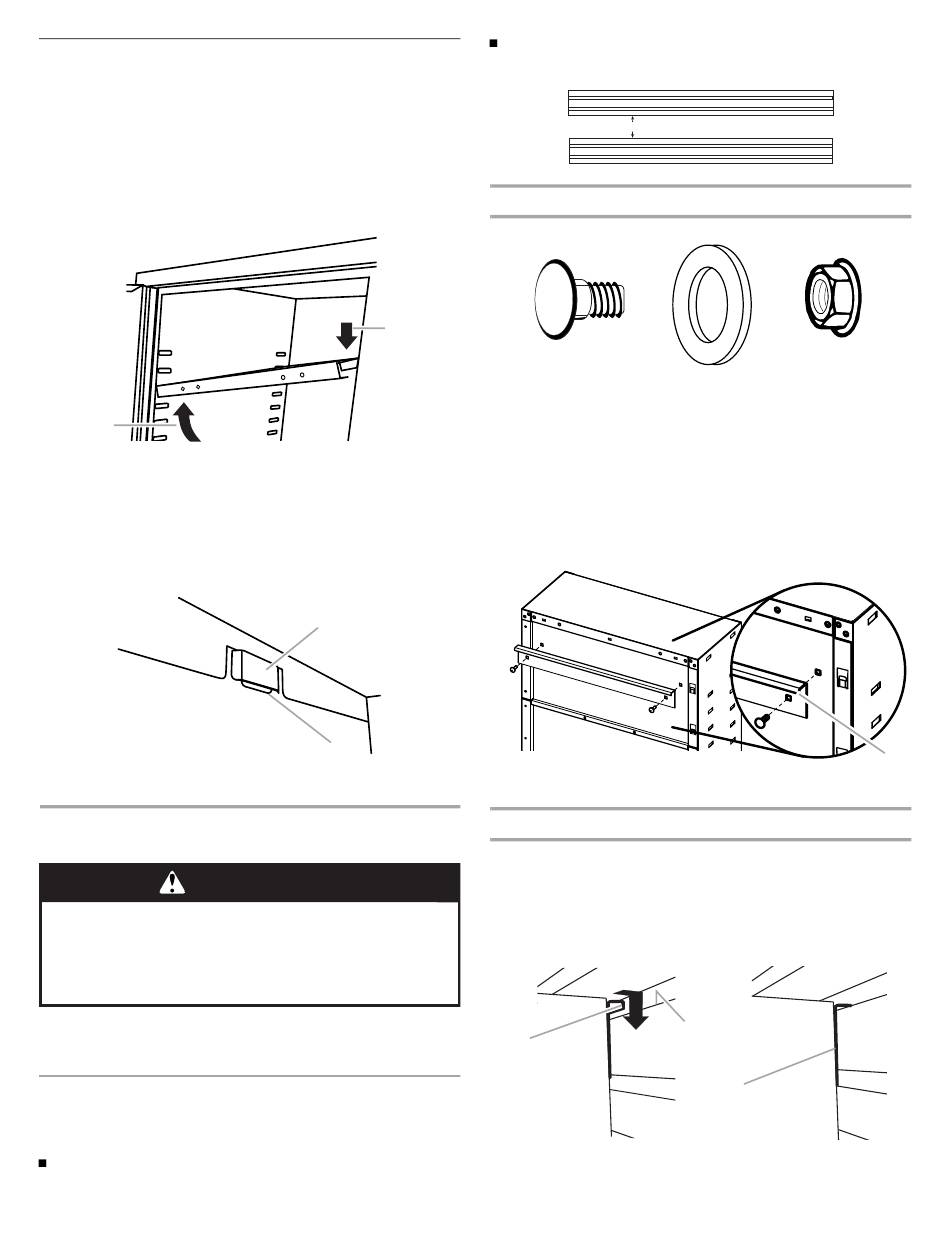

Install Shelves

Plan your shelf heights and install the shelves starting from the
bottom. The shelves are supported by the metal loops on the side
walls of the cabinet.
1. Determine the placement of the shelves (P6 and P6m).
2. Place the shelf (P6) in the cabinet so that the long edge with the
holes is toward the front of the cabinet.
3. Tilt the shelf so that one end is higher than the other as shown.
4. Repeat steps 2 and 3 for the other shelf (P6m) with magnet.
NOTE: The higher end of the shelf should be directly above the
cabinet loop at the desired height.
B
A. Push down.
B. Lift up.
5. Push the shelf edge down so the shelf tabs go into the cabinet
loops.
6. Lift up on the lower end of the shelf so it is above the desired
cabinet loop and push the shelf down into place.
NOTE: Make sure the shelf tabs are in place behind all the
cabinet loops as shown.
7. Repeat steps 2 through 5 to install the other shelf.
A. Cabinet loop
B. Shelf tab

INSTALLATION INSTRUCTIONS

WARNING
Excessive Weight Hazard
Use two or more people to move, assemble or install
cabinet.
Failure to do so can result in back or other injury.
IMPORTANT: Decide if you are going to mount the cabinet on
Gladiator ® GearWall ® panels or GearTrack
standard wall.

Install Cabinet to GearWall

or GearTrack
IMPORTANT:
Be sure the GearWall ® panels or GearTrack
installed with mounting screws in every slot and at every stud
location with a maximum of 24" (60.96 cm) horizontally between
screws.
A
A
B
® channels, or on a
®

Panels

®

Channels

® channels are
If installing cabinet on GearTrack
should be installed 18" below the bottom of the supporting
channel so the cabinet will hang level.
18" (46 cm)
Attach Mounting Bracket
F7
F7 Carriage-head bolt (2)
F8 Washer (2)
1. With the mounting bracket (P9) rims pointing down, align the two
bracket holes with the two holes in the top back
panel (P4).
2. Working from the back, insert a carriage bolt (F7) through the
bracket and top back panel (P4).
3. Working from the cabinet interior, fasten each bolt with a
washer (F8) and a flange nut (F2). Fully tighten the bolts.
4. Close the cabinet doors.
P2
P9
P4
P5
A. Bracket rim pointing down
Mount on GearWall ® Panels or GearTrack
1. Determine cabinet mounting location on GearWall
GearTrack ® channels.
2. Using two or more people, engage the mounting bracket into the
wall slot by lifting up, pushing toward the wall and lowering the
bracket rim into the slot.
3. Inspect the cabinet from the sides to ensure the wall-mounting
bracket is fully engaged in the slot as shown.
A
A. Bracket rim
B. Slot
® channel, a second channel
F8 F2
F2 ⁵⁄₁₆ " Flange nut (2)
P2
P4
P1
P9
® Channels
®
panels or
B
C
C. Mounting bracket
fully engaged
P1
A
