Favero CONSOLE-300 Mode D'emploi page 5

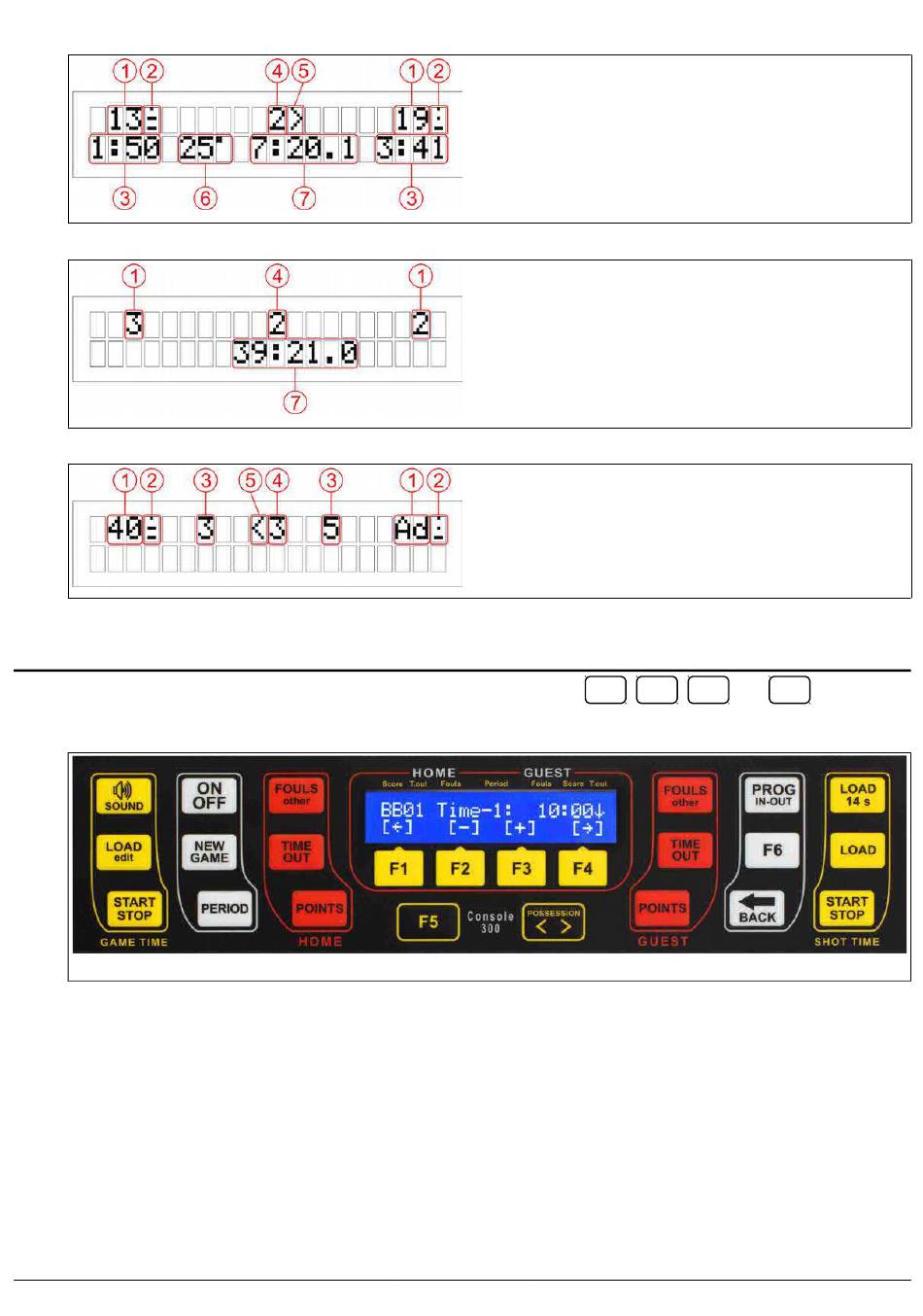

WATERPOLO, FUTSAL main screen
FOOTBALL, RUGBY main screen
Schermata principale TENNIS
2.3. Multifunction buttons
Depending on the screen displayed, it is possible to operate on the
2.2) to carry out specific functions as indicated on the display near the buttons. For example, by operating on
these buttons, it is possible to modify the score value or load the preset times in the chronometer.
Fig. 2.2: Keypad and display
00307-M01-01-ML - Console-300 User Manual
(1) Team scores
(2) Assigned timeouts
(3) Penalty time
(4) Game period
(5) Ball possession
(6) Shot time
(7) Chronometer (minutes:seconds:tenths)
(1) Team scores
(4) Game period
(7) Chronometer (minutes:seconds:tenths)
(1) Players' scores
(2) Sets won
(3) Games won
(4) Current set
(5) Service
,
F1
, and buttons (Fig.
F2 F3 F4
