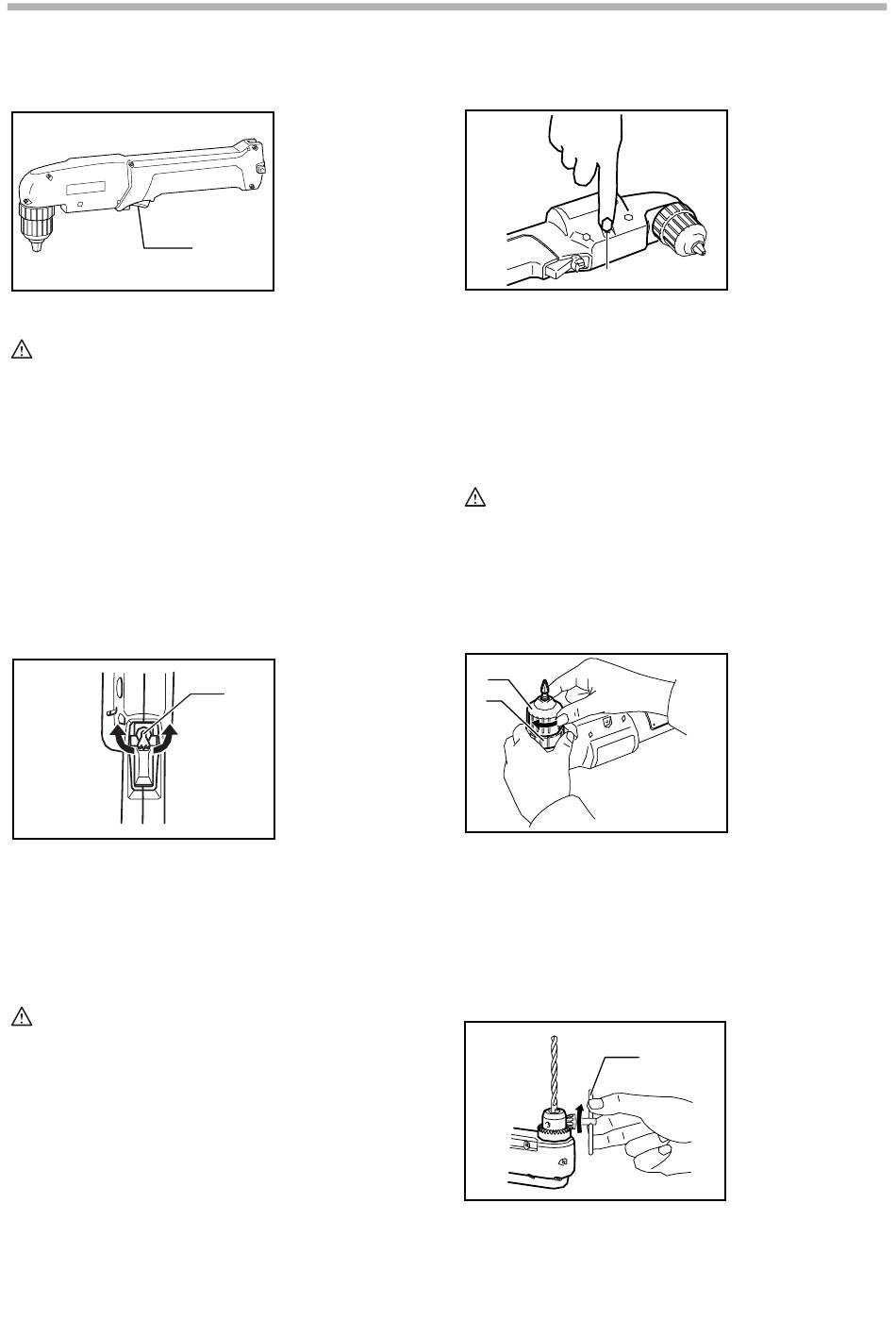

Switch action
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
To start the tool, simply pull the switch trigger. Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
Electric brake
This tool is equipped with an electric brake. If the tool
consistently fails to quickly stop after switch trigger
release, have tool serviced at a Makita service center.
Reversing switch action
B
This tool has a reversing switch to change the direction
of rotation. Depress the reversing switch lever from the A
side for clockwise rotation or from the B side for counter-
clockwise rotation.
When the reversing switch lever is in the neutral position,
the switch trigger cannot be pulled.
CAUTION:
• Always check the direction of rotation before opera-
tion.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of rota-
tion before the tool stops may damage the tool.
• When not operating the tool, always set the revers-
ing switch lever to the neutral position.
002870
1. Switch trigger
1
002081
1. Reversing
switch lever
1
A
Overload protector
1
The overload protector automatically cuts out to break
the circuit and the button pops out, whenever heavy work
is prolonged. Wait 20 - 30 seconds before pressing the
reset button to resume operation. The tool should be
switched off when you press the reset button, however.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out any
work on the tool.
Installing or removing driver bit or drill bit
For model DA391D
1
2
Hold the ring and turn the sleeve counterclockwise to
open the chuck jaws. Place the bit in the chuck as far as
it will go. Hold the ring firmly and turn the sleeve clock-
wise to tighten the chuck.
To remove the bit, hold the ring and turn the sleeve coun-
terclockwise.
For model DA301D
To install the bit, place it in the chuck as far as it will go.
Tighten the chuck by hand. Place the chuck key in each
5
002106
1. Reset button
002123
1. Sleeve
2. Ring
003609
1. Chuck key
1
