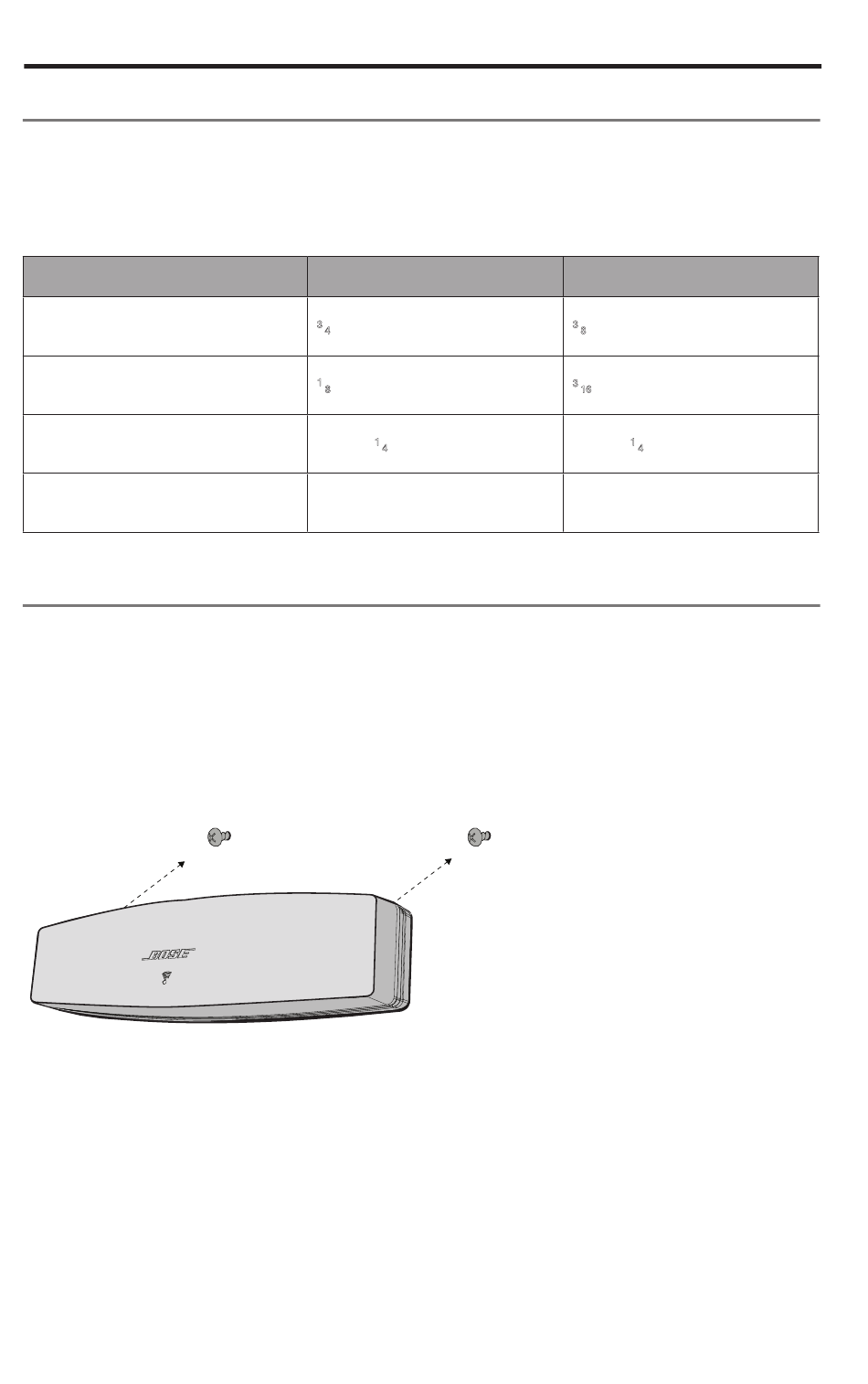

Appendix B: Mounting the Wireless Adapter
Mounting the adapter
You can mount the adapter on a wall (hardware not included). If your mounting
hardware comes with instructions that differ from these instructions,
follow the instructions supplied with your hardware.
This table describes mounting hardware specifications.
Item
Wall thickness
Drill bit
Pan-head wood screws (2)
Plastic wall anchors (2)

Mounting options

There are two ways to mount the adapter:
• Vertically; connector panel facing left
• Horizontally; connector panel facing up

To mount the adapter

1.
Drill two holes 6 ¼ in. (159 mm) center-to-center.
2.
Insert plastic wall anchors (if mounting to wallboard).
3.
Install pan-head wood screws.
Note: Leave the screw heads ¼ in. (6.35 mm) above wall surface.
4. Position adapter onto the screws.
20 - English
Wood
⁄ in. (19 mm) or thicker
3
4
⁄ in. (3 mm)
1
8
#8 x 1 ⁄ in. (32 mm)
1
4
Not used
Wallboard
⁄ in. (9.5 mm) or thicker
3
8
⁄ in. (4.5 mm)
3
16
#8 x 1 ⁄ in. (32 mm)
1
4
#6 - 8 x 1 in. (25 mm)
