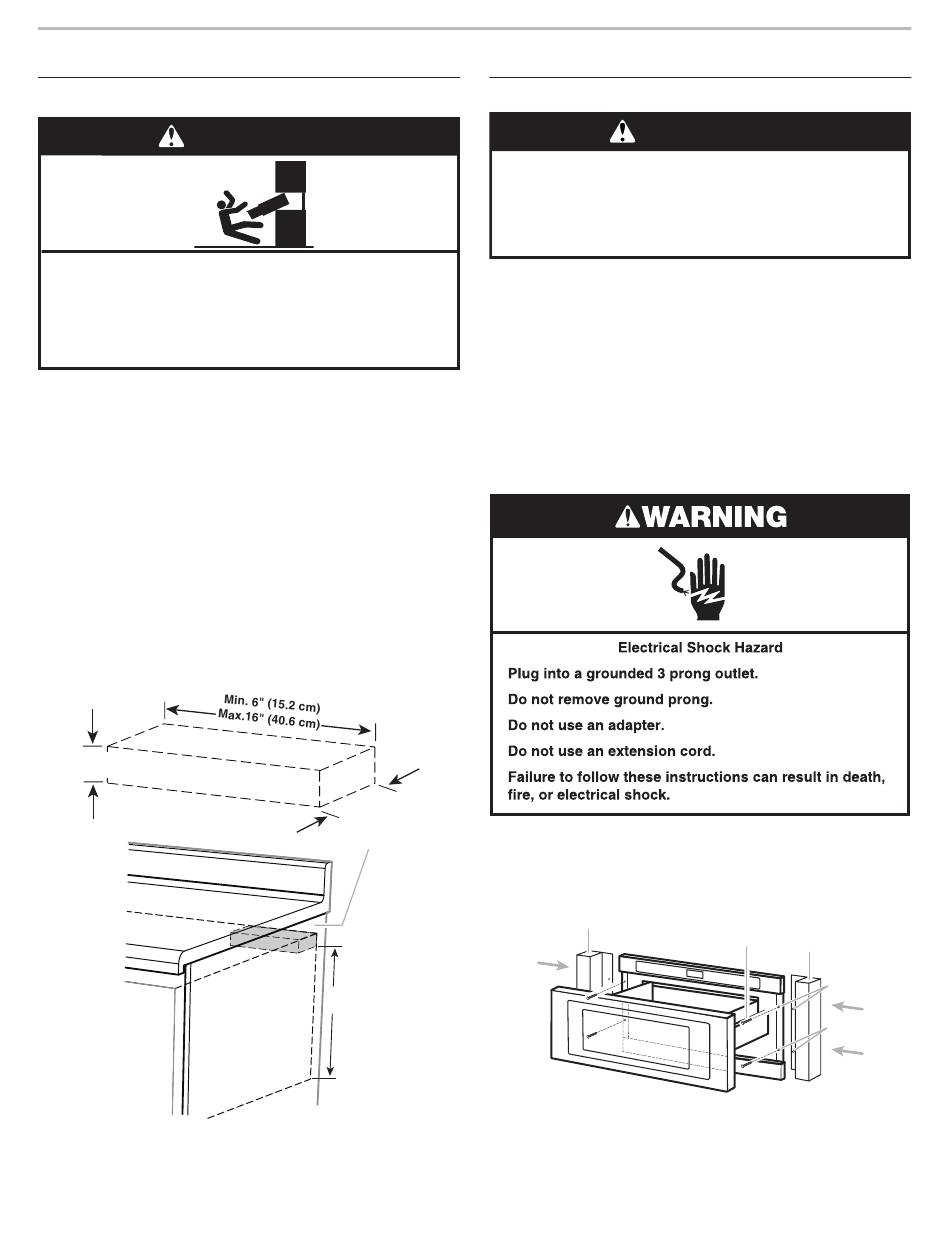

Install the Anti-Tip Block
WARNING
Crush Hazard
Microwave drawer can tip and fall out of opening.
Install anti-tip block to wall per installation instructions.
Failure to do so can result in serious injury or burns.
To reduce the risk of tipping of the drawer, the anti-tip block
must be properly installed located 14
floor on which the Microwave Drawer will sit. If the Microwave
Drawer is ever moved to a different location, the anti-tip block
must also be moved and installed.
1. Measure 14
/
" (37.6 cm) from the cutout floor where the
13
16
Microwave Drawer will sit and mark a line on the wall.
2. Position the bottom of the anti-tip block on the line marked
on the wall and attach the anti-tip block to the wall with
screws. Make sure the screws are secured to wood or metal
studs.
NOTES:
The anti-tip block is required before installing the Microwave
■
Oven Drawer.
The anti-tip block is to be provided by the installer.
■
When fastening, be sure that the screws do not penetrate
■
electrical wiring or plumbing.
Anti-Tip Block Dimensions.
1" (2.5 cm)
A. Anti-tip block
Using sturdy wood screws (installer to provide), securely install
the anti-tip block in the upper-right corner of the cutout, making
sure the block is completely stable. The bottom of the block
must be 14
13
/
" (37.6 cm) from the cutout floor.
16
INSTALLATION INSTRUCTIONS
/
" (37.6 cm) above the
13
16
"
¹⁄₂
3
(8.9 cm)
A
14
"
¹³⁄₁₆
(37.6 cm)
Install the Microwave Drawer
WARNING
Excessive Weight Hazard
Use two or more people to move and install
microwave oven.
Failure to do so can result in back or other injury.
1. Empty Microwave Drawer of any loose contents.
2. Using two or more people, slide Microwave Drawer all the
way into the opening, and center the Microwave Drawer.
3. Open the Microwave Drawer, and mark the four holes in the
mounting flange.
NOTE: The screw holes in the mounting flange of both sides
must be fully over the wood of the wall or cabinet.
4. Remove Microwave Drawer.
5. Using 1/8" (3.17 mm) drill, drill four pilot holes into the
cabinet through the marks made in Step 3.
6. Prepare the holes by installing a 1" (2.5 cm) screw in and out
of each pilot hole.
7. With the Microwave Drawer near the opening, plug the
Microwave Drawer into the grounded 3 prong outlet.
8. Reinsert Microwave Drawer into the opening, open the
drawer, and align holes in mounting flange with pilot holes in
the cabinet.
D
A. 1" (2.5 cm) mounting
screws (4)
B. Mounting flange screw holes
NOTE: For the 27"
(68.6 cm)
pieces holes with the front frame holes then push product into
opening. Then secure with the screws as instructed in step 9.
A
D
B
C
C. Mounting flange
D. Optional 27" (68.6 cm) Trim
Kit Parts
side trim kit, align the side trim
9
