PRESENTATION

INSTALLATION

Recommendations:
• Install the Diris Ap at least 30 cm
from a switching device (switch,
contactor, etc.)
• Avoid proximity to systems which
generate electromagnetic interfe-
rence
• Avoid vibrations with accelerations in
excess of 1 G for frequencies below
60 Hz.
SOCOMEC - Ref. : 875 510A

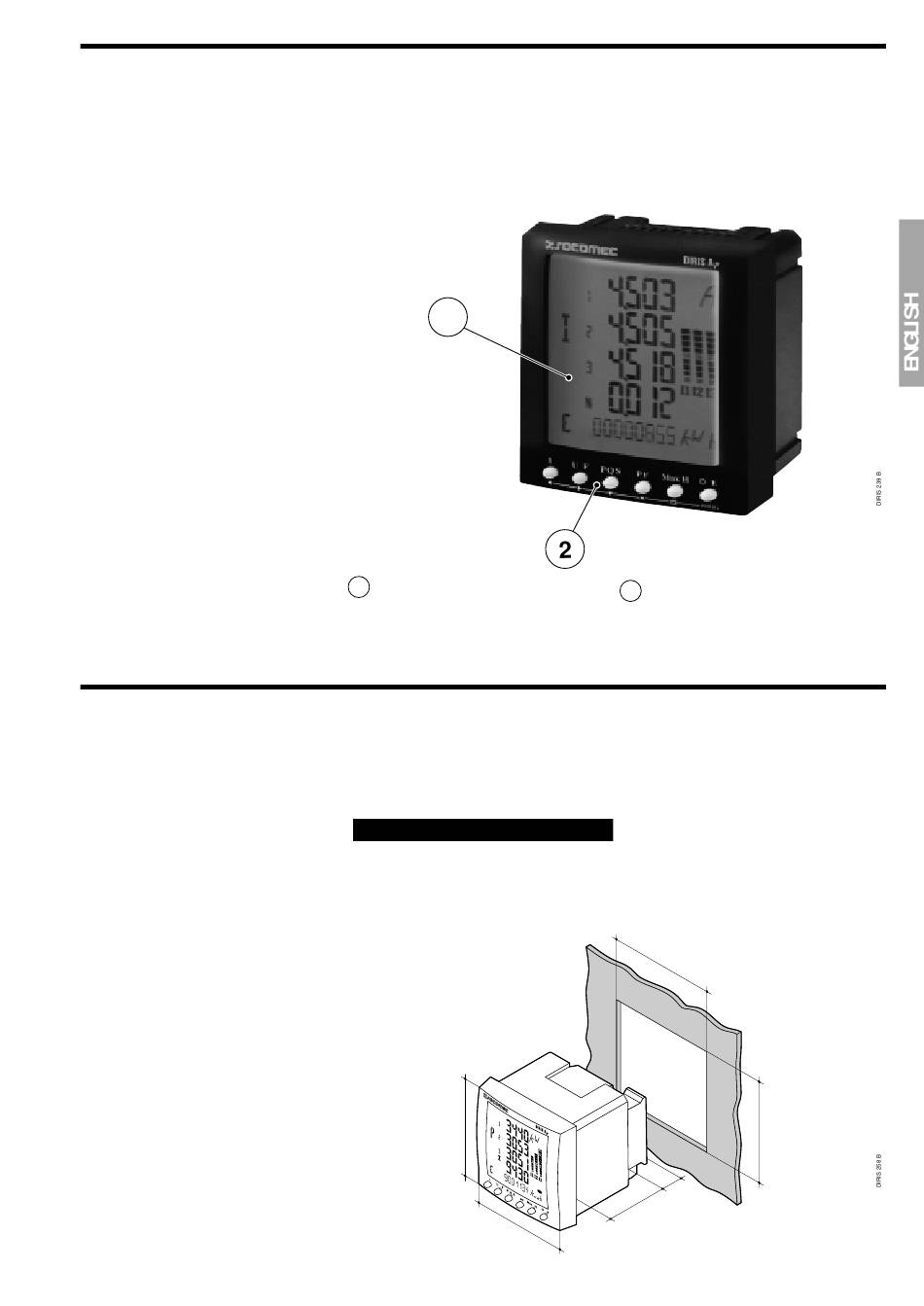

The Diris Ap is housed in a 96 x 96
flush-mounted case. The self-adjus-
ting display and 6 key key-pad make
it a truly user-friendly instrument.
1
1 LED display for
The Diris Ap is fitted on the front of a
control panel by means of 4 clips.
MECHANICAL ENVIRONMENT
To install the device properly, the cut-
out diagram given below must be fol-
lowed closely.
9 6
9 6
2 Key-pad with 6 dual-function keys
(display or programming)
9 2
+ 0
, 8
- 0
, 0
9 2
+ 0
, 8
- 0
, 0
2 0
6 0
33
