The monitor determines the deviation in percent between the input frequencies,
compares it with the set switch point (slip in %) and switches output 1 according
to the selected switching function.
f – f
IN2 IN1
slip = x 100 [%]
f
IN2
In conjunction with the integrated speed monitor for the drive IN2 and the switch-
ing output OUT2 the monitor enables monitoring
• of faults like rotational speed exceeded/not reached, blocking, overload or jam,
• of operational status like maximum or minimum rotational speed reached,
• or of defined slip/synchronous movement and frequency ranges.

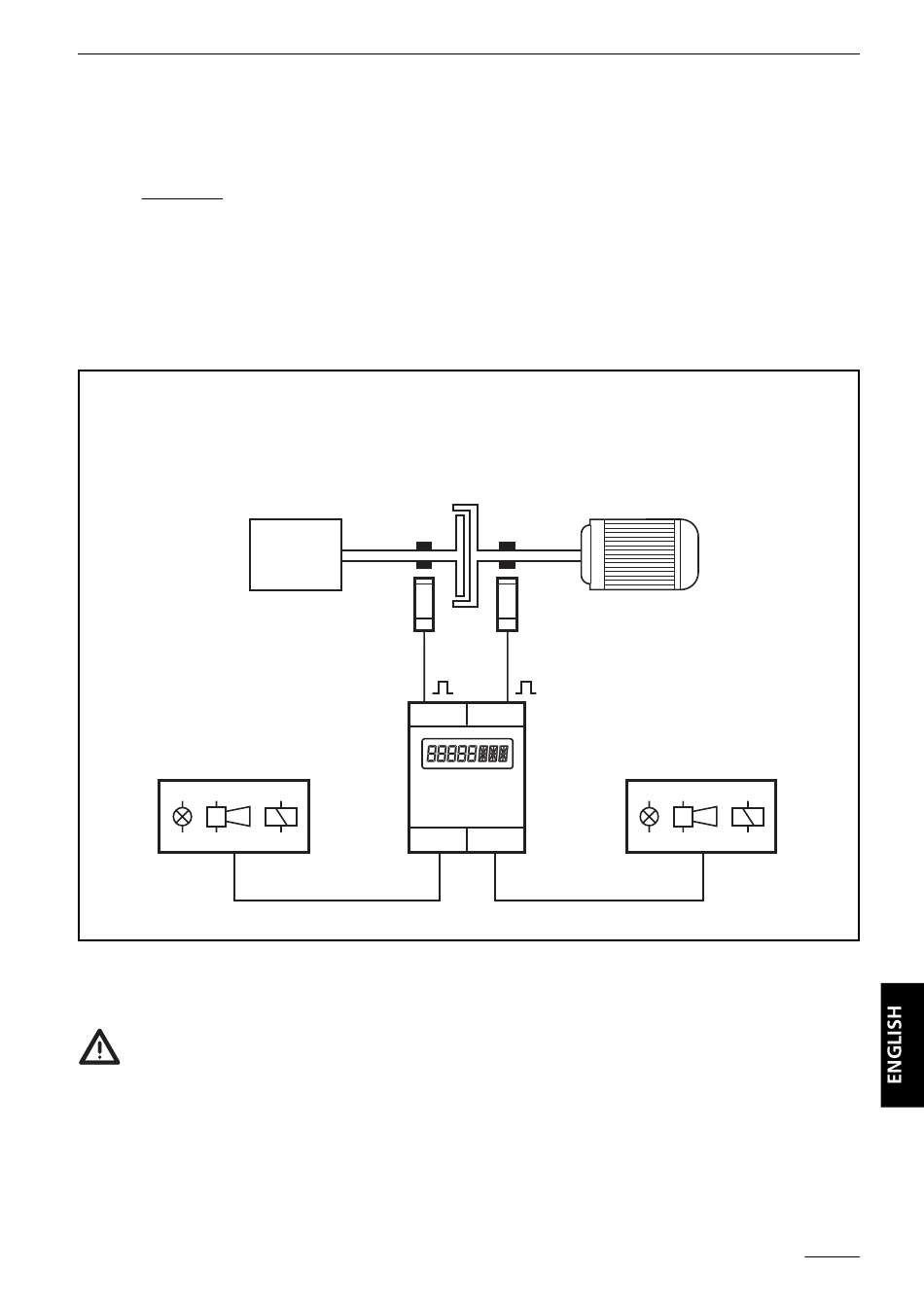

Example 2
Slip/synchronous monitoring
of a slipping clutch
power take-off (slave)
Abtrieb (Slave)
Meldung
Message
Schlupf oder Gleichlauf
Slip or synchronous movement
(IN 1 ≤ IN2)
IN1 ≤ IN2
During operation the frequency ratio IN 1 ≤ IN 2 is evaluated. The frequency ratio
IN 1 > IN 2 cannot be evaluated.
FS-1/FS-1N monitors have a one channel design. By means of an electrical
connection of the outputs of two or several units to achieve a redundant cir-
cuit, they can also be used for safety tasks. The applicable technical standards
must be adhered to.
clutch
Kupplung
IN1
IN 1
IN1
MONITOR
FS-1
OUT 1
Schaltausgang 1
switching output 1
drive (master)
Antrieb (Master)
IN2
IN2
Impulsgeber
pulse pick-up
IN 2
Drehzahlunter-/überschreitung
Rotational speed not reached/ex-
oder Gutbereich (IN 2)
ceeded or acceptable range (IN2)
OUT 2
Schaltausgang 2
switching output 2
FS-1 / FS-1N
MONITOR
Meldung
Message
