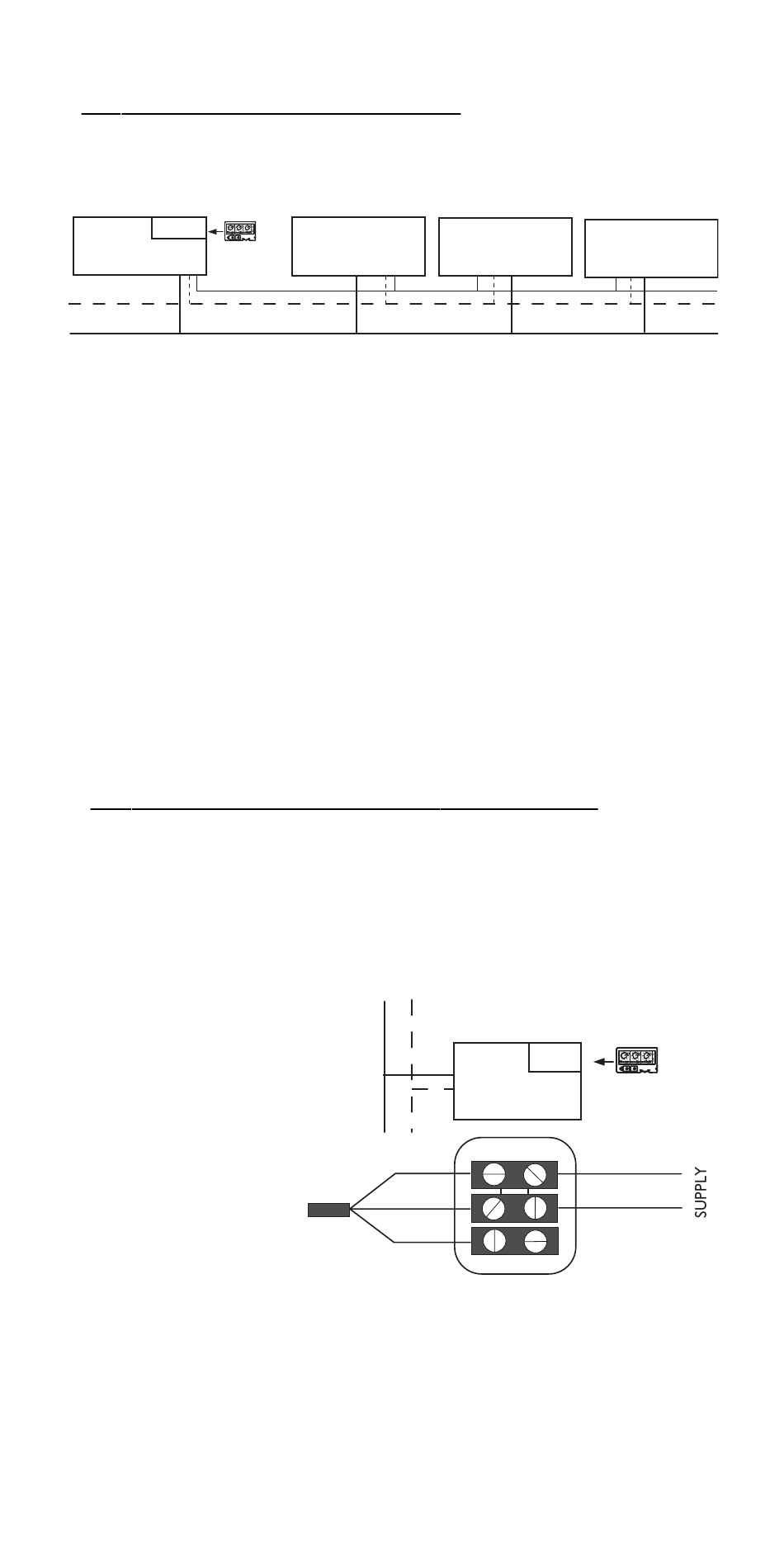

a- Your dwelling has a pilot wire
The appliance fitted with your interface and the programmer will
"control" all the units connected to it.
INTERFACE
MASTER
UNIT
N
L
Since rooms are occupied in different ways day and night, you
should create a day zone (for example, the master unit will be in
the Lounge and control the slave units in the Dining room, the
Kitchen and the entrance hall) and a night zone (for example, the
master unit will be in the master bedroom and will control the
slave units in the children's bedroom).
All the units linked to the "Master" unit will therefore receive the
same programming instructions and therefore constitute a single
programming zone.
WARNING:
Two interfaces must not be installed in the same programming
zone.
You must comply with the polarities for connecting the Live and
the Neutral on all the units in a zone (Blue=Neutral,Brown=Live).
b- Your dwelling does not have a pilot wire
You can programme unit by unit by fitting each unit in each of the
rooms concerned with an interface and a programmer: each unit
is then autonomous.
WARNING:
Even if your dwelling
does not have a pilot
wire, your appliance has
one. In this type of
installation, you must
connect the pilot wire
to a spare connection
block.
