CONTROL PANEL

EN

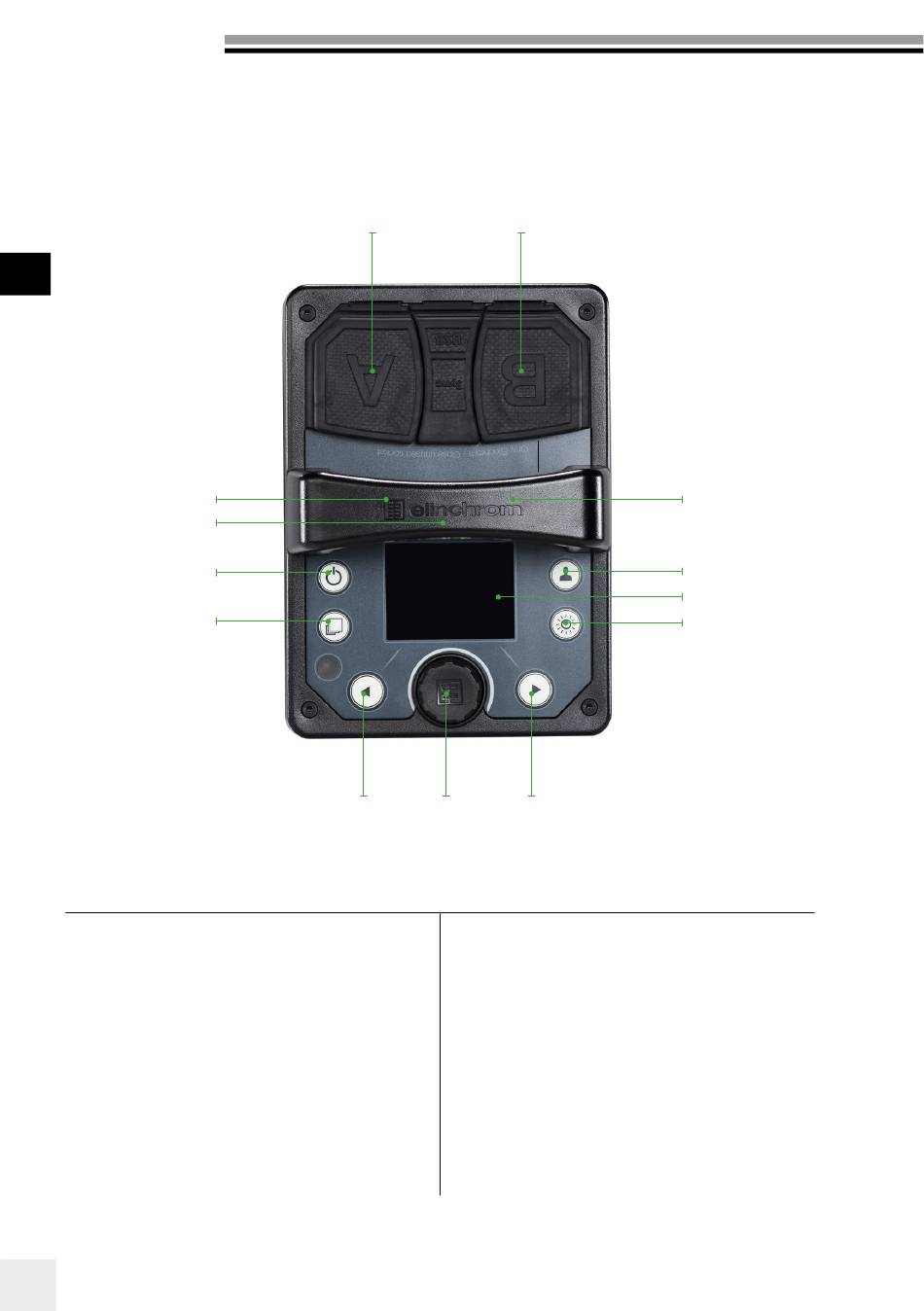

CONTROL PANEL FEATURES THE FOLLOWING
1. Outlet A
2. Outlet B
3. Outlet A on/off (located under the handle)
4. Power ratio between the outlets A and B
(66% : 33% or 50% : 50%), located under
the handle
5. Outlet B on/off (located under the handle)
6. Unit On /Off
7. Menu Access Button / Menu navigation
function
8. Left function button / Menu navigation
function / Power down by 1 F-stop
8
1
3
4
6
7
8
2
9 10
9. Scroll button (Menu navigation function ) /
Flash test (push) / power variation in 1/10th
10. Right function button / Menu navigation
function / Power up by 1 F-stop
11. LED Modelling Lamp Button : short push
(on/off) / long push (settings)
12. User setting button, toggle between
advanced and reduced display information
13. OLED Display
5
12
13
11
