BINDING AND UNBINDING A SELECTED BUTTON FROM A RECEIVER LOAD
By default the Wall Switch buttons are bound to the loads. On a single button switch, the button will be
bound to the wired load. On a two button switch, the top button #1 will be bound with Load #1, and the
bottom button #2 will be bound with Load #2. To change the default binding follow these steps:
Enter configuration mode by pressing and holding the "Configuration" Button "C" for
approximately 3 seconds and release:
• The green LED's on the Wall Switch should be ON to indicate it is now in Configuration mode.
• Load #1 should be ON, and Load #2 (if using a two button switch) should be OFF.
• Use the Configuration mode button to select the buttons to bind or unbind from the loads (if using
a two button switch).
• Press the "Configuration" Button "C" once, Load #1 should now be OFF, and Load #2 should be ON.
• Continue pressing the Configuration button "C" to select the load to bind or unbind.
• By pressing the switch button you can toggle the button from being bound or unbound to the load
that is currently ON.
• A bound button should have a solid blue LED ON while an unbound button should have a dim
Blue LED ON.
• To exit configuration mode, press and hold the Configuration Button "C" for 3 seconds until the
green LED's turn OFF.
IMPORTANT: Loads can only be bound one at a time.
NOTE: A single switch button can be bound with 2 loads, or two switch buttons can be bound with a
single load. You can have a load bound to one button, both buttons or no buttons.
There is no restriction on how the button can be bound to loads. For example, button #1 can be
bound to Load #2 and button #2 can be bound to Load #1 using a two switch button. A single switch
button can also be bound to more than one load. All buttons may also be unbound from the loads for
applications where it is desired to disable the buttons from controlling the loads. Note, that if this is
desired, the switch can still control the loads by the use of a remote device or the use of the EOPC-
100 Occupancy Sensor.
To return units to factory default settings on all Wall Switch Receivers: Press and hold Configuration Button "C" for 10 seconds until all
the LEDs of "T" and "O" are blinking 3 times, then turn off.
NOTE: Please verify that unit is in normal mode prior to resetting to factory default.
LOAD PARAMETER DEFAULTS
The EOSW-101 Defaults to Manual On/Auto OFF.*
The EOSW-102 Defaults to Auto On 50% / Auto OFF
Auto-OFF is enabled according to the sensor Time Delay when a sensor is paired to the load, regardless of the loads time delay or
whether the load was turned on automatically with occupancy or manually using a switch. When occupancy is no longer detected and
the time delay has expired the load will shut off.
TIME DELAY DEFAULTS
Load 1: Time Delay "T" = 15 minutes
Load 2: Time dalay "T" = 15 minutes
Does the system work more reliably at close range (without obstructions)?
In an indoor environment, the wireless controls have a typical range of 30-150 feet. If there are obstructions and/or noise interference
the range will be less than the typical range.
Consider Factors Affecting the Environment:
The range can be reduced by metal objects (metal decreases the effectiveness of RF transmission). Switches also go into a reduced
range mode when in programming (under 15 feet)
• Identify nearby metal, concrete and other objects possibly affecting signal strength
• If possible, try relocating the device (even slightly) away from obstructions to improve the system performance.
Does the system work better at certain times of the day?
• Look for pieces of equipment that may affect wireless performance when they are ON
• Noise interference can be either line noise (from motors) or Radio Frequency (RF)
Load does not turn ON or OFF:
• If load does not shut off automatically, enter configuration mode to check settings for the load (if in manual mode switch to auto
mode). If you cannot switch then sensor is not paired to load.
• If load does not turn on/off from remote switch, check pairing of the switch to the load. (See pairing devices.)
• If the above steps do not resolve the problem call technical support at: 800.879.8585.
RESET UNITS TO FACTORY DEFAULT SETTINGS
TROUBLESHOOTING
4

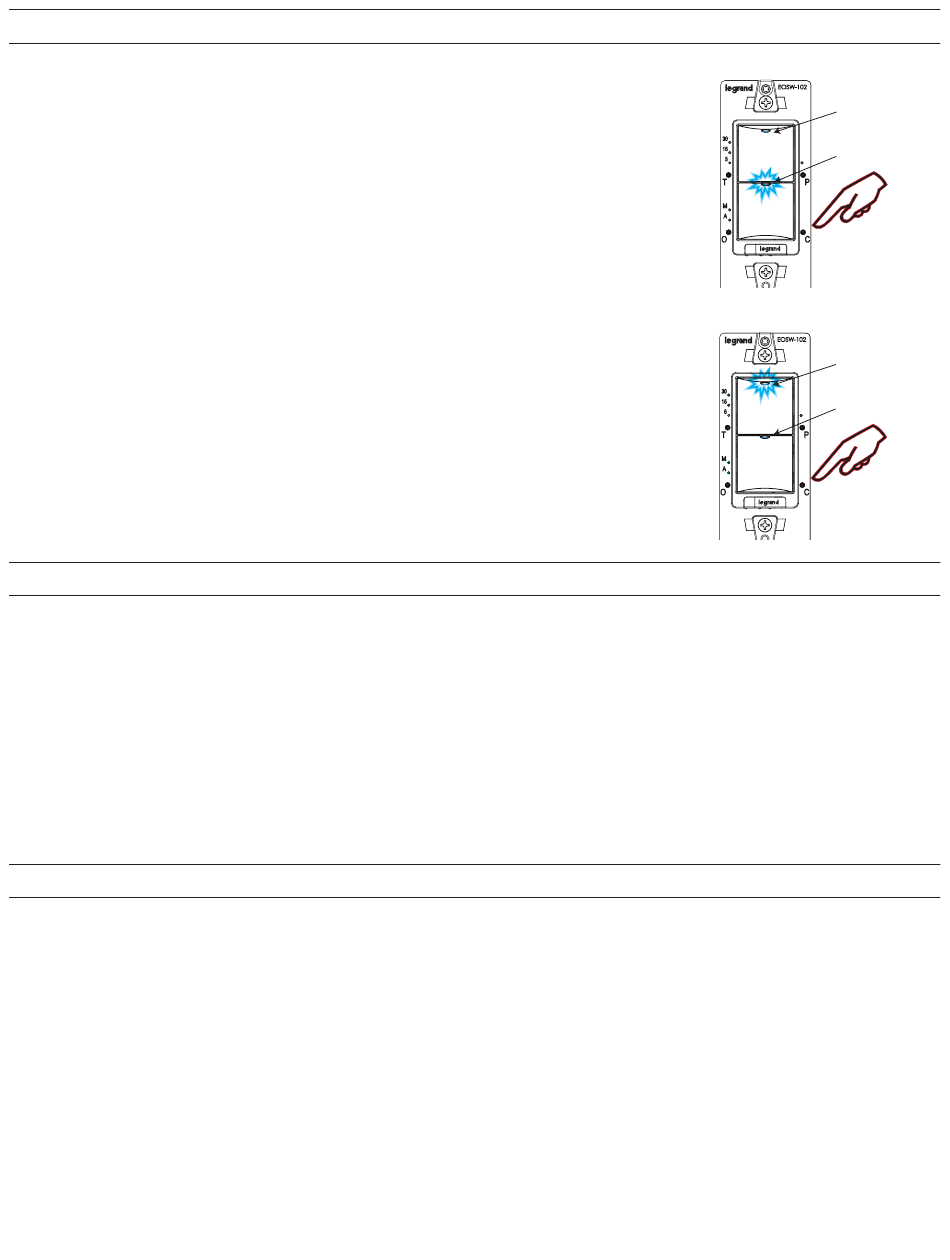

EOSW-102 Series
"Load 1 Status"
Blue LED Off
"Load 2 Status"
Blue LED On
Configuration
Button
EOSW-102 Series
"Load 1 Status"
Blue LED ON
"Load 2 Status"
Blue LED Off
Configuration
Button
