H.Koenig SWR32 Manuel D'utilisation page 9

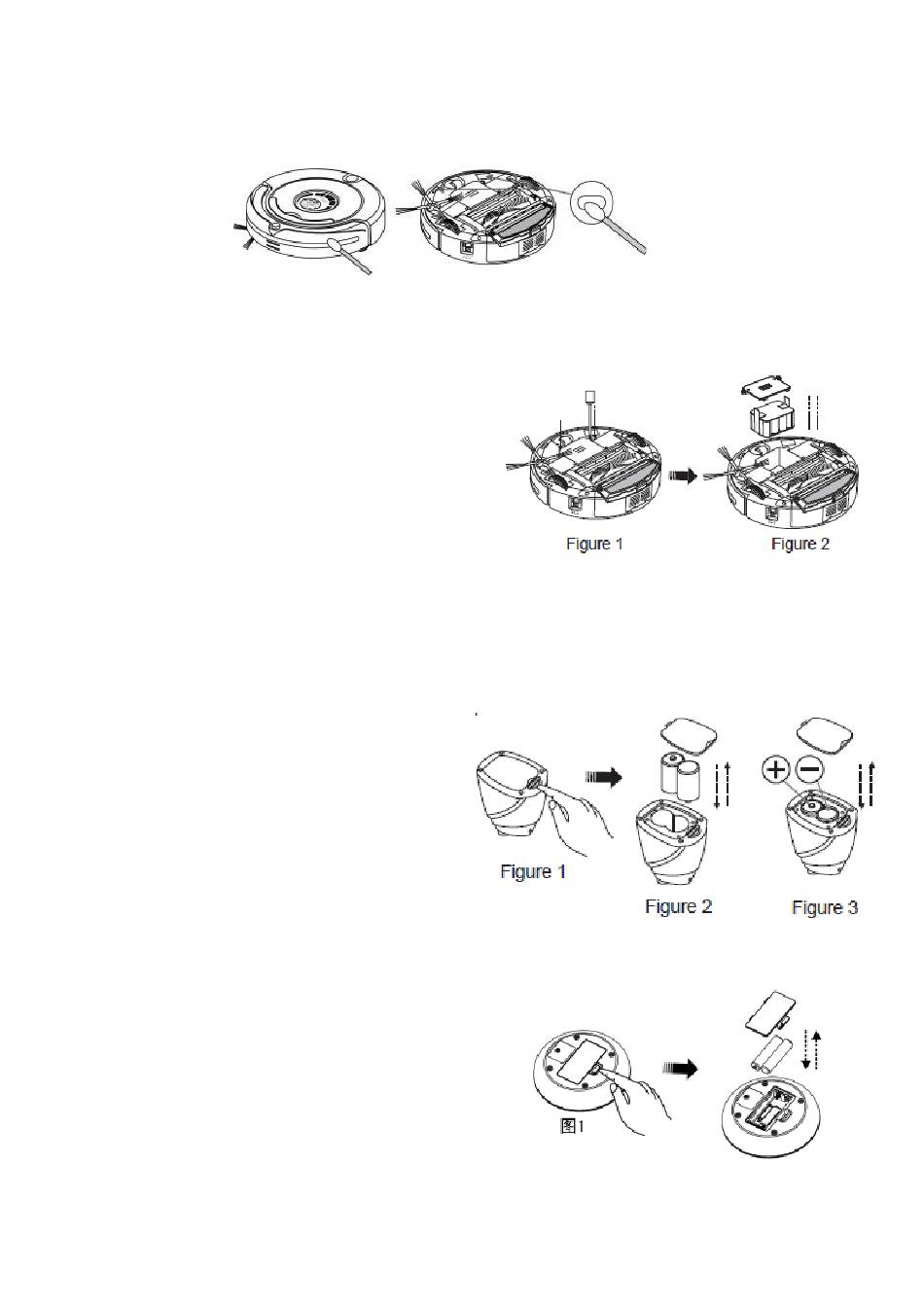

Cleaning of sensor and infrared transparent window :
1. Clean the sensor and infrared transparent window with the cotton swab or soft cloth.
2. The wall detection sensor is in front of the cleaner, while the ground detection sensor and infrared
transparent window are at the bottom of the cleaner.
3. Please keep the transparent window clean so as to make the robot work better.
Replacement of battery :
Battery replacement of the cleaner :
1. Release the screw with a screwdriver,
open its base plate.
2. Connect two terminals during battery
installation.
3. Place the positive and negative poles
correctly for fear of the damage due to
wrong poles.
4. Set the cleaner in charging status to keep
the best performance of the battery while
the cleaner is not in use.
5. Ensure using the original battery of the
manufacturer for installation, otherwise
there may be damage or accident.
Battery replacement of the space isolator :
1. Spin the pivot as per figure 1 and the cover will
open.
2. Please place the batteries (not included) with
correct polarity (=/-)
3. The right place of battery (Figure 3)
4. Please take out the battery if it was unused for
long.
Battery replacement of the remote control :
1. Open the battery cover and then replace the battery.
2. Please place the batteries (not included) with correct
polarity.
3. Please take out the battery if it was unused for long.
