Locator features
1.
Keypad.
2.
LCD with auto backlight.
3.
Speaker.
4.
Battery compartment.
(Optional Lithium-Ion battery pack).
5.
Accessory connector (Not used).
6.
Headphone connector.
7.
Mini USB-B port
(inside battery compartment).
Locator keypad
8.
Power key.
9.
Up arrow key.
10. Down arrow key.
11. Backlight sensor.
12. Frequency key.
16
17

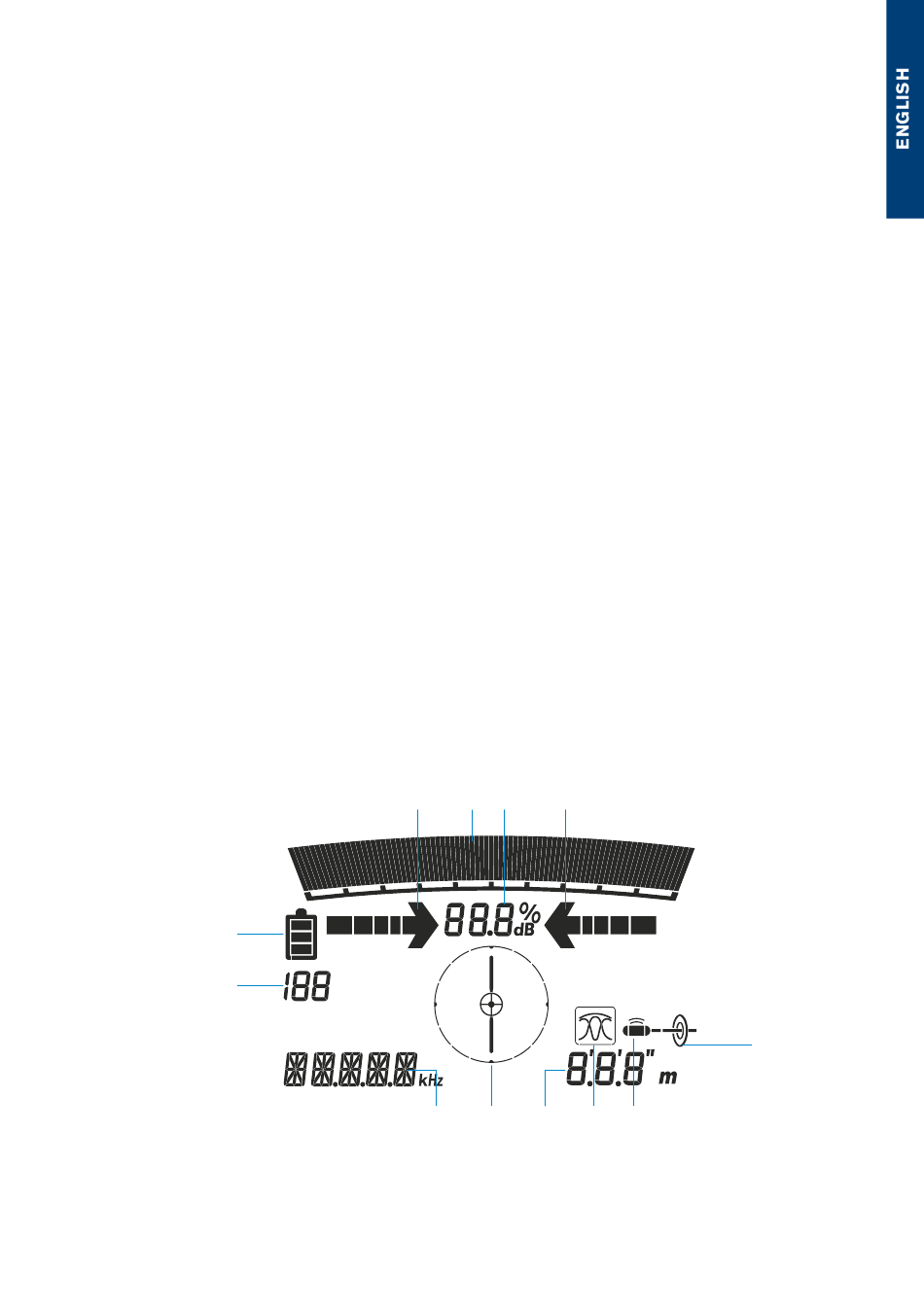

Locator screen icons
13. Signal strength bargraph with
peak marker.
14. Signal strength readout.
15. Proportional Guidance arrows.
16. Battery level.
17. Sensitivity readout.
18. Frequency readout.
19. Sonde icon: Indicates that a sonde
signal source is selected.
20. Compass: Shows the orientation
of the located sonde relative
to the locator.
21. Antenna mode icon:
Indicates antenna mode selection:
Guidance / Peak+.
22. Line icon: Indicates that a line signal
source is selected.
23. Depth readout, metric or imperial
(configuration dependent).
15
13 14
15
18
20
23
21
5
22
19
