V12H870001
Replacing SMART i3 & i4 Systems
1.
Turn projector upside down on a flat surface.
2.
Place four spacers (D) over the threaded inserts in the
bottom of the projector.
3.
Place the interface bracket (J) [with "C" markings visible]
onto the bottom of the projector, aligning the mounting holes
in the bracket with the spacers and threaded inserts in the
bottom of the projector, and ensuring that triangle in bracket
points towards screen, and lines up with center of the
projector lens. (See Figure 1)
4.
Place four M4 x 16mm flat head cap screws (C) into the
mounting holes marked as "
into the threaded inserts.
5.
Tighten all fasteners, securing the bracket to the projector.
(Projector not shown)
5
(D)
(Example only - attachment
holes vary per projector)

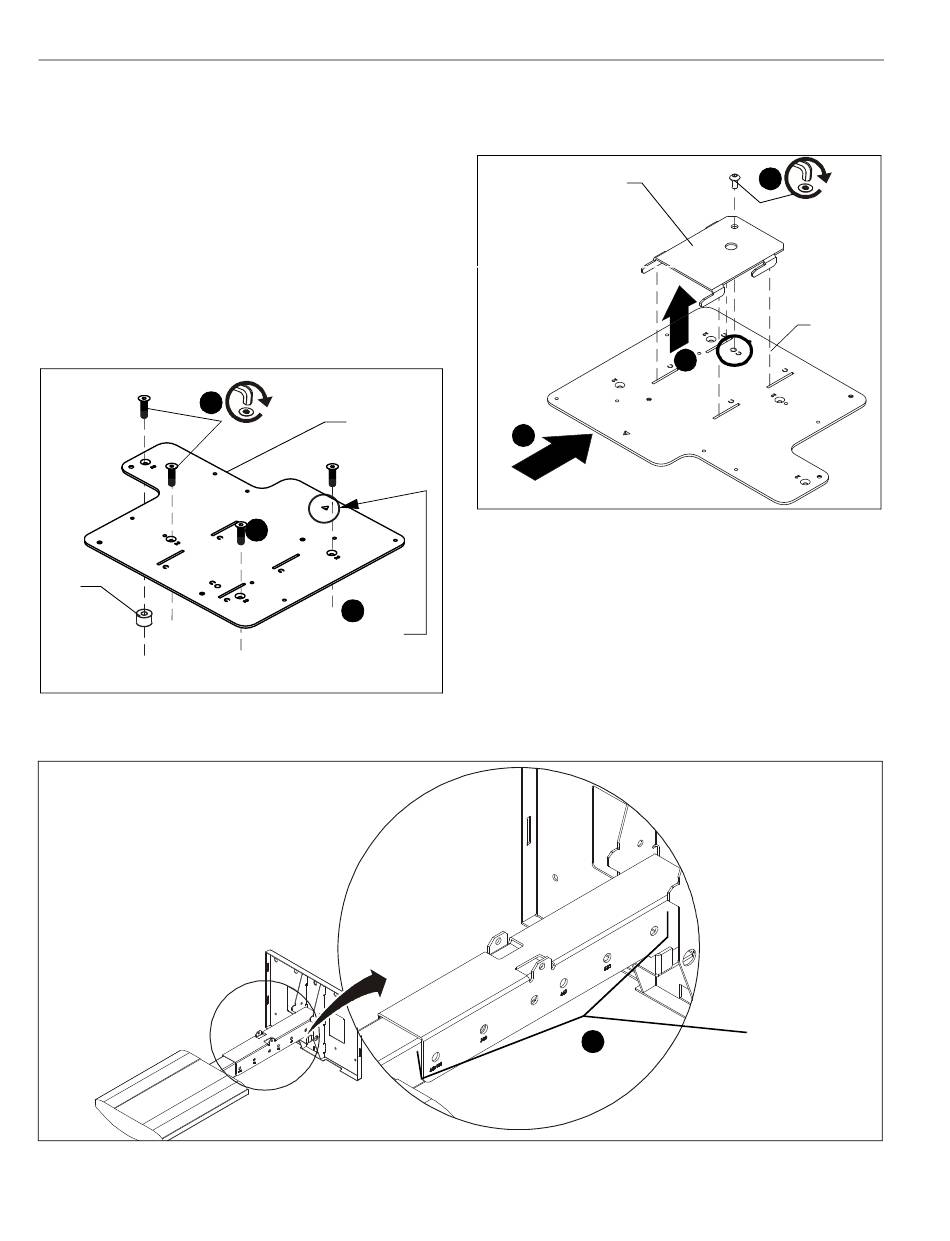

Figure 1
6
2
", through the spacers (D) and
(C) x 4
(J)
4
3
Triangle toward
screen and lined
up with center
of projector lens
6.
Lift interface bracket (J) with Epson projector up to end of
the existing SMART Board boom arm, and slide interface
bracket slots (marked as "
SMART Board
boom arm (remainder
of arm not shown)
6
(Projector not shown)
7.
Fasten interface bracket (J) to end of SMART Board boom
arm through hole marked as "
button head cap screw (A). (See Figure 2)
8.
Adjust SMART Board boom arm to correct location
according to projector model and SMART Board model, and
following information in Table 1.
9.
Fasten SMART Board boom arm in place using hardware
provided with SMART Board projector arm system. (See
Figure 3)
2
3
4
5
6
9
Figure 3
Installation Instructions
C
") onto hooks. (See Figure 2)
7
(J)
6
Figure 2
C
" using one 1/4-20 x 1/2"
1
Attachment
holes
(A) x 1
