V12H870001

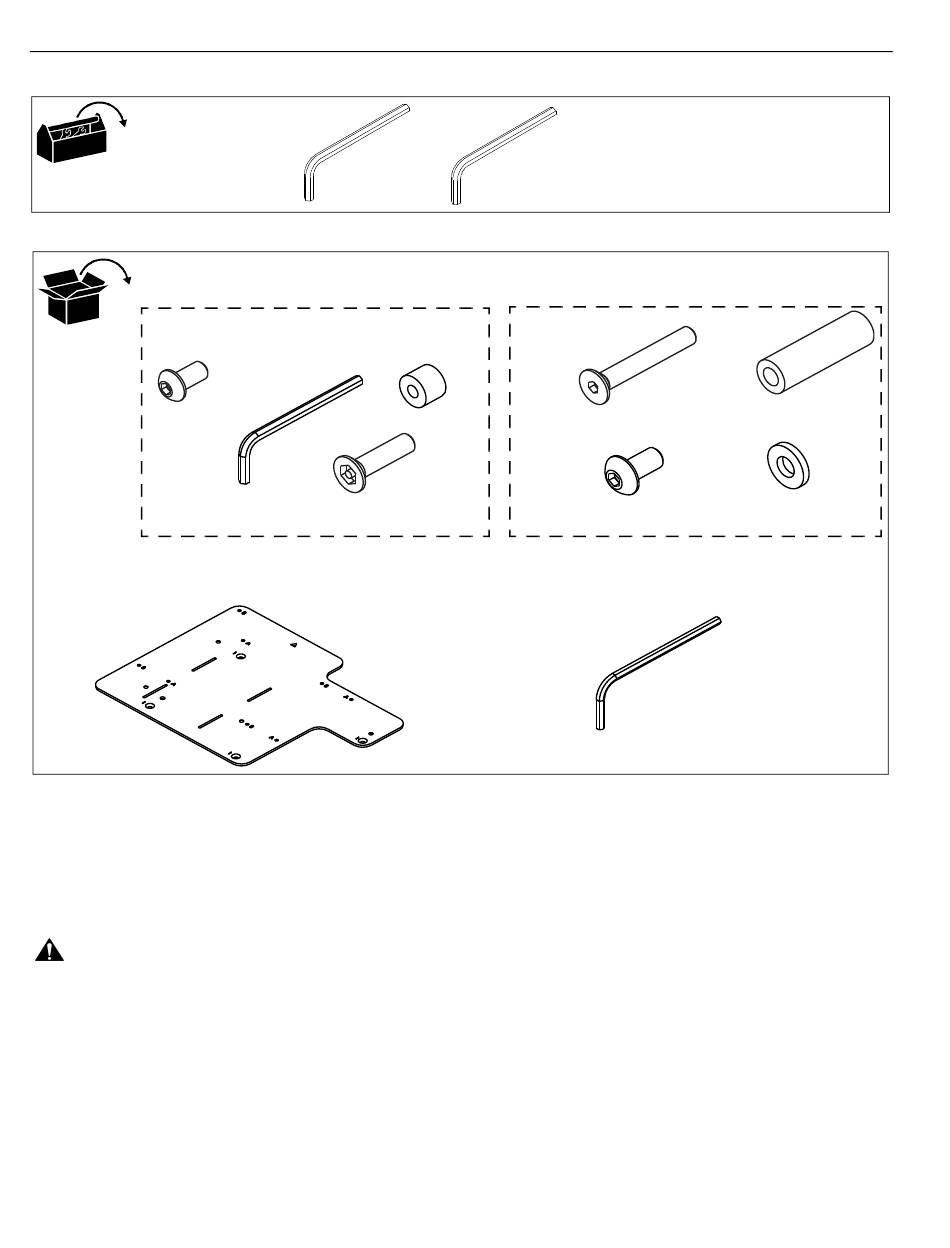

TOOLS REQUIRED FOR INSTALLATION
PARTS
UF55/UF55W/UF65/UF65W Hardware Kit
A (1)
1/4-20 x 1/2"
J (1)
[Interface bracket]
INSTALLATION
WARNING:
OVER TIGHTENING OF SCREWS CAN
DAMAGE PARTS AND MAY LEAD TO SERIOUS
PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO
NOT over tighten screws when installing interface
bracket.
IMPORTANT ! :
Line up the triangle on the interface bracket
(J) with the center of the projector lens to match up with the
correct mounting hole pattern. The interface bracket (J) may be
flipped over to accommodate all required mounting hole
patterns.
4
5/32"- security
(included)
.500 x .194 x .375"
B (1)
C (4)
5/32"
M4 x 16mm
(security)
M2.5
(included)
UF70/UF70W/UF75/UF75W Hardware Kit
E (4)
D (4)
M4 x 35mm
IMPORTANT ! : Proceed to Replacing SMART i3 & i4
Systems, Replacing SMART i5 Systems (UF75/
UF75W), or Replacing SMART i5 Systems (UF70/
UF70W) section to complete installation of V12H870001.
Installation Instructions
F (4)
.313 x .166 x 1.00
G (4)
M4 x 8mm
K (1)
(M2.5)
H (4)
(M4)
