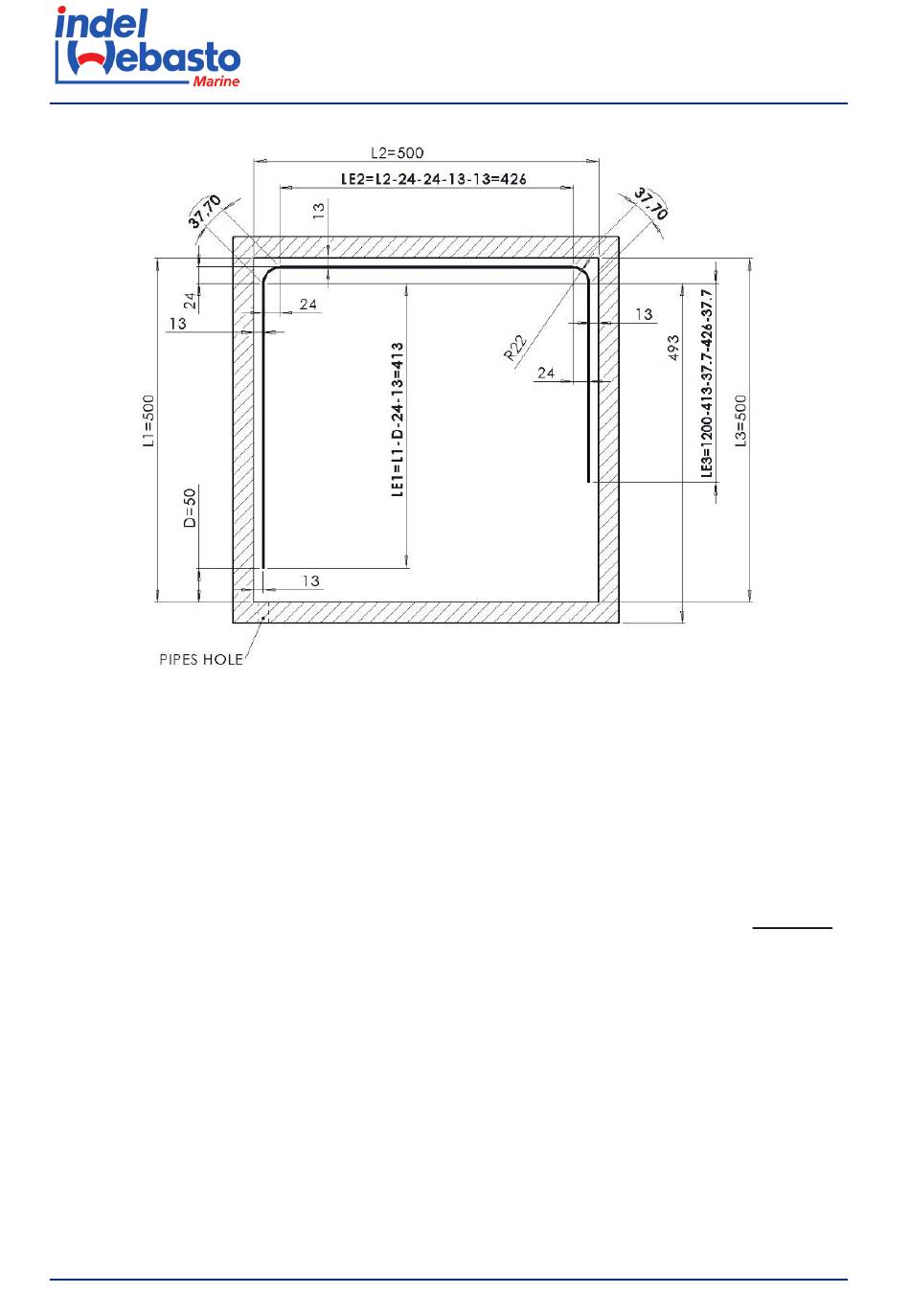

Figure 6: Example of distances to maintain to create folds on the evaporator
5. Both the suction hose and the small capillary hose should be rolled up carefully
before installing the evaporator, keeping the protective covers on connections
as long as the connection is not going to be made. Starting from the inside of
the compartment to be cooled, lay the hose with its two connections through
the hole made previously on the bulkhead until reaching the compressor,
making sure not to crush or choke the hose. The excess hose must be carefully
wound in a spiral (Ø = 30 cm) before being fastened to thus prevent resulting
vibration or noise. These actions must be completed before removing
quick coupling protections. The hole on the unit wall must be sealed with
polyurethane foam or with insulating material.
6. Assemble the bending tool (SGH00008AA) on a work bench and fasten it with
two screws so that it remains stationary during bending operations.
