Step 2 Connecting devices and this unit

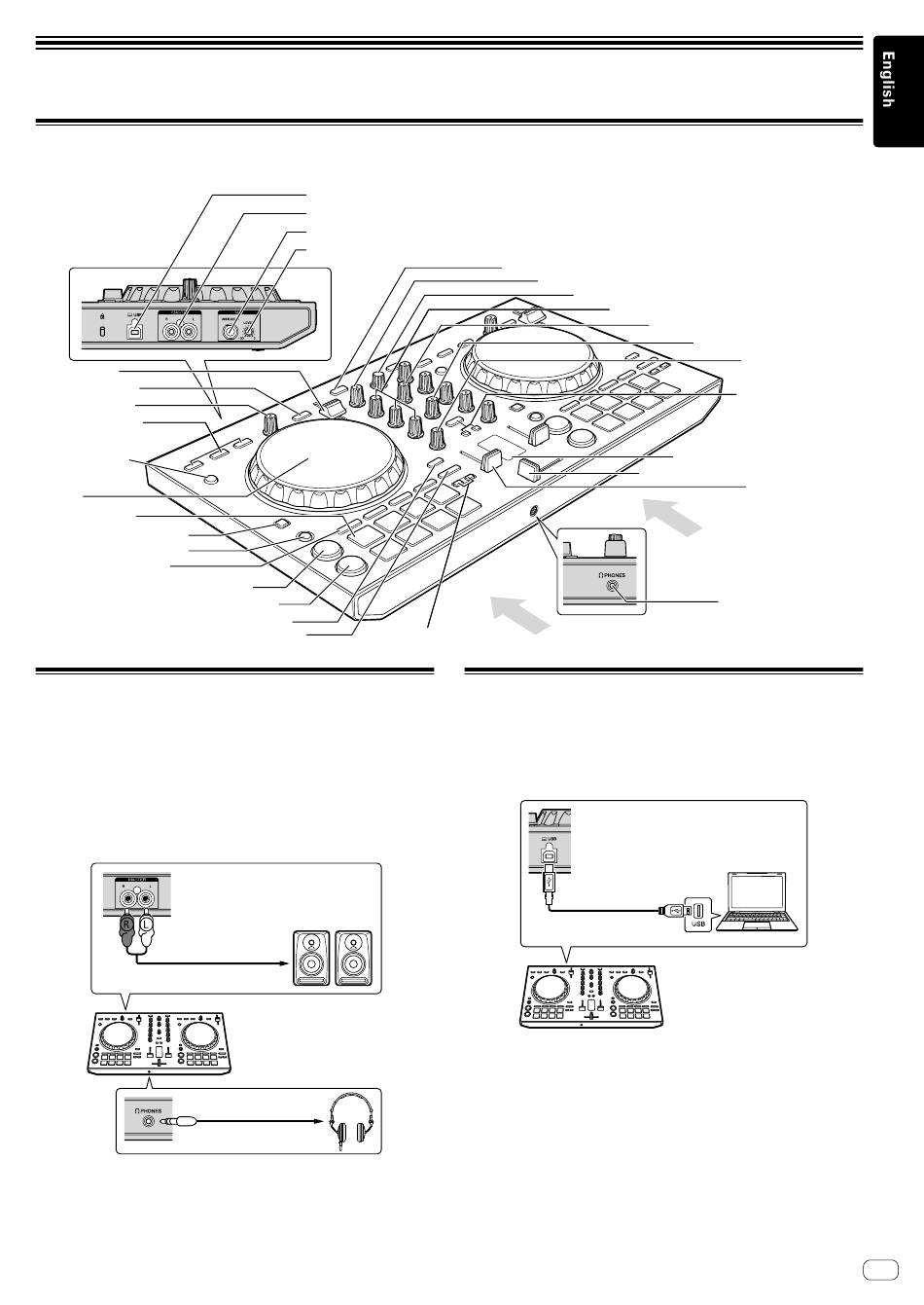

Names of Parts

For details, see the Operating Instructions of this unit.
TEMPO slider
KEY LOCK button
FX LEVEL control
FX ON/OFF button
DECK switching
button
Jog dial
Performance pad
SHIFT button
SYNC button
Pad mode select button
CUE button
PLAY/PAUSE f button
AUTO LOOP button
Connecting speakers with a built-in
amplifier to the unit with an audio
cable (RCA)
Connect speakers with a built-in amplifier, powered
speakers, etc. to the [MASTER] output terminals of this
unit.
• An audio cable (RCA) is not included with this unit. Please provide it
yourself separately.
Speakers with a built-in amplifier,
powered speakers, etc.
Earphones/headphones
• Connect earphones/headphones to the [PHONES] output terminal.
For details on connecting the input/output terminals, see the
Operating Instructions of this unit.
• Turn the volume of the device(s) (speakers with a built-in amplifier,
powered speakers, etc.) connected to the [MASTER] output terminals
to an appropriate level. Note that the output sound may be loud if the
volume is set too high.
USB terminal
MASTER output terminals
MIC input terminal (1/4" TS jack) *Supported unbalanced input only
MIC LEVEL control *When not using a microphone, turn the volume to the minimum level.
VINYL button
LOOP beat change button
LOAD button
TRIM control
Rotary selector
EQ (HI/MID/LOW) controls
Deck 1
(left)
Connecting your computer to the
unit
1 Connect your computer to the unit via a USB cable.
Make a direct connection with the supplied USB cable for optimum
performance. A USB hub cannot be used.
USB cable (supplied)
2 Turn on your computer.
3 Turn on the device(s) (speakers with a built-in
amplifier, powered speakers, etc.) connected to the
output terminal.
MASTER LEVEL control
HEADPHONE LEVEL control
FILTER control
HEADPHONES
CUE MASTER/1/2
select button
CHANNEL LEVEL indicator
Crossfader
Channel fader
Deck 2
(right)
PHONES output terminal
(3.5 mm stereo mini jack)
Computer
