RYMASKON 200 - Modbus

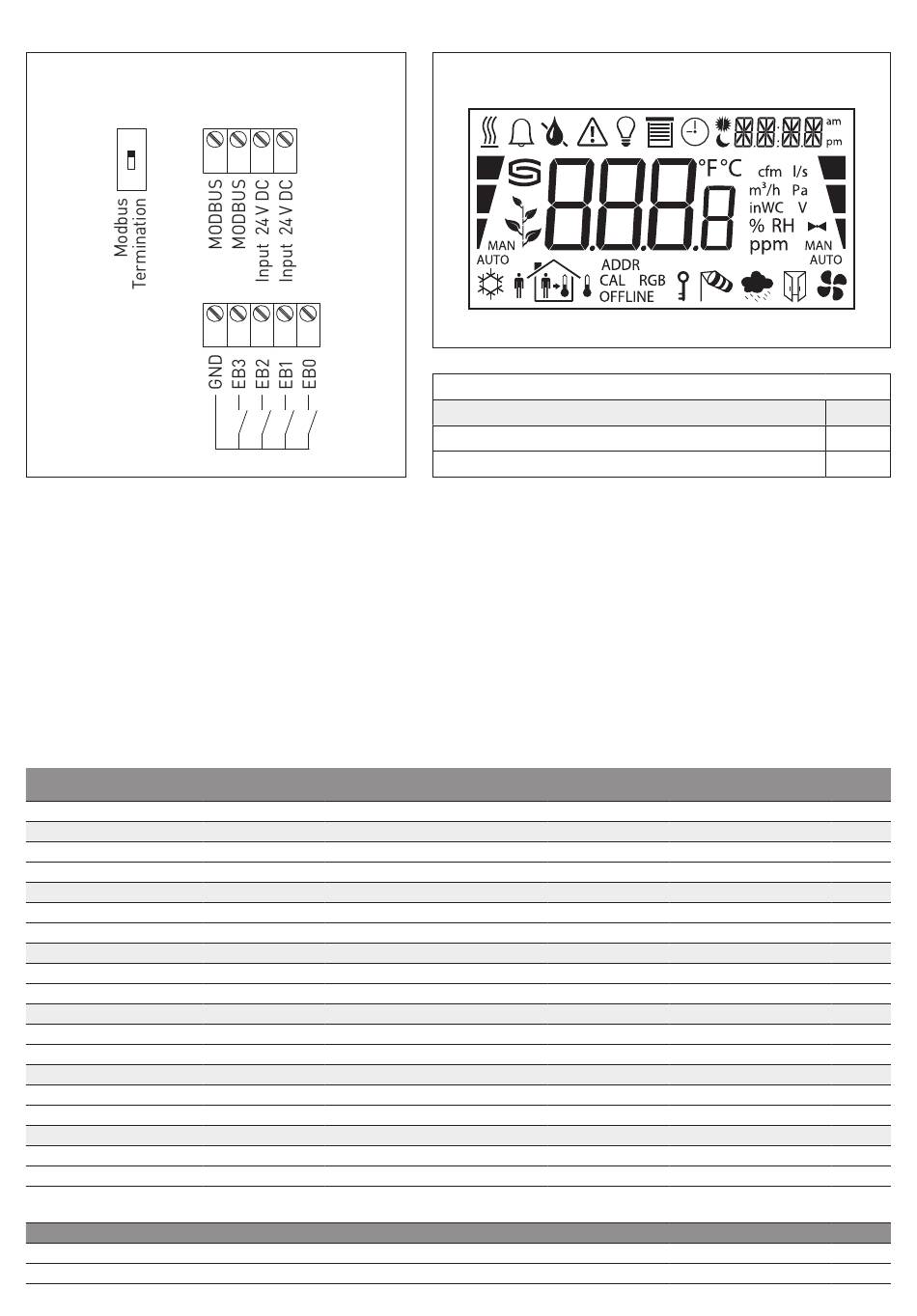

Connecting diagram
DIP
ON
1
IMPORTANT NOTE: No Reverse Polarity Protection!
It is mandatory to ensure a correct connection.
Polarity reversal will destroy the device.
®
RYMASKON 200 - Modbus Room control unit for room automation
Type ⁄ WG02
®
RYMASKON 210 - Modbus
RYMASKON 211
RYMASKON 212
®
RYMASKON 220 - Modbus
RYMASKON 221
RYMASKON 222
®
RYMASKON 230 - Modbus
RYMASKON 231
RYMASKON 232
®
RYMASKON 240 - Modbus
RYMASKON 241
RYMASKON 242
®
RYMASKON 250 - Modbus
RYMASKON 251
RYMASKON 252
®
RYMASKON 260 - Modbus
RYMASKON 261
RYMASKON 262
Control:
ACCESSORIES
KA2 -Modbus Communication adapter (USB/RS485) for system connection
LA -Modbus Line termination device (with terminating resistor) as an active bus termination
RYMASKON 200
– + – +
1 2 3 4
9 8 7 6 5
Communication Buttons
RS485, NFC, NEC 4
RS485, NFC, NEC 4
RS485, NFC, NEC 6
RS485, NFC, NEC 6
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
T = Temperature V = Ventilation
S = Sun protection L = Light
Display symbols
DIP Switch
RS 485 bus termination
activated (default)
deactivated
Control Colour
T | – | – | – | R | M black
T | – | – | – | R | M white
T | V | – | – | R | M black
T | V | – | – | R | M white
T | V | – | L | R | M black
T | V | – | L | R | M white
T | – | S | L | R | M black
T | – | S | L | R | M white
T | V | S | – | R | M black
T | V | S | – | R | M white
T | V | S | L | – | M black
T | V | S | L | – | M white
R = Room occupancy
M = Menu
RYMASKON
RYMASKON
Display Item No.
■ 1901- 5111- 3011-001
■ 1901- 5111- 3012- 001
■ 1901- 5111- 3011- 002
■ 1901- 5111- 3012- 002
■ 1901- 5111- 3011- 003
■ 1901- 5111- 3012- 003
■ 1901- 5111- 3011- 004
■ 1901- 5111- 3012- 004
■ 1901- 5111- 3011- 005
■ 1901- 5111- 3012- 005
■ 1901- 5111- 3011- 006
■ 1901- 5111- 3012- 006
1906- 1200- 0000- 100
1906-1300- 0000- 100
Rev. 2021 - V14
®
200 - Modbus
®
200 - Modbus
DIP 1
O N
OFF
