4. ASSEMBLY:

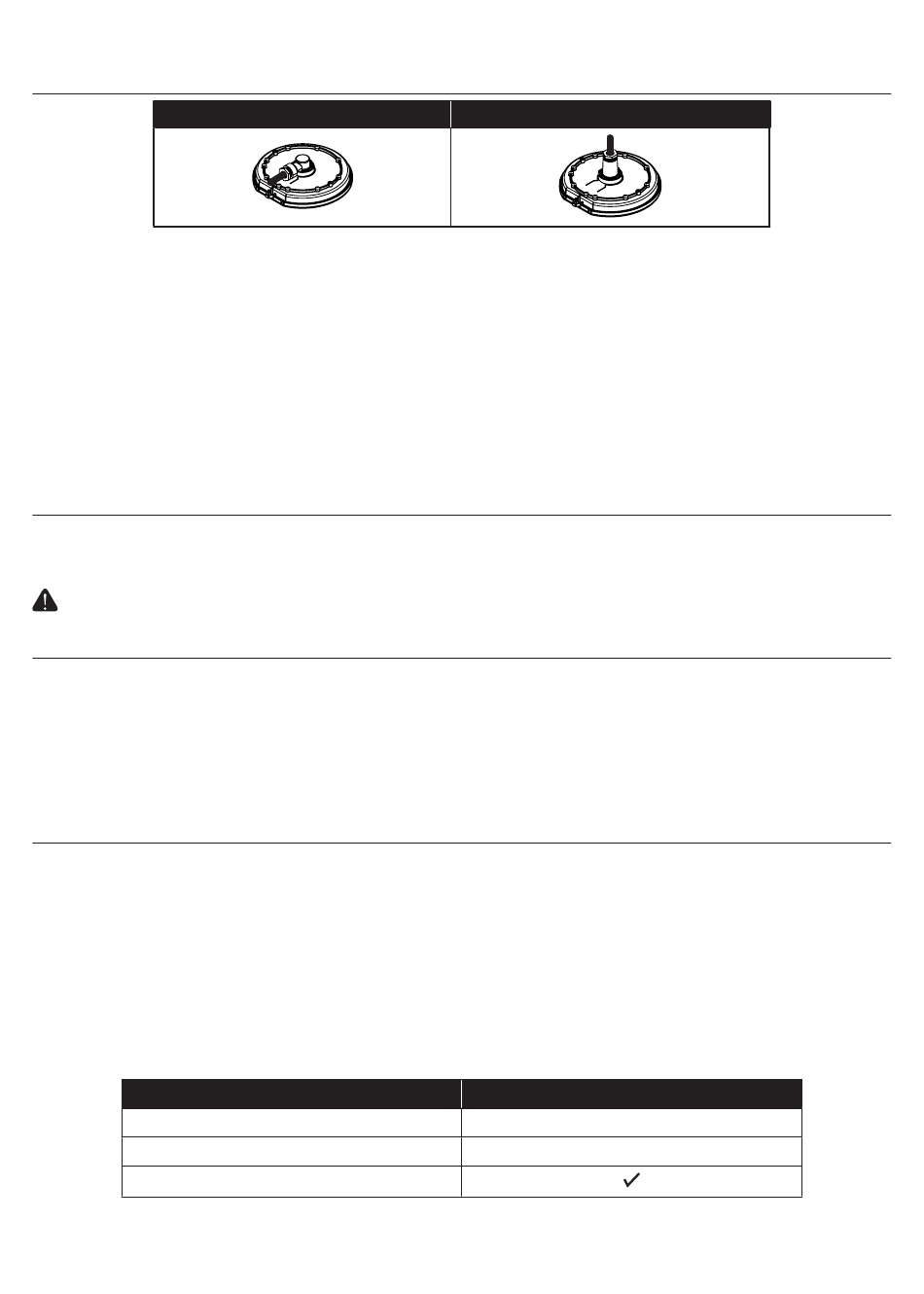

LumiPlus FlexiSlim (See page 14)
A description is given below of how to connect the LumiPlus Flexi to the cable to ensure the connection area is water-
tight. It is important to follow these steps:
1. Ensure that there is no voltage before handling any cable.
2. Put the O-ring seal in place.
3. Thread the cable through the cable gland seal nut.
4. Connect the cable to the spotlight and tighten the two screws.
5. Fit the cable gland to the body of the projector, as shown. Then screw in the three screws.
6. Ensure that the cable sleeve remains in place in the connection area and then tighten the cable gland using a wrench
(6Nw).
7. Ensure that that cable is firmly tightened so that it does not work loose from the cable gland.
8. Once connected, the projector can be fitted to the pool (see faceplate manual).
5. MAINTENANCE:
The LumiPlus Flexi does not require any maintenance. If you become aware that it is not working properly, please
contact our customer service department.
DO NOT ATTEMPT TO HANDLE THE INSIDE OF THE SPOTLIGHT AS THE PRODUCT WARRANTY WILL NO
LONGER BE VALID.

6. ELECTRICAL CONNEXION

For the LumiPlus Flexi to work properly, it must have a 24 Vdc power supply. LumiPlus Flexi is supplied with a 2.5 meter
2
2 x 1 mm H07RN-F cable. Should this be too short, it can be replaced by another cable (see page 19). Should the
original cable be replaced or extended, a specific calculation must be made of the cross-sections for each installation
to ensure a 24-volt power supply reaches the LumiPlus Flexi and to prevent voltage drops.
The DC monocolor spotlights connect directly to the power pack supplied. It does not require any type of control device.
It can only be used to switch the projector On and Off. See page 18.

7. SAFETY WARNINGS:

• Avoid making contact with the electric voltage.
• Comply with the current standards regarding accident prevention.
• In this regard, the IEC 364-7-702 standards must be observed: WIRING IN BUILDINGS SPECIAL WIRING SWIM-
MING POOLS.
• All maintenance operations should be performed with the LumiPlus Flexi disconnected from the mains.
• Do not handle with wet feet.
• LumiPlus Flexi is designed TO BE USED ONLY SUBMERGED IN WATER and TO OPERATE ONLY WITH A SAFETY
TRANSFORMER.
• LumiPlus Flexi withstands to the treatments of swimming pool described next as long as the values of concentration
do not surpass the following values:
Chlorine
Bromine
Salt electrolysis (Na Cl)
Attention : Please note that the Ph of pool water always must be between 7.2 and 7.6.
TYPE OF TREATMENT
LumiPlus FlexiNiche / FlexiRapid (See page 16)
CONCENTRATION IN WATER
2 mg/l
5 mg/l
