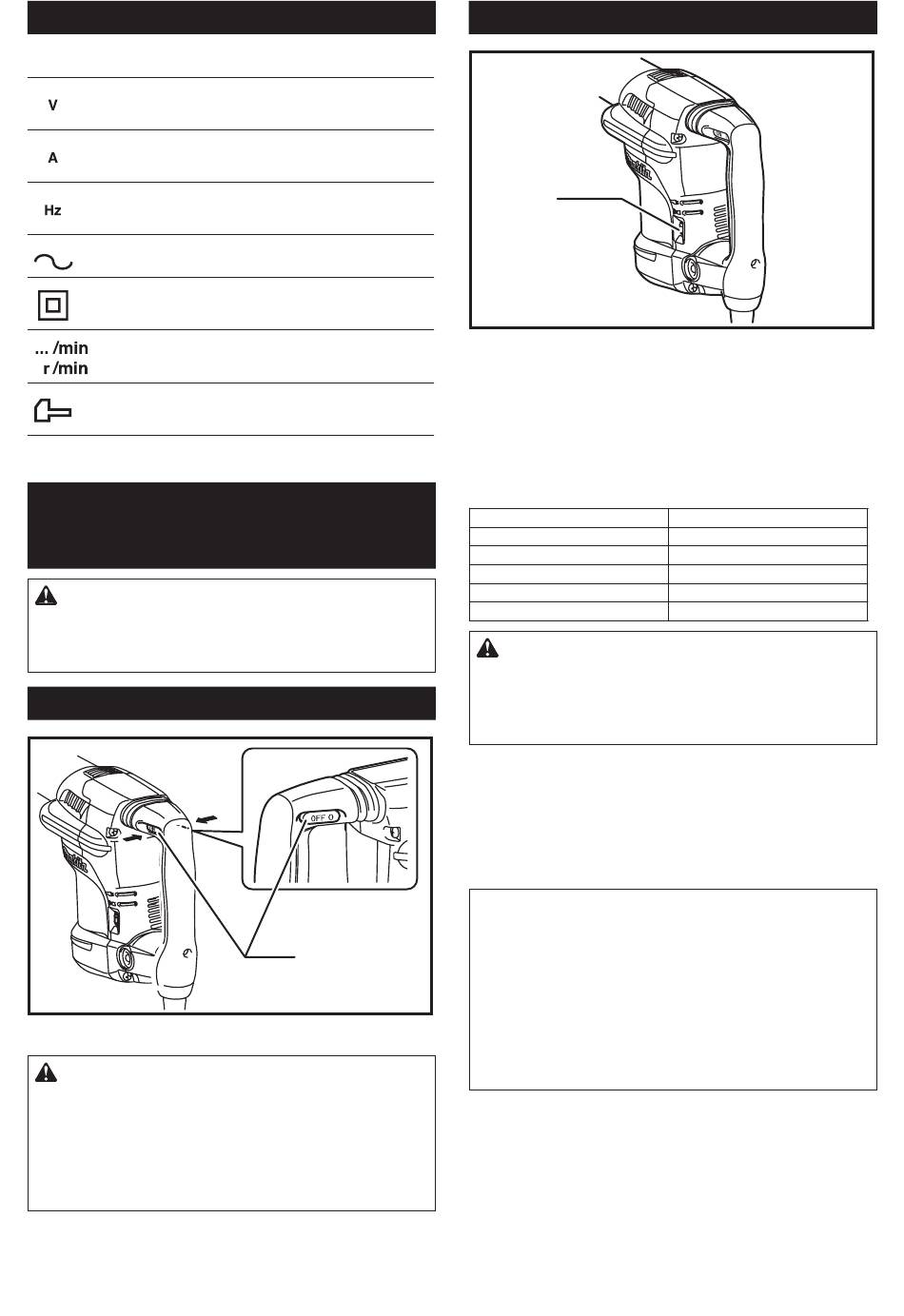

Symbols
The followings show the symbols used for tool.
volts
amperes
hertz
alternating current
Class II Construction
revolutions or reciprocation per minute
number of blow
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.
Switch action
OFF
ON
► 1. Switch lever
CAUTION:
• Before plugging in the tool, always check to see
that the tool is switched off.
• Switch can be locked in "ON" position for ease
of operator comfort during extended use. Apply
caution when locking tool in "ON" position and
maintain firm grasp on tool.
To start the tool, push the switch lever "ON (I)" on the
left side of the tool. To stop the tool, push the switch
lever "OFF (O)" on the right side of the tool.
► 1. Adjusting dial
The blows per minute can be adjusted just by turning
the adjusting dial. This can be done even while the tool
is running. The dial is marked 1 (lowest speed) to 5 (full
speed).
Refer to the table below for the relationship between
the number settings on the adjusting dial and the blows
per minute.
For Model HM0871C only
1
4 ENGLISH

Speed change

1
Number on adjusting dial
5
4
3
2
1
CAUTION:
• The speed adjusting dial can be turned only as
far as 5 and back to 1. Do not force it past 5 or
1, or the speed adjusting function may no longer
work.
NOTE:
• Blows at no load per minute becomes smaller
than those on load in order to reduce vibration
under no load, but this does not show trouble.
Once operation starts with a bit against con-
crete, blows per minute increase and get to the
numbers as shown in the table. When tempera-
ture is low and there is less fluidity in grease,
the tool may not have this function even with the
motor rotating.
Blows per minute
2,650
2,400
1,750
1,300
1,100
