Functional Description And Specifications - Skil 9325 Instructions D’utilisation Et De Sécurité

SM 1609929C20 2/03
WARNING
!
measures reduce the risk of starting the tool accidentally.
GRINDING
WHEEL
Model number
Max. wheel diameter
Spindle thread
Max. wire wheel
Max. wire cup brush
Max. sanding disc
Max. cut off wheel
Max. dry diamond wheel
Downloaded from www.Manualslib.com
2/12/03 4:14 PM Page 6

Functional Description and Specifications

Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety

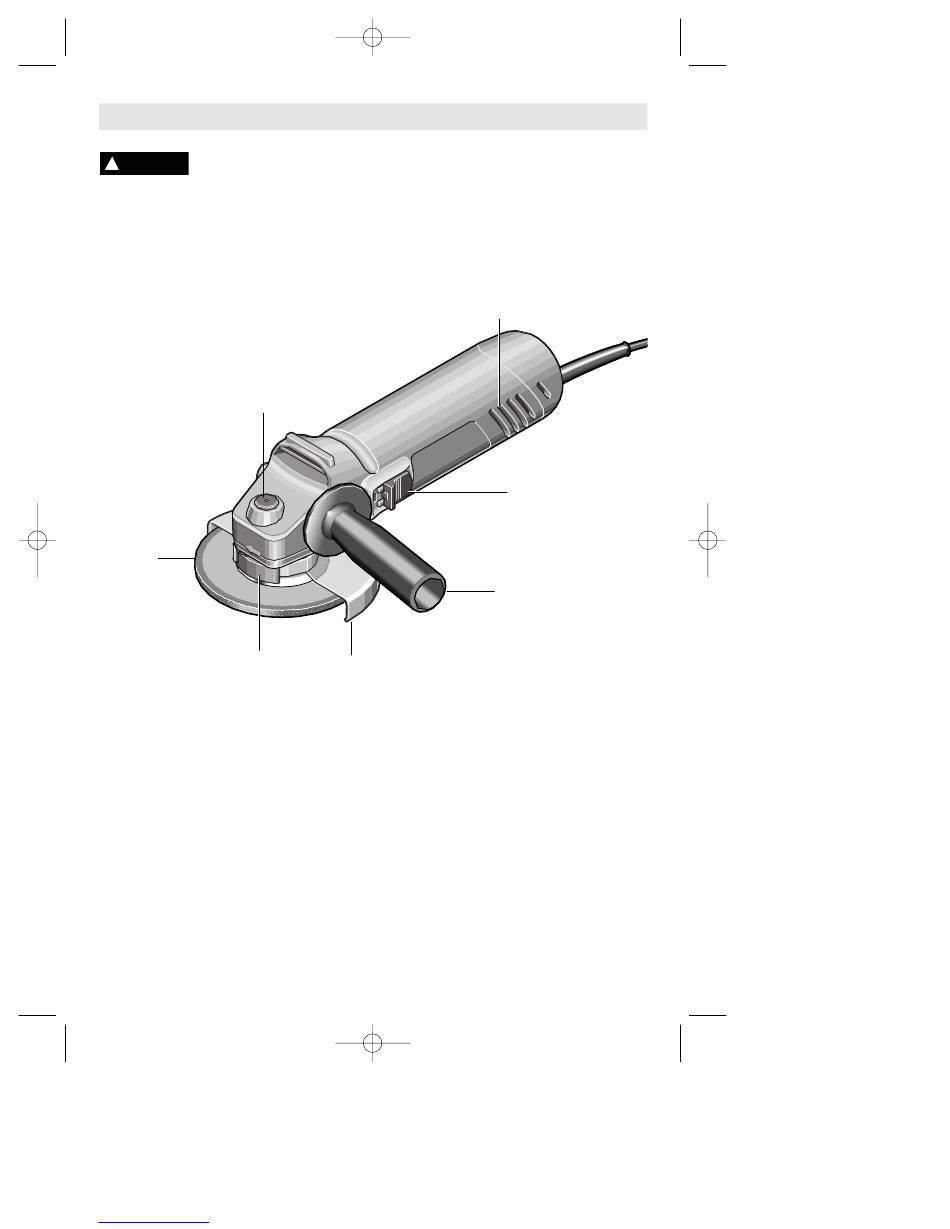

Angle Grinders
SPINDLE LOCK
GUARD
WHEEL
RELEASE / LOCK
GUARD
LATCH
9320
4 1/2" (115mm)
5/8"-11 UNC
4" Dia.
3" Dia.
4 1/2" Dia.
4 1/2" Dia.
4 1/2" Dia.
NOTE: For tool specifications refer to the nameplate on your tool.
-6-
