Quick Reference Guide
Adapter
MPI/DP connector
RS232 connector

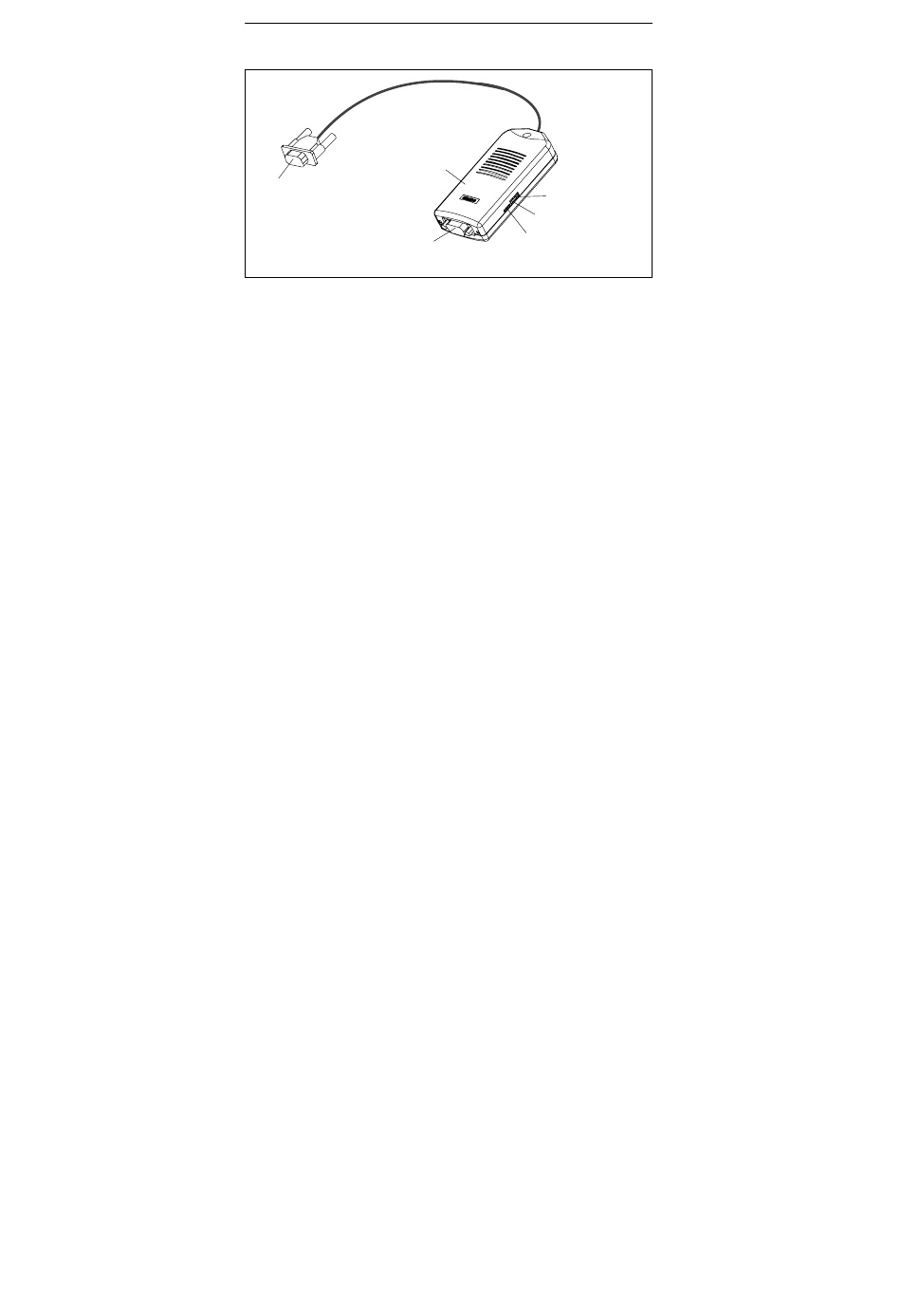

Figure 1-3 Adapter
The two adapter types differ with respect to the location of the
MPI/DP parameters:
S
The MPI/DP parameters for the PC adapter are set in
"Set PG/PC interface". When opening an online display
for the first time, the parameters are transferred to the PC
adapter.
S
The MPI/DP parameters for the TS adapter are set via a
TeleService application and stored permanently on the
TS adapter. When opening an online display for the first
time, these parameters are activated.
PC/TS Adapter
A5E00078070-03
PC/TS Adapter
LED "POWER"
LED "ACTIVE"
Switch
"19.2/38.4 kbps"
3
