Yakima Ruggedline HD Tacoma Mode D'emploi
Liens rapides
Use these instructions instead of the instructions that came inside your LNL product carton.
TOOLS REQUIRED
4 mm hex or torque wrench
10 mm socket wrench or spanner
13 mm socket wrench or spanner
10 mm closed wrench
plastic pry tool
INCLUDED TOOLS
T30 Torx wrench
5 mm ball end overmold wrench
Pour le français, aller à la page 9.
Instruction #21000248A - Page 1 of 14
exacto knife
Ruggedline HD Tacoma
AVAILABLE ACCESSORIES
LockNLoad Jerry Can Holder #8005038
LockNLoad Spare Wheel Holder #8005032
LockNLoad Corner Bracket Kit #8005036
High Lift Jack Holder #8005033
This Ruggedline system is designed to
carry 220 lbs on or off road. Due to vehicle
driving dynamics and roof structure Yakima
recommends you do not exceed your vehicle
manufacturer stated maximum roof load.
✓ Yakima SkyRise™ compatible
Para español ir a la página 9.
(Fits 4th Generation Toyota Tacoma)
LOAD CAPACITY
Manuels Connexes pour Yakima Ruggedline HD Tacoma
Sommaire des Matières pour Yakima Ruggedline HD Tacoma

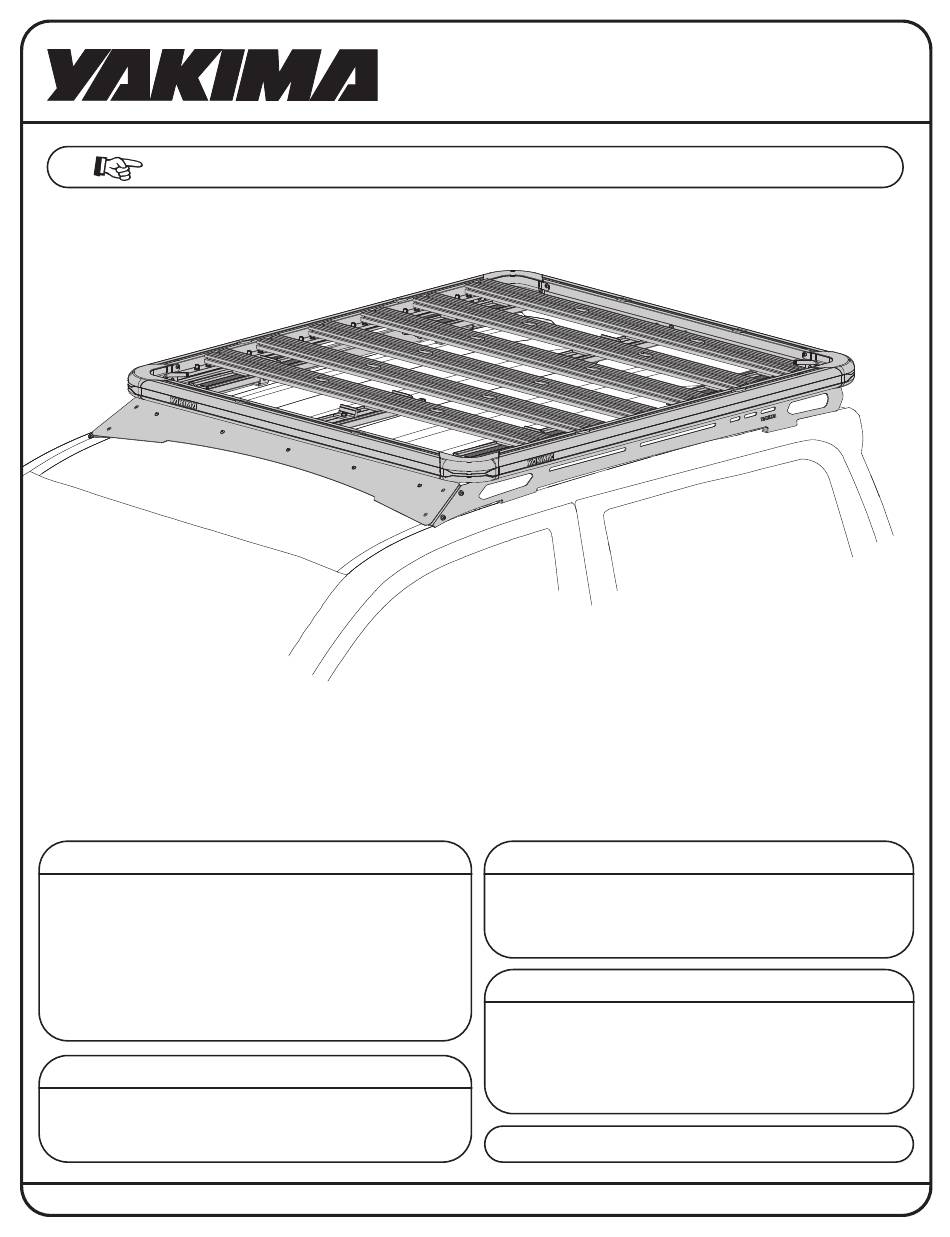

- Page 1 This Ruggedline system is designed to carry 220 lbs on or off road. Due to vehicle driving dynamics and roof structure Yakima INCLUDED TOOLS recommends you do not exceed your vehicle manufacturer stated maximum roof load.
- Page 2 M6 X 25M6 BUTTON HEAD CAP SCREW W/ CAPTIVE WASHER (10X) M6 X 16 BUTTON HEAD CAP SCREW W/ CAPTIVE WASHER (X32) M6 PLASTITE SCREW (X8) RuggedLine HD Tacoma Hardware Pack M8 X 20 CARRIAGE BOLT (8X) M6 X 20 SOCKET HEAD CAP SCREW (10X)
- Page 3 ASSEMBLE THE PLATFORM Clear a work area that will be large enough for the platform when fully assembled and place Platform ends and sides upside down in this work TIP: To prevent scratching, place a blanket (or the space (use logos as reference). platform’s carton, flattened out) over the work area.
- Page 4 POSITION THE SLATS. Be sure the slats are turned upside down to A. Slide each slat into position underneath match the ends and sides. the perimeter’s inside lip. B. Swing the other end into place and align the holes. SECURE THE SLATS. POSITION PLATFORM SUPPORTS.
- Page 5 SECURE THE PLATFORM SUPPORTS. A. Thread three M8 x 25 T-bolts up through the platform support and through three slat clamps. Install three M8 washers and lock nuts on the M8 T-bolts and install an M6 x 25 mm capscrew with washer as shown. Do not fully tighten. B.
- Page 6 6 Nm INSTALL FAIRING BRACKETS. 4.4 lb-ft Position the fairing bracket and fasten it using two M6 screws, four M6 flat washers, and two M6 lock nuts as shown. Use a 5 mm hex wrench or torque wrench along with a closed wrench to fully tighten the screws to 6 Nm (4.4 ft-lb).
- Page 7 ASSEMBLE THE PIVOT MOUNTS WITH THE BRACKETS. Assemble the brackets with the carriage bolts, join them together with the pivot mount, and secure them together with 4 M6 x 16 mm capscrews. Using a hex wrench or torque wrench, tighten completely to 4.5 Nm (3.3 lb-ft). 4.5 Nm 4.5 Nm 3.3 lb-ft...
- Page 8 PLACE THE PLATFORM. With the help of another person, start from the rear of the vehicle and move forward, then carefully set the platform down onto the pivot mounts. NOTE: To reduce wind noise the optimal position of the Platforms Wind Deflector is touching the RuggedLine Fairing.
- Page 9 Yakima recommande de ne pas dépasser la charge techo, Yakima le recomienda no exceder la carga máxima maximale du toit indiquée par le fabricant du véhicule.
- Page 10 TORNILLO M6 PLASTITE (8 PIEZAS) VIS PLASTITE M6 (X8) Ensemble de quincaillerie Ruggedline HD Tacoma Paquete de accesorios de montaje Ruggedline HD Tacoma ARANDELA M6 (14 PIEZAS) BOULON DE CARROSSERIE M8 X 20 (8X) VIS À TÊTE CREUSE M6 X 20 (10X) RONDELLE ÉPAISSE M6 (10X)
- Page 11 FRANÇAIS ESPAÑOL POSITIONNEZ LES SUPPORTS DE PLATEFORME. COLOQUE LOS SOPORTES DE LA PLATAFORMA. Retournez soigneusement la plateforme et placez 2 supports de Con cuidado, dé vuelta a la plataforma y coloque los 2 soportes plateforme sous ses extrémités. Pour éviter toute interférence de la plataforma debajo de los extremos de esta.
- Page 12 FRANÇAIS ESPAÑOL FIXEZ LES FIXATIONS ENSAMBLE LOS MONTAJES DE BASCULANTES SUR LES SUPPORTS. PIVOTE CON LOS SOPORTES. Assemblez les supports avec les boulons de carrosserie, joignez-les à la Ensamble los soportes con los pernos de cabeza de hongo, únalos con fixation basculante et fixez-les ensemble avec 4 vis d’assemblage M6 el montaje de pivote y asegure todo con 4 tornillos de casquete M6 X x 16 mm.
- Page 13 In order to replace any lost or defective keys, note the lock and key du numéro de la serrure et des clés ci-dessous et les enregistrer à www. numbers below and register them at www.yakima.com. yakima.com. Instruction #21000248A - Page 13 of 14...
- Page 14 Usted debe respetar al pie de la letra estas instrucciones de uso y utilizar solamente las piezas de origen provistas. Para reemplazar una llave perdida o defectuosa, anote más abajo los números de la cerradura y de la llave y regístrelos en www.yakima.com. Instruction #21000248A - Page 14 of 14...
