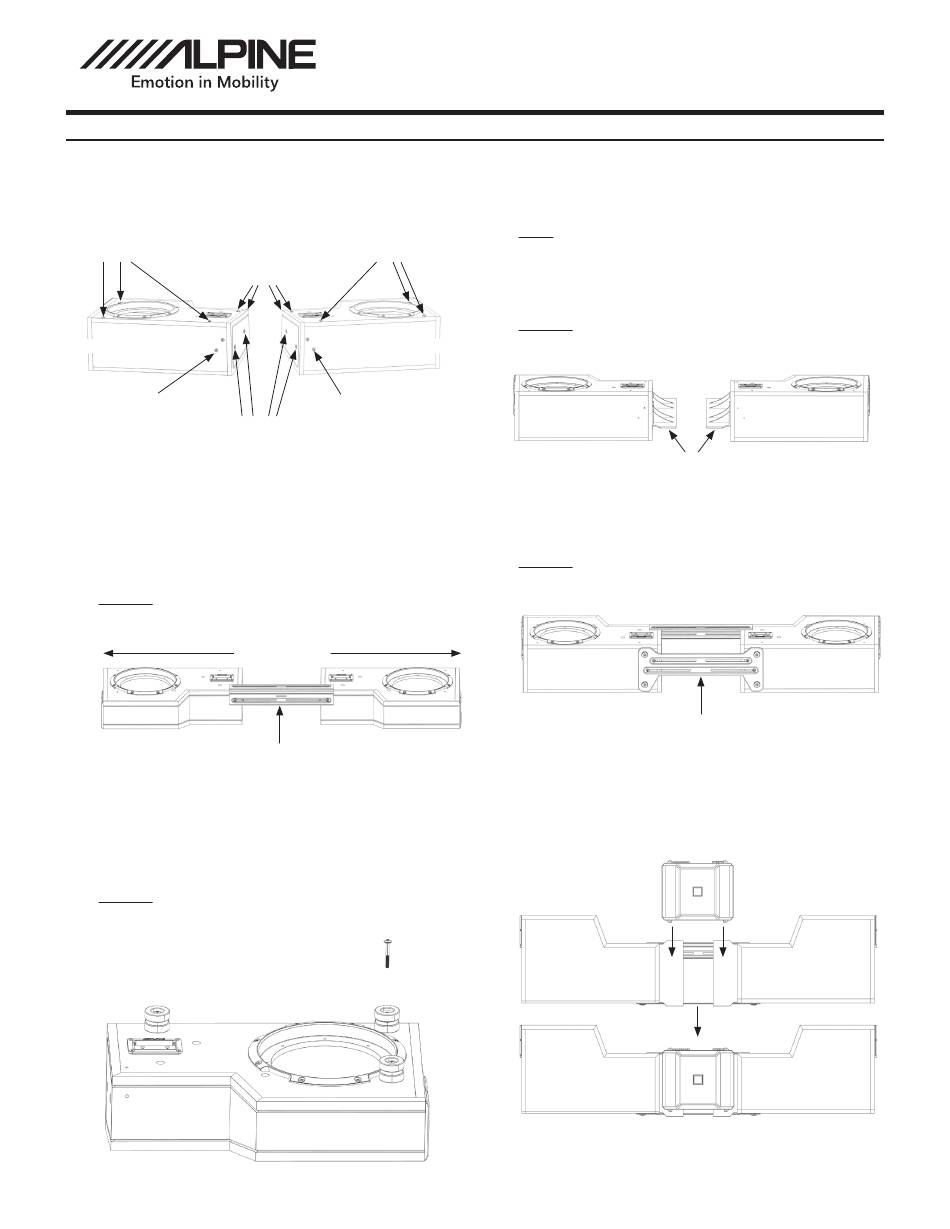

Installation screws are temporarily installed in both
driver and passenger side enclosures. Remove all
screws to prepare for assembly.
Stacking feet screws
Rear bracket screws
Driver side
Front bracket screws
Amp bracket screws
3
Place enclosures upside down on a flat surface
and set to required width. Align rear link bracket
with threaded inserts and secure bracket using
supplied M5x20mm screws (4pcs.) and M5x12mm
washers (4pcs.).
Caution: To avoid damage to the enclosure use supplied
Hex Key driver for when installing the rear bracket.
Rear bracket
5
Using the supplied M5x60mm screws (6pcs.)
and M5x20mm washers (6pcs.) install feet as
shown. Additional feet spacers are included to
accomodate vehicles with uneven floors, floor
mats etc. - see fitment chart.
Caution: To avoid damage to the enclosure use supplied
Hex Key driver for when installing the enclosure feet.
Stacking feet screws
Passenger side
Front bracket screws
See Table 1
2
If applicable, attach inner amp tray brackets using
supplied M5x20mm screws (4pcs.) and M5x20mm
washers (4pcs.).
Note: Amp tray brackets can be trimmed for narrow
applications. Amp tray will not be used in some
applications - See fitment chart. If Amp brackets are
not installed, the 4 mount screws should be left snugly
tightened in both enclosures.
Caution: To avoid damage to the enclosure use supplied
Hex Key driver for when installing the amp brackets.
4
Rotate assembly rightside up and attach front link
bracket using supplied M5x20mm screws (4pcs.)
and M5x20mm washers (4pcs.) as shown.
Caution: To avoid damage to the enclosure use supplied
Hex Key driver for when installing the front bracket.
6
Place mono amplifier on amp tray and mark
the mount holes. Then drill and mount with
appropriate size screws (not included).
