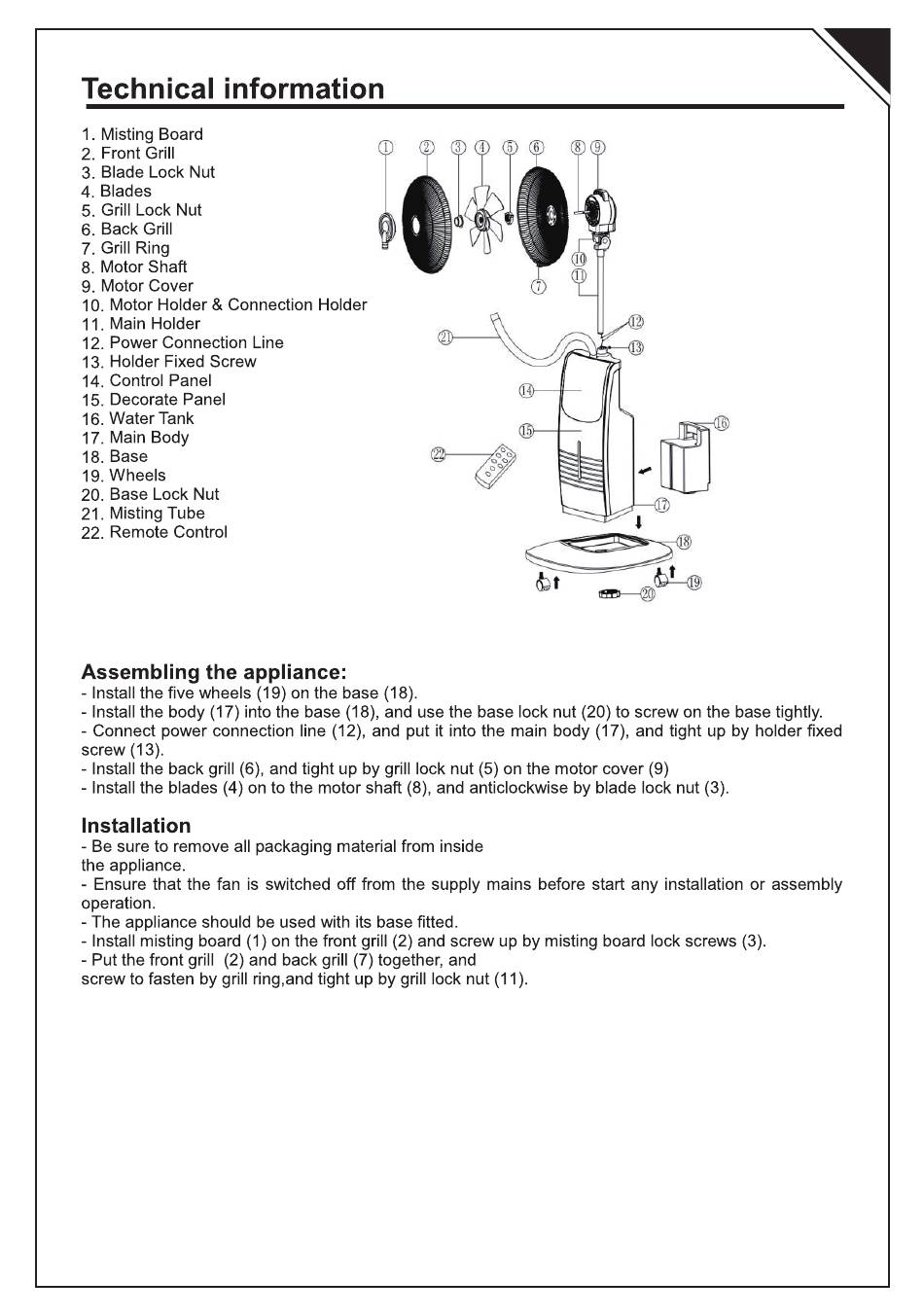

Technical information
1. Misting Board
2. Front Grill
3. Blade Lock Nut
4. Blades
5. Grill Lock Nut
6. Back Grill
7. Grill Ring
8. Motor Shaft
9. Motor Cover
10. Motor Holder & Connection
II. Main Holder
12. Power Connection Line
13. Holder Fixed Screw
14. Control Panel
15. Decorate Panel
16. Water Tank
17. Main Body
18. Base
19. Wheels
20. Base Lock Nut
21. Misting Tube
22. Remote Control
Assembling the appliance:
- Install the five wheels (19) on the base (18).
- Install the body (17) into the base (18), and use the base lock nut (20) to screw on the base tightly.
- Connect power connection line (12), and put it into the main body (17), and tight up by holder fixed
screw (13).
- Install the back grill (6), and tight up by grill lock nut (5) on the motor cover (9)
- Install the blades (4) on to the motor shaft (8), and anticlockwise
Installation
- Be sure to remove all packaging material from inside
the appliance.
- Ensure that the fan is switched off from the supply mains before start any installation or assembly
operation.
- The appliance should be used with its base fitted.
- Install misting board (1) on the front grill (2) and screw up by misting board lock screws (3).
- Put the front grill (2) and back grill (7) together, and
screw to fasten by grill ring,and tight up by grill lock nut (1 1
2 3 4
Holder
3
3
5 6
7
t
by blade lock nut (3).
