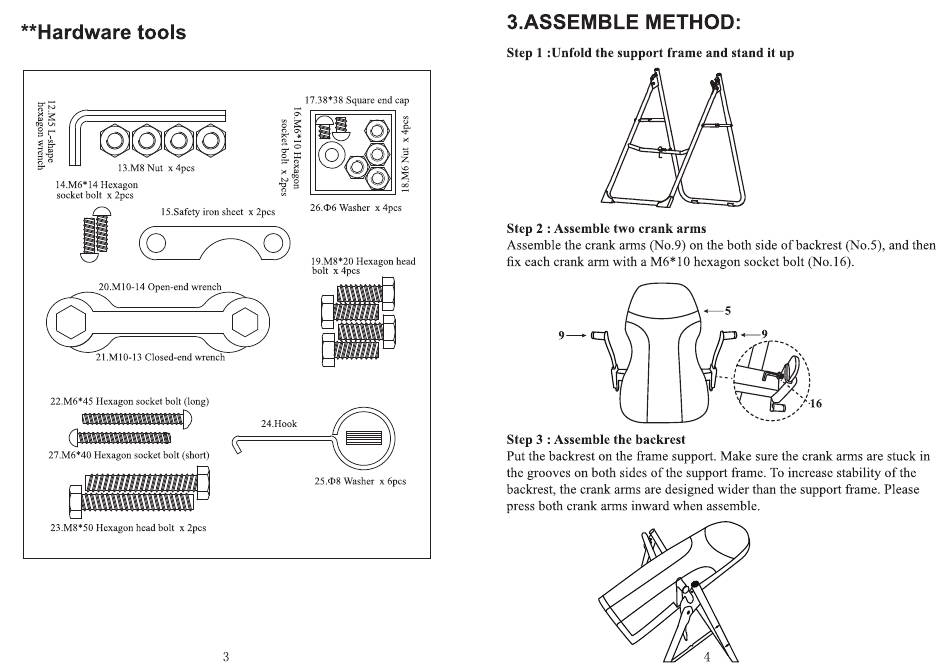

* *Hardware tools
0000
13.M8 Nut x 4pcs
14.M6* 14 Hexagon
socket bolt x 2pcs
15.Safety iron sheet x 2pcs
O
20.MI 0-14 Open-end wrench
21 .MI 0-13 Closed-end wrench
22.M6*45 Hexagon socket bolt (long)
27.M6*40 Hexagon socket bolt (short)
23.M8*50 Hexagon head bolt x 2pcs
17.38*38 Square end cap
000
26.cb6 Washer x 4pcs
19.M8*20 Hexagon head
bolt x 4pcs
24.Hook
25.Ø8 Washer x 6pcs
3
3.ASSEMBLE METHOD:
Step 1 :Unfold the support frame and stand it up
Step 2 : Assemble two crank arms
Assemble the crank arms (No.9) on the both side of backrest (No.5), and then
fix each crank arm with a M6*10 hexagon socket bolt (No. 16).
Step 3 : Assemble the backrest
Put the backrest on the frame support. Make sure the crank arms are stuck in
the grooves on both sides of the support frame. To increase stability of the
backrest, the crank arms are designed wider than the support frame. Please
press both crank arms inward when assemble.
