HOMCOM A91-053 Instructions D'assemblage page 10

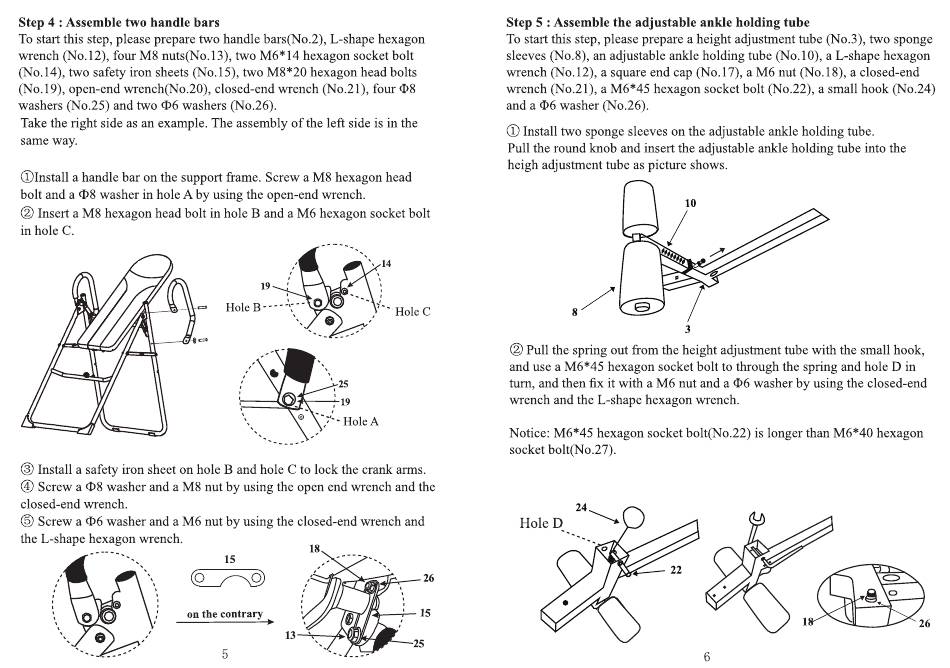

Step 4 : Assemble two handle bars
To start this step, please prepare two handle bars(No.2), L-shape hexagon
wrench (No. 12), four M8 nuts(No. 13), two M6* 14 hexagon socket bolt
(No. 14), two safety iron sheets (No. 15), two M8*20 hexagon head bolts
(No. 19), open-end wrench(No.20), closed-end wrench (No.21), four 08
washers (No.25) and two (b6 washers (No.26).
Take the right side as an example. The assembly of the left side is in the
same way.
Olnstall ahandlebar on the supportframe. Screw a M8 hexagonhead
bolt and a (D8 washer in hole A by using the open-end wrench.
@ Insert a M8 hexagonheadbolt in hole B and aM6 hexagonsocketbolt
in hole C.
($)Install a safetyiron sheeton hole B andhole C to lock the crank arms.
@ Screw a 08 washeranda M8 nut by using the openendwrench andthe
closed-end wrench.
(b)Screw a 06 washeranda M6 nut by using the closed-endwrench and
the L-shape hexagon wrench.
o
on the contrary
o
6
14
19
HoleB----±--
O
Hole
6
25
19
o
Hole A
18
15
O
13
5
Step 5 : Assemble the adjustable ankle holding tube
To start this step, please prepare a height adjustment tube (No.3), two sponge
sleeves (No.8), an adjustable ankle holding tube (No. 10), a L-shape hexagon
wrench (No. 12), a square end cap (No. 17), a M6 nut (No. 18), a closed-end
wrench (No.21), a M6*45 hexagon socket bolt (No.22), a small hook (No.24)
and a (1)6washer (No.26).
O Install two spongesleeveson the adjustableankleholding tube.
Pull the round knob and insert the adjustable ankle holding tube into the
heigh adjustment tube as picture shows.
C
8
@ Pull the springout from the height adjustmenttube with the small hook,
and use a M6*45 hexagon socket bolt to through the spring and hole D in
turn, and then fix it with a M6 nut and a (1)6washer by using the closed-end
wrench and the L-shape hexagon wrench.
Notice: M6*45 hexagon socket bolt(No.22) is longer than M6*40 hexagon
socket bolt(No.27).
24
Hole D
26
15
25
10
00
3
22
1
6
26
