O Cover the openingwith a squareendcap.

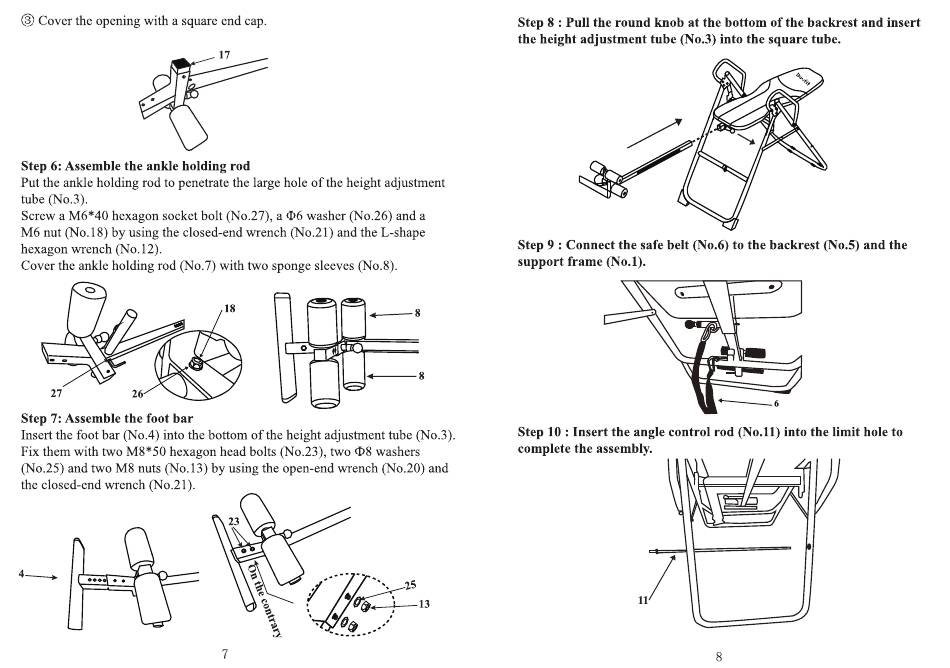

Step 6: Assemble the ankle holding rod
Put the ankle holding rod to penetrate the large hole of the height adjustment
tube (No.3).
Screw a M6*40 hexagon socket bolt (No.27), a (06 washer (No.26) and a
M6 nut (No. 18) by using the closed-end wrench (No.21) and the L-shape
hexagon wrench (No. 12).
Cover the ankle holding rod (No. 7) with two sponge sleeves (No.8).
27 26
Step 7: Assemble the foot bar
Insert the foot bar (No.4) into the bottom of the height adjustment tube (No.3).
Fix them with two M8*50 hexagon head bolts (No.23), two
(No.25) and two M8 nuts (No. 13) by using the open-end wrench (No.20) and
the closed-end wrench (No.21).
4
000 0 0
17
18
o
washers
23
4
7
Step 8 : Pull the round knob at the bottom of the backrest and insert
the height adjustment
Step 9 : Connect the safe belt (No.6) to the backrest (No.5) and the
support frame (No.l).
Step 10 : Insert the angle control rod (No. 11) into the limit hole to
complete the assembly.
25
13
tube (No.3) into the square tube.
11
8
