11 function keys Group2:
key /◄/
key /►/
key /RUN MODE/
key /BLACK OUT/
key /STROBE/

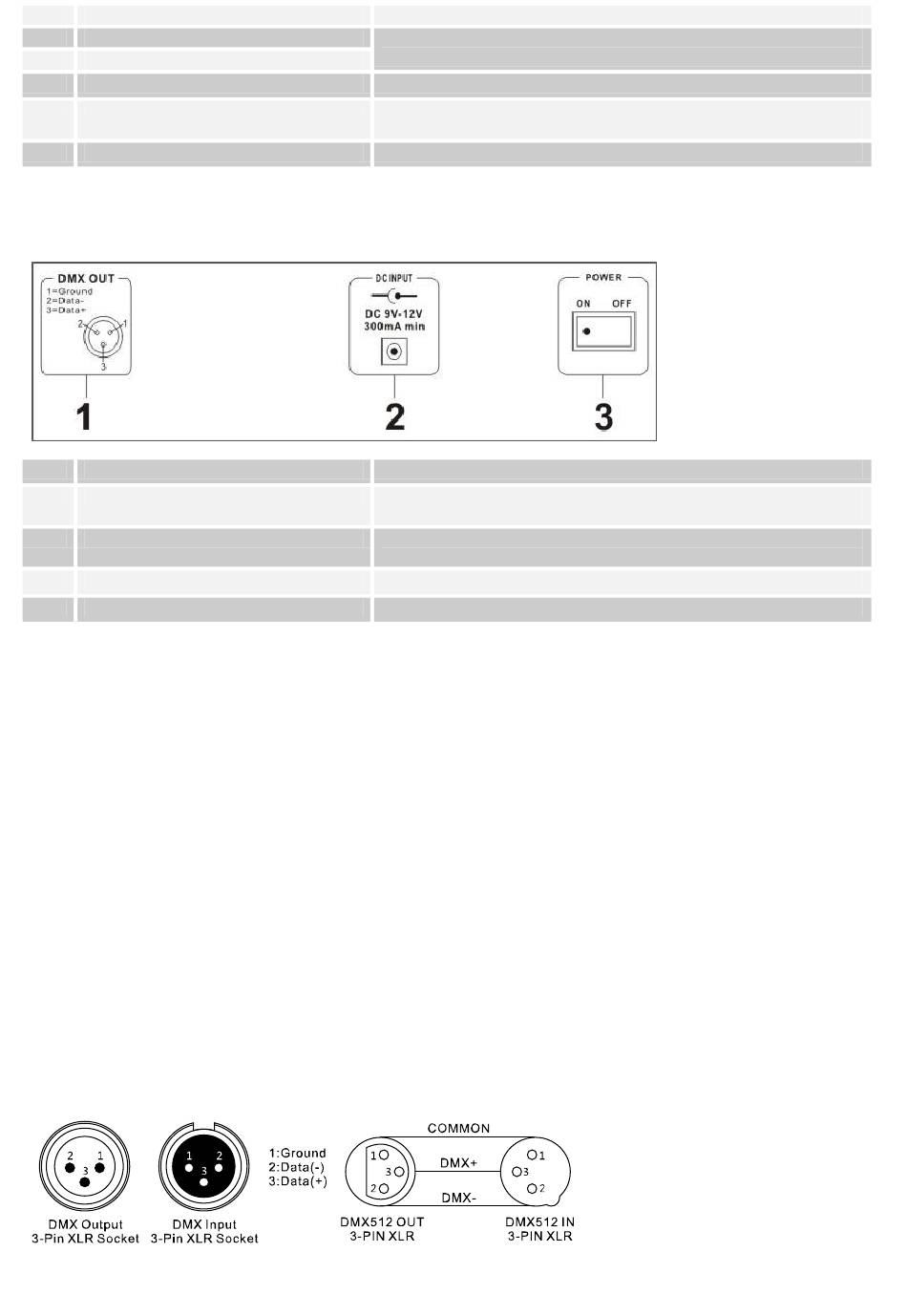

Illustration 2.
Rearview
Pos. Connection
1 DMX512-Output
2 Power supply socket
3 Power switch

2.2 Configuration:

Note: Basic knowledge is required for the DMX-512 standard!

2.2.1 Design / Installation:

The "LEDControl" can be used as a tabletop unit or installed in a rack.
For rack installation, please note that the housing may have a built-in fan, to pull off warm air effectively. The
device must be screwed firmly into the rack with M6 screws so that it can't slip during transport. Connect the power
supply to the "LEDControl" first and then to the power circuit.

2.2.2 Creation of a DMX-Chain:

DMX is the abbreviation for digital multiplex and allows the digital control of several DMX devices via a common
control cable.
The connections between "LEDControl" and the devices must be made with 2-pin, shielded cables (DMX cable).
Microphone cables are not suitable for the transmission of DMX digital signals. 3-pin XLR connectors and
couplings are used as a connection.
A three-pin XLR socket serves as a DMX output, a three-pin XLR connector serves as a DMX input.
Switch between the memory banks and for programming
functions.
Sets the running mode of a light sequence.
Switches all control channels to the value zero. The LED is on in
this state.
Turns on and off the stroboscope function.
Function
3-pin XLR connector for connection to the DMX input of the first
device.
DC INPUT socket for the power supply via the enclosed power
supply unit.
Turns the unit on and off.
17
