Key /PAN/FADE/
Key /TILT/WAIT/
8
Display
9
Function-Keys Area2
Key /AUX1/
Key /AUX2/
Key /BLCK OUT/
10
Key /RUN MODE/
11
Slider /Master Dimmer/

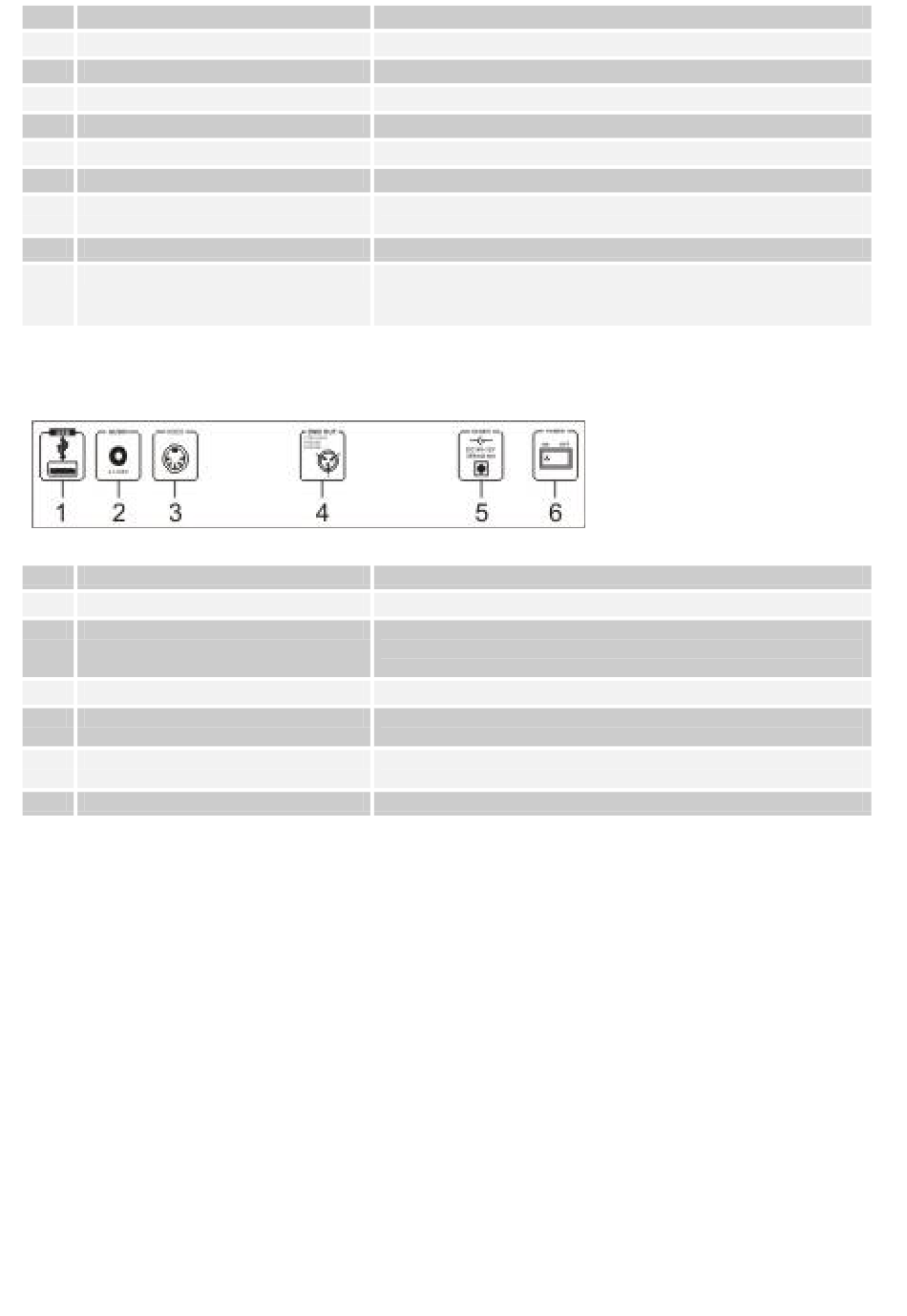

Illustration 2.
Rearview
Pos.
Connection
1
USB-Connector
2
Audio-Input
3
MIDI-Input
4
DMX512- Output
5
Power supply socket
6
Power switch
2.2 Configuration:
Note: Basic knowledge is required for the DMX-512 standard!
2.2.1 Design / Installation:
The "LIGHTControl" can be used as a tabletop unit or installed in a rack.
For rack installation, please note that the housing may have a built-in fan, to pull off warm air effectively. The
device must be screwed firmly into the rack with M6 screws so that it can't slip during transport. Connect the power
supply to the "LIGHTControl" first and then to the power circuit.
2.2.2 Creation of a DMX-Chain:
DMX is the abbreviation for digital multiplex and allows the digital control of several DMX devices via a common
control cable.
The connections between "LIGHTControl" and the devices must be made with 2-pin, shielded cables (DMX cable).
Microphone cables are not suitable for the transmission of DMX digital signals. 3-pin XLR connectors and
sequence of lighting scenes or a sequence of light sequences.
Free patchable key
Free patchable key
Switches all control channels to the value zero. The LED is lit in
this state.
To set the run mode of a light sequence.
To adjust the brightness. All values of the dimmer and color
adjustment channels are controlled together with this slider.
Function
To insert a USB storage device for data backup, import data.
For connection to the output of a sound source for the music
control of programs. When the socket is connected, the internal
microphone of the console is switched off.
5-pin DIN socket for MIDI control of the controller
3-pin XLR connector for connection to the DMX input of the first
device.
DC INPUT socket for the power supply via the enclosed power
supply unit.
Turns the unit on and off.
