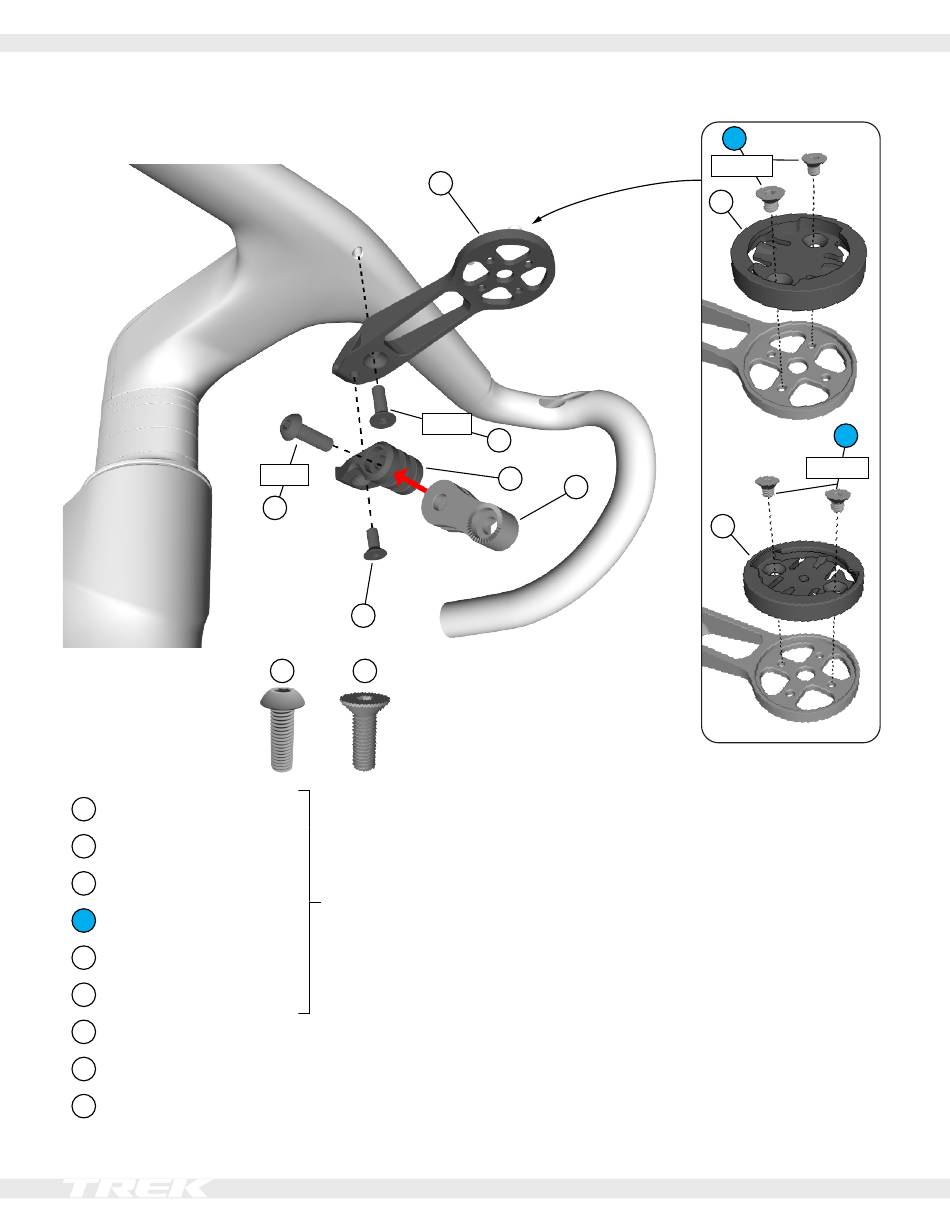

Base Blendr
1 Vis (M5 x 16 mm)
2 Vis (M5 x 16 mm)
3
Vis (M4 x 10 mm)
4
Vis (M3 x 2 mm)
5 Base
6 Rotule
7 Fixation de catadioptre
8 Support Garmin — 5266373
9 Support Wahoo — 5266374
5
4 Nm
4 Nm
1
3
1 2
5325346
2
6
7
Checkpoint 2025
4
0,5 Nm
9
Wahoo
4
0,5 Nm
8
Garmin
