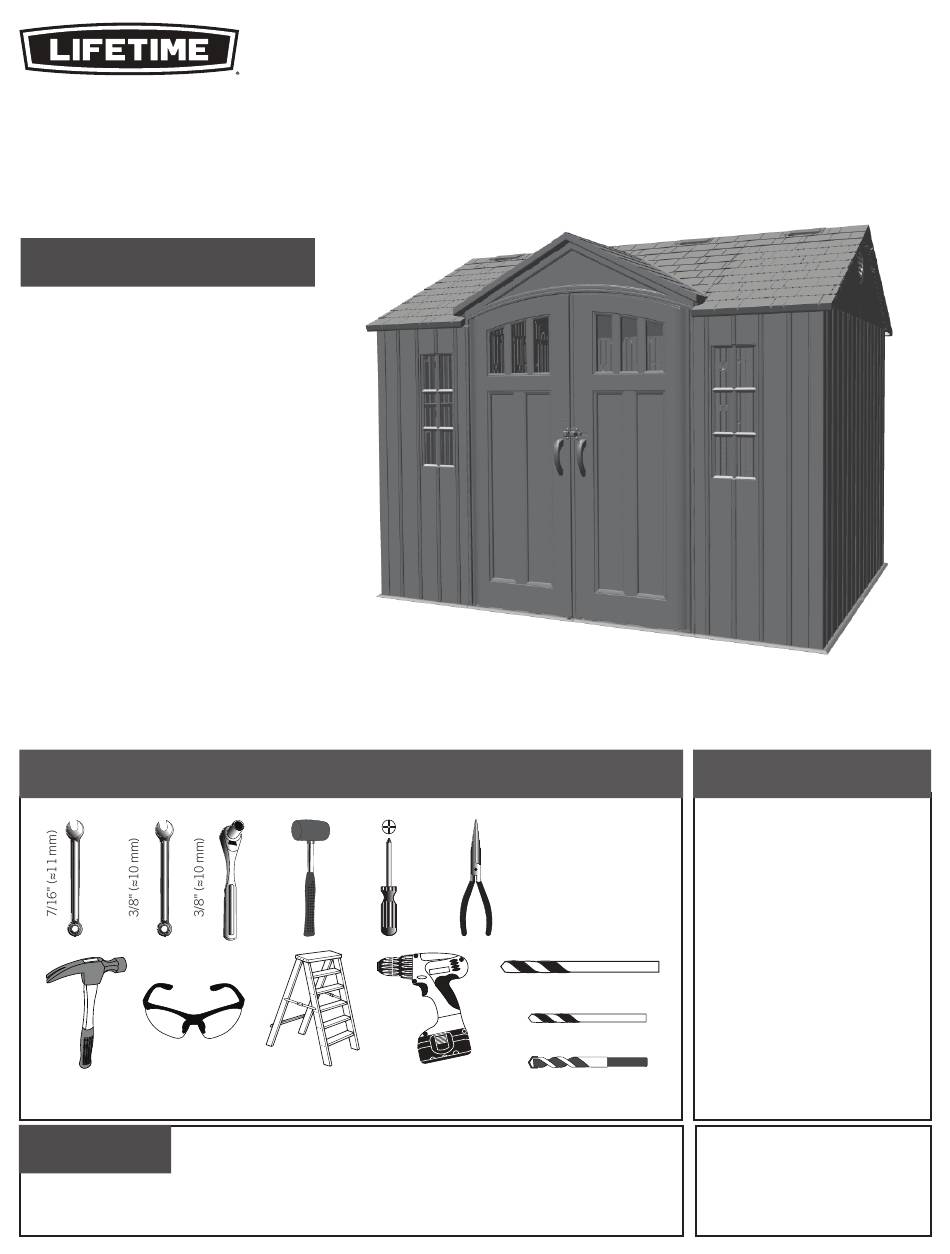

10' x 8'
OUTDOOR STORAGE SHED
MODEL 60405
BEFORE ASSEMBLY:
• Assemble on a level platform
• 3+ people for setup recommended
FOR DOMESTIC USE ONLY!
IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.
TOOLS REQUIRED (NOT INCLUDED—UNLESS INDICATED OTHERWISE*)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
(English, French, Spanish)
Live Chat: www.lifetime.com/customerservice
(Click on the "LIVE CHAT" tab)
For Customer Service in mainland Europe:
E-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
ARA (x1) 1/8" (≈3 mm)
Included
5/16" (≈8 mm) Wood Drill Bit
5/16" (≈8 mm) Masonry Drill Bit
TABLE OF CONTENTS
Icon Legend...................................4
Warnings & Notices.......................5
Platform Construction...................6
Truss Assembly...........................11
Gable Assembly..........................20
Door Assembly............................24
Floor Assembly............................38
Wall Assembly.............................43
Parts Identifi er............................i-iv
Shelving Installation....................55
Roof Assembly............................60
Accessory Installation..................79
Door Alignment...........................81
Anchoring...........................85
Cleaning & Care..........................91
Registration...........................92
Warranty...........................93
Model Number: 60405
Product ID:
