MAÎTRE-CYLINDRE TECH 4

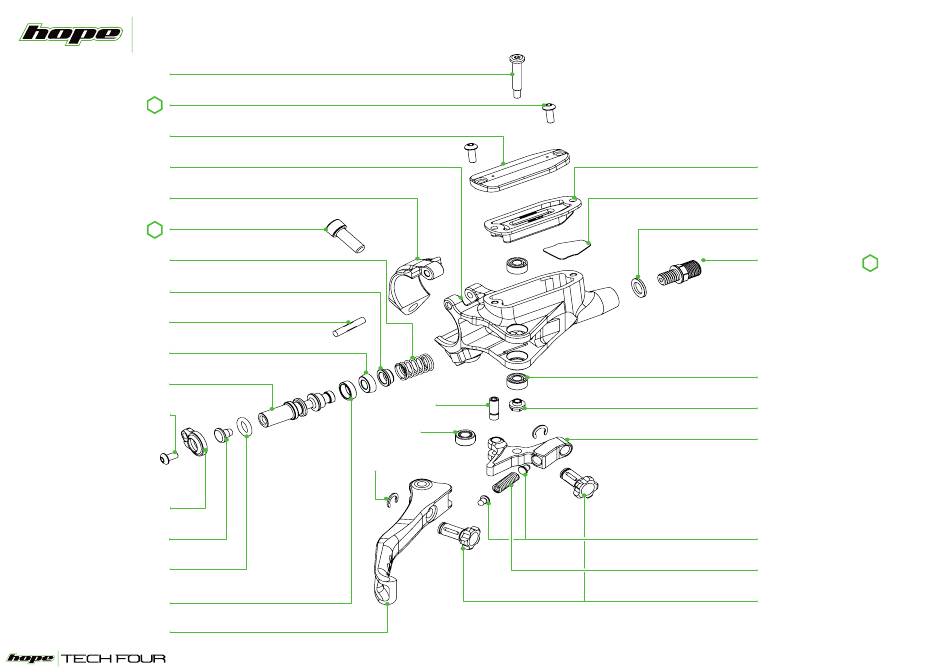

VUE ÉCLATÉE
Tech 4 Pivot Bolt
HBSP425
Dome Head Screw
1
M3 x 8
N.m
Tech 4 Lid
HBSP424
Tech 4 MCYL Body
HBSP420
Hinge Clamp
HBSP401
Clamp Bolt
5
N.m
M516AL
Tech 4 MCYL Spring
HBSP386
Spring Top Hat
HBSP412
18mm Grooved Pin
HBSP387
Tech 4 Primary Seal
HBSP408
Tech 4 MCYL Piston
HBSP423
Dome Head Screw
M3 x 6
Stop Plate
HBSP326
Piston Insert
HBSP272
Tech 4 Secondary Seal
HBSP430
Tech 4 Piston Guide Bush
HBSP407
Tech 4 Lever Blade
HBSP421
Cam Roller Pin
HBSP274
Cam Roller
HBSP275
Cresent Ring
HBSP233
Cresent Ring
HBSP233
T:
Tech 4 Diaphragm
HBSP405
Tech 4 Deflector Plate
HBSP406
M6 Sealing Washer
HBSP026
Straight Connector
8
HBSP163
N.m
Tech 4 Pivot Bearing x 2
S6842RS
Tech 4 Pivot Nut
HBSP428
Tech 4 Cam
HBSP422
Brass Plunger x 2
HBSP319
Lever Spring
HBSP312
Adjuster Screw x 2
HBSP219
