EN

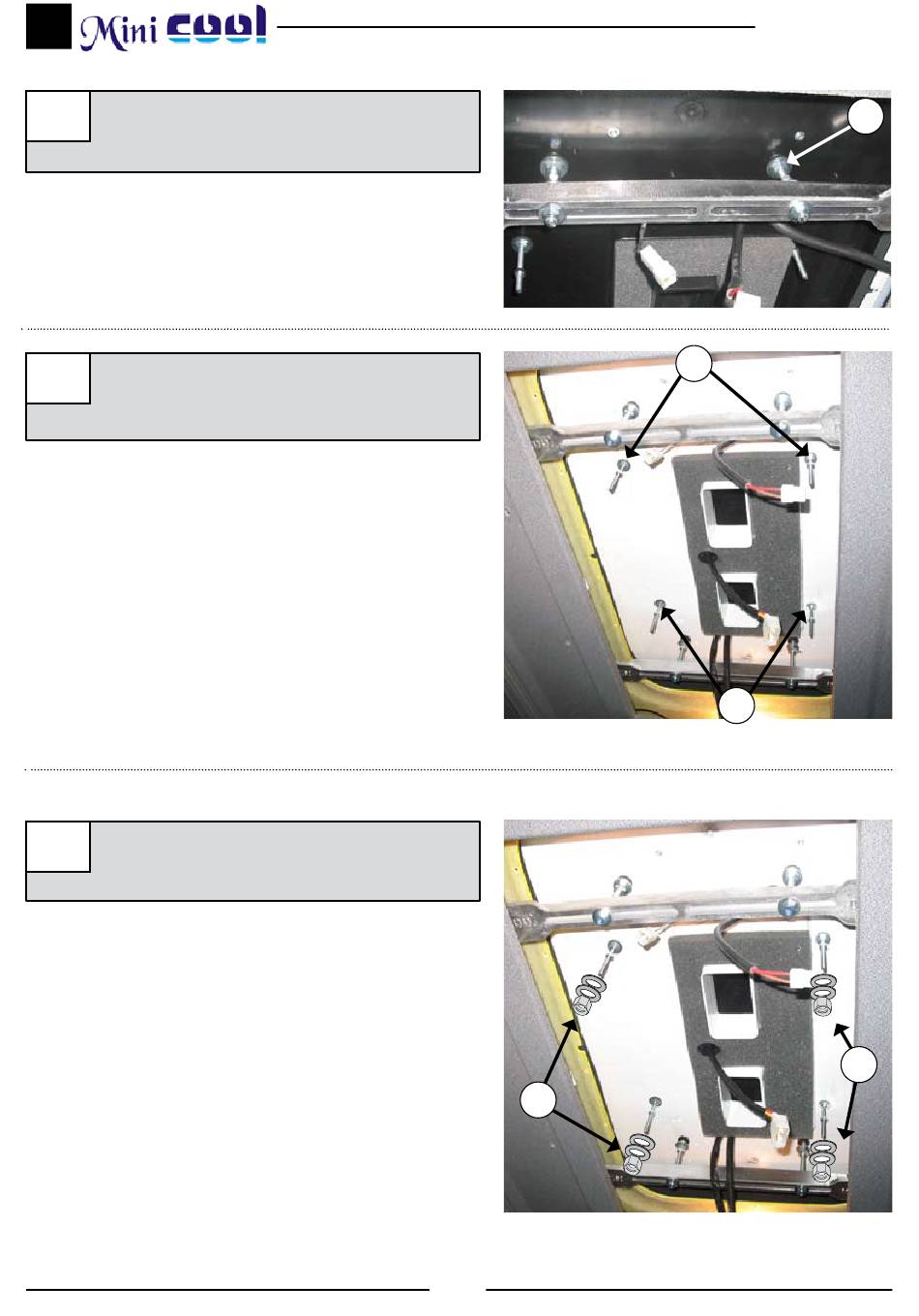

Place (2) fastening supports, with (1) washer
7a
7a
and (1) M8 self-blocking nut, without
tightening.
8
Screw 10 mm deep (4) M6 x 55 or 80 studs,
8
where indicated distance (A) in figure point
10.
8
Place (1) Ø6 rubber washer, (1) Ø6 wide wing
9
flat washer and (1) M6 nut, on each M6 studs.
Tighten nut.
9
9
