— Install the metal housing

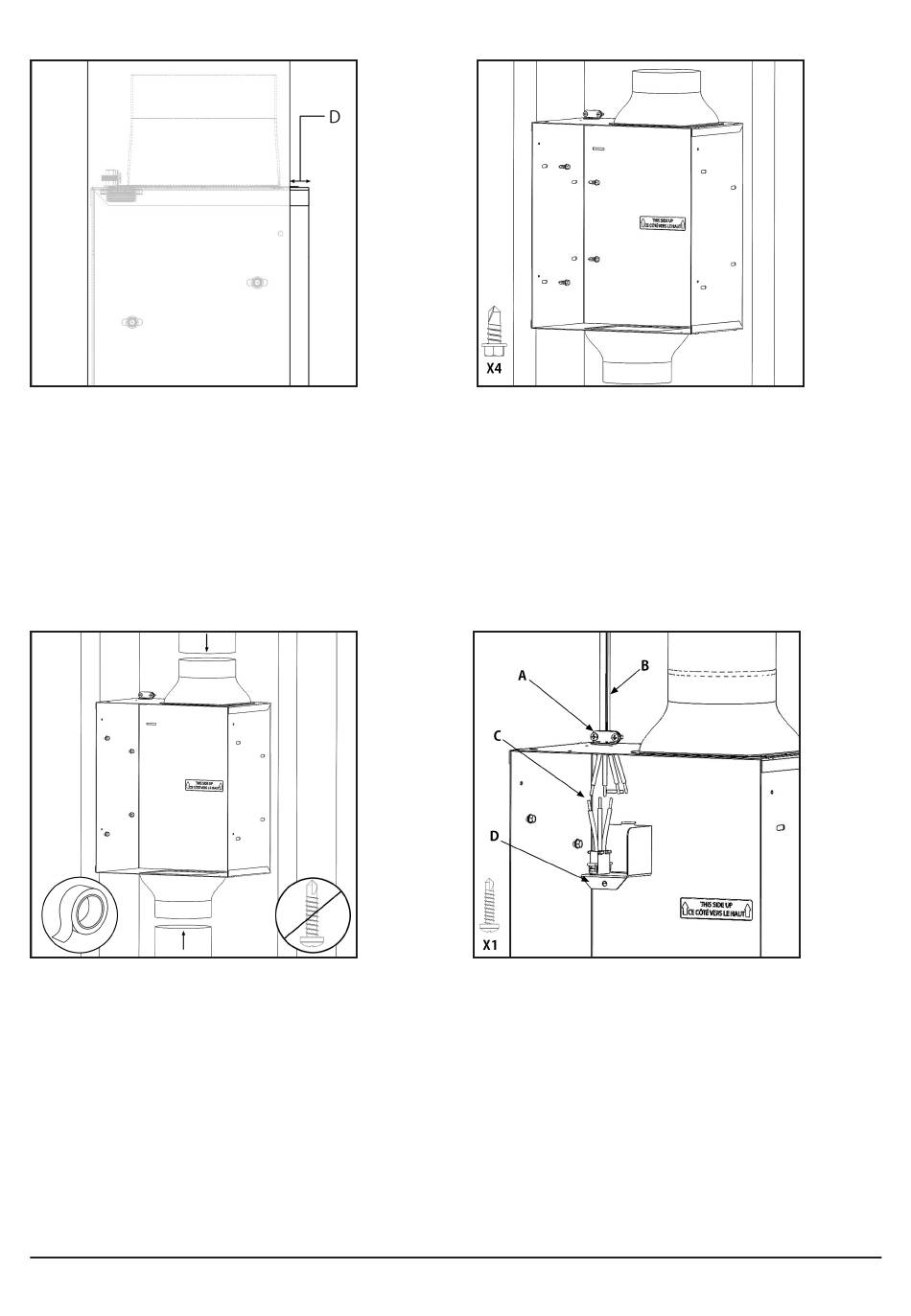

STEP 1
Spacing : Ensure to leave the appropriate
spacing corresponding to the drywall tickness
1/2'' or 5/8'' between the face of the stud and
the front of the box edge corresponding to
distance ''D'' as shown above.
— Install Ductwork
STEP 3
Install 4'' rigid galvanized duct on inlet and
outlet. Do not use screw to attach the duct to
the DBF-DEDPV duct adapter, use aluminum
tape to seal the connections.
Page : 4
— Install the metal housing
STEP 2
Mount housing directly to the stud using pro-
vided wood or metal screws. Ensure to use the
oblong slot.
Orientation : Refer to the orientation sticker to
install the housing in the proper orientation.
— Electrical connection
STEP 4
A - Install the electrical connector to the
housing.
B - Bring a 2/14 AWG wire from a dedicated
circuit.
C - Connect the junction box connector wires
to the 115 V supplied wires and the housing
ground wire.
D - Close back the junction box with the
supplied screw.
