USAGE OF THE INSTRUMENT
Unlock the pendulum lock by sliding the button on the
side of the device to the right.
Successively press the buttons to select the desired
function:
10.
Manual mode (3 sec.)
11.
Horizontal line(s)
12.
Vertical lines
13.
1x Receiver mode
2x Flash mode
If the laser is set up with the pendulum unlocked
outside the same levelling range (±4°), lines start
flashing rapidly.
To use the laser in automatic mode, the pendulum
lock must be unlocked.
To use in manual mode, delaser must be locked and
the manual key (10)must be pressed for 3 seconds.
The lines will now flash slowly and the red LED (8) will
flash rapidly. Press the button for 3 seconds to switch
off the laser.
Press mode button (13) once to switch on receiver
mode. Press again to switch on Flash mode.

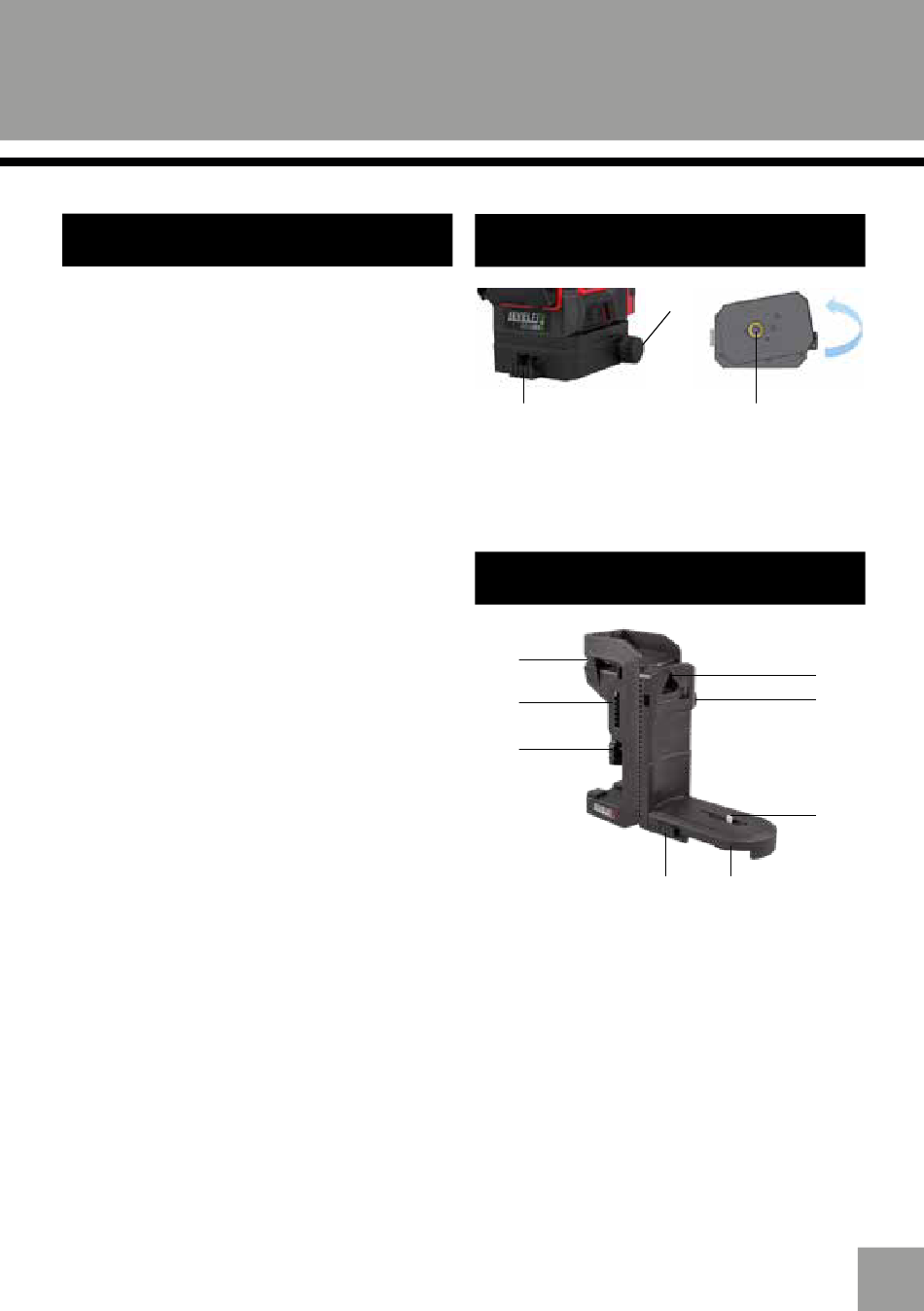

SMARTBASE
(Applicable to the CCL283G)
2
Img.3
1.
Positioning knob
2.
Adjustable stop lugs (tiles or profiles)
3.
1/4" fitting
MOUNTING BASE/CLAMP
1
2
3
1.
Adjustable clamp
2.
Clamp positions
3.
Clamping lever (press the lever to slide it into the desired
position)
4.
Slide for rotating the foot
5.
Rotating foot
6.
1/4" instrument connection
7.
Knob for adjusting the position of the foot
8.
Hanging eye
The laser is equipped with a 1/4" connection. To
mount the laser on a tripod with 5/8" connection, the
laser should be placed on the tripod complete with
mounting foot.
1
3
Img.4
4
5
Afb.5
EN
8
7
6
17
