2. Raise or lower the footplate to desired position by pressing
thumb and index fingers on the two push pins just above
the locking clamp. Front rigging should not be so low that
it causes uncomfortable pressure to thighs at front of seat
upholstery.
WARNING:
the ground to ensure proper clearance.
3. Once the desired length is found, ensure that both push pins
are securely locked in place. An audible click will be heard
when they lock in. Flip the locking clamp down into the
locked position.
4. Repeat steps 1-3 for the opposite side.

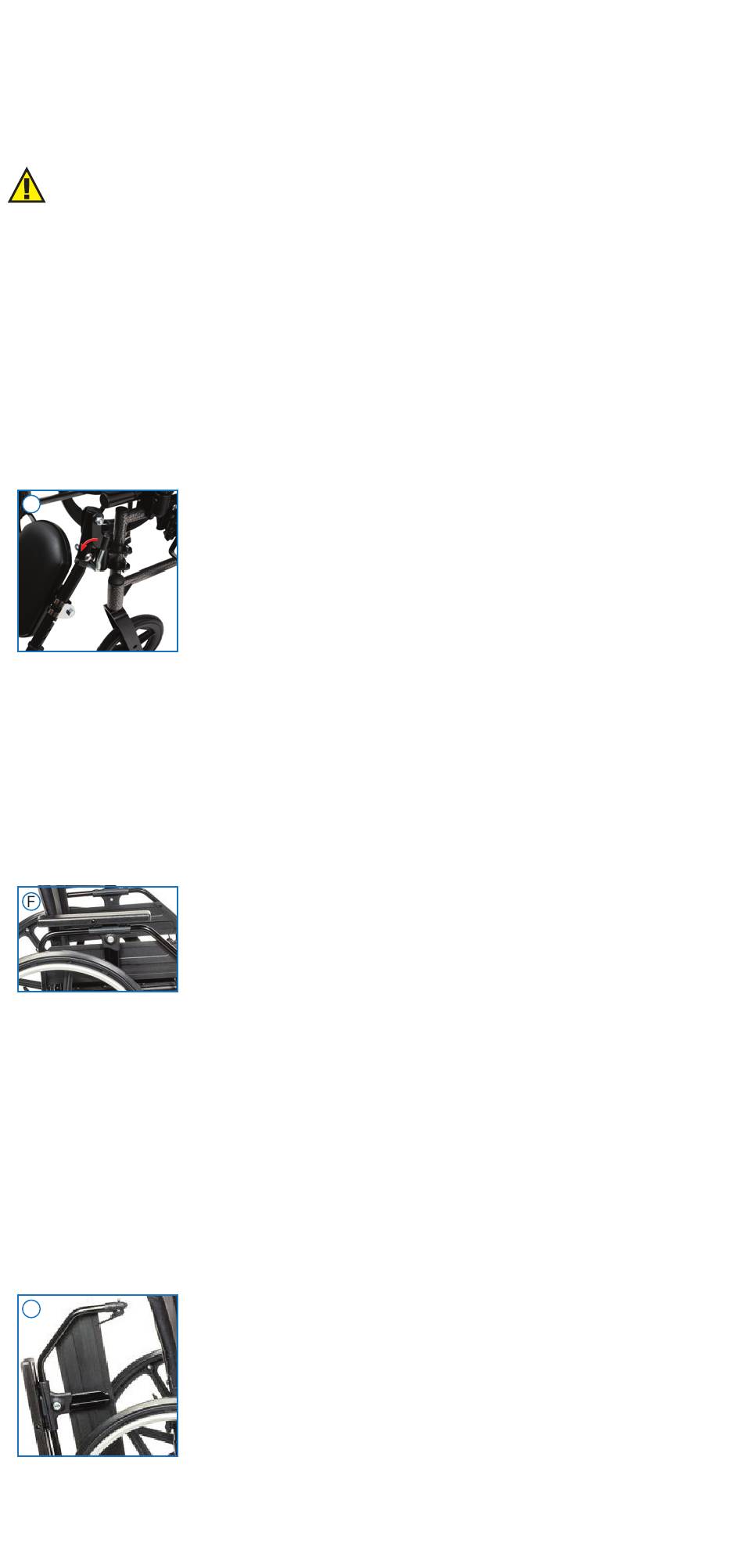

RAISING/LOWERING THE ELEVATING LEGREST
ASSEMBLY
E
hand. Gently, lower user's leg down and rest against the
legrest (Fig. E).
ADJUSTING HEIGHT OF ARMS
To adjust the height of the armrest, simply push the silver button
located on the outside of the armrest, under the armrest pad.
ADJUSTING FROM DESK LENGTH TO FULL LENGTH:
To adjust from desk length to full length. Push button on outter
side of armrest pad. To adjust, either push outward for full
length, or inward for desk length. You will hear an audible click
once the armrest is in place.
RAISING/LOWERING THE FLIP-BACK ARMS
G
3. Ensure the armrest release lever is in the locked position
before use. An audible click will be heard.
Footrests should not be lower than 2 ½" from
(WC4DX1616CE, WC4DX1816CE, WC4DX2016CE, WC4DX2216CE)
1. To raise the elevating legrest, the assistant
or user should grab hold of the support
tube and raise elevating legrest until
desired height is obtained.
2. To lower, support user's leg with one hand.
Push release lever downward with one
Push or pull armrest to the desired height,
lining up into the corresponding hole.
Ensure that the adjustment button returns
completely back to a locked position. An
audible click will be heard (Fig. F).
1. Release the lock-pin and lift the armrest
back to get on or get off the wheelchair
more convenient.
2. To lower and lock the flip-back arm, push
the armrest towards the front of the
wheelchair and then downward into the
arm socket.
