4. FAN SPEED BUTTON

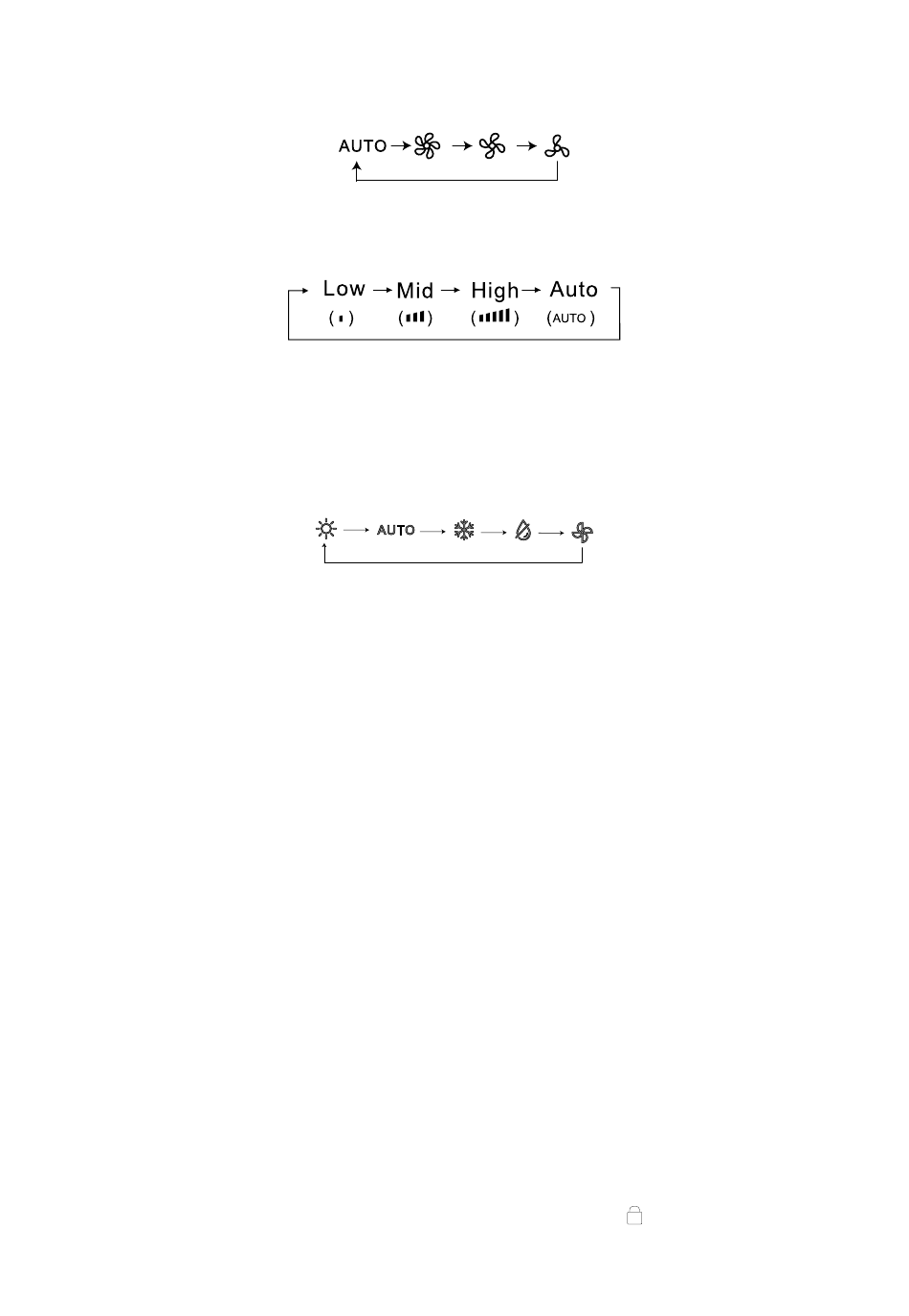

Press this button when the appliance is on to adjust the fan speed in cooling (AUTO), high (High), medium (Med),
low (Low) in the following circular sequence:
The corresponding LEDs light up on the control panel according to the selection made.
The fan speed cannot be adjusted in DRY mode and is fixed at low.
On the remote controller press SPEED button the adjust the fan speed in the following circular sequence:
5. UP/DOWN (+/-) BUTTONS
Press "+" or "-" to regulate the temperature (the adjustment step is 1 °C) and set the timer (each time the keys are
pressed the step is 0,5 hour). The temperature ranges from 16 °C to 32 °C, and the time ranges from 0,5h to
24h.
6. MODE BUTTON
Press this button to select the different operating modes, according to this sequence: Heating -> Auto -> Cooling
-> Dehumidification -> Ventilation
The corresponding LEDs light up on the control panel according to the selection made.
7. SLEEP BUTTON
•
In operating mode, press "SLEEP" to enter 10 hours of intelligent sleep mode. After 10 hours, the air
conditioner will exit Sleep mode to restore the previous mode.
•
In Sleep mode, press "SLEEP" again, or press "MODE" or "ON/OFF" to exit Sleep mode.
Note: Sleep function is not available in ventilation mode. In Sleep mode there is no variation of the fan speed. In
cooling mode, after the first hour, the set temperature increases by 1 °C, after the second hour it increases again
by 1 °C; after the 5th hour it decreases by 1C°, continues like this for another 3 hours and then exits the Sleep
function continuing to operate normally in cooling mode.
8. SWING BUTTON
Press this button to activate or deactivate the automatic swing of the horizontal air louvers.
°C/°F BUTTON (on the remote control)
Press this button on the remote control to change the temperature display from °C to °F.
By default, the temperature is displayed in °C.
TIMER BUTTON (on remote controller)
•
When the air conditioner is off, press "TIMER" to set a time to turn on the unit. The ON icon on the display
will flash. Press "+" or "-" to set the time, each press corresponds to 0.5 and is programmable up to 24 hours.
Press "TIMER" again to confirm and the ON icon will stop flashing.
•
When the air conditioner is on, press "TIMER" to set the time to turn off the unit. Each press corresponds to
0.5 and is programmable up to 24 hours. The OFF icon on the display will flash. Press "+" or "-" to set the
time and press "TIMER" again to confirm. The OFF icon will stop flashing.
Without any operation within 10 seconds from when the ON/OFF icon flashes, the Timer function will not be
activated or deactivated. To cancel the function, press the "TIMER" button. The LED corresponding to the Timer on
the control panel will light up.
CHILD LOCK (function that can be activated with the combination of keys on the remote control)
Press the HEAT and MODE buttons on the remote control at the same time for 3 seconds to activate/deactivate
the buttons on the air conditioner control panel.
When the function is activated, the icon is visible on the remote control display
V 10/24
35
