USE WITH WINDOW UNIT KIT

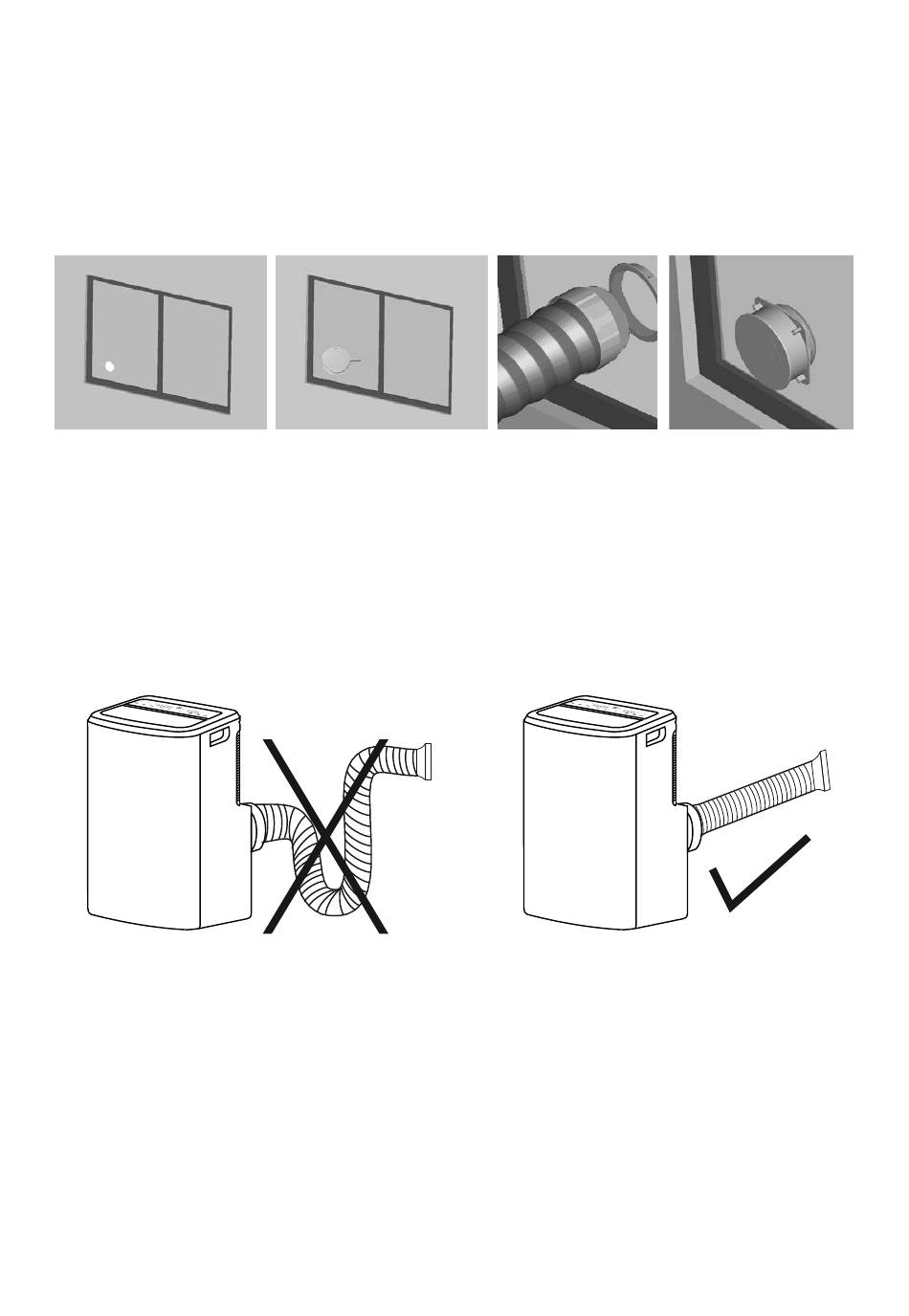

1. To make the hole in the glass, it is also advisable to take the porthole kit accessory to the glazier (Fig. 1).
2. Insert the porthole into the window (Fig. 2).
3. Insert the circular connector for the porthole kit into the retractable hose and insert the retractable hose with the
circular connector into the porthole without the cap (Fig. 3).
4. When not in use, disconnect the hose and close the porthole with the cap (Fig. 4).
(Fig. 1)
(Fig. 2)
(Fig. 3)
(Fig. 4)
Avoid tight bends or folds in the hose. The hose, once fully extended, must be placed at a higher height than the tube
attachment positioned on the machine, approximately between 40 and 160 cm to ensure the correct height that does
not compromise the performance of the air conditioner.
If the air conditioner is not used for prolonged periods, disconnect the pipe and plug the window unit.
V 10/24
30
