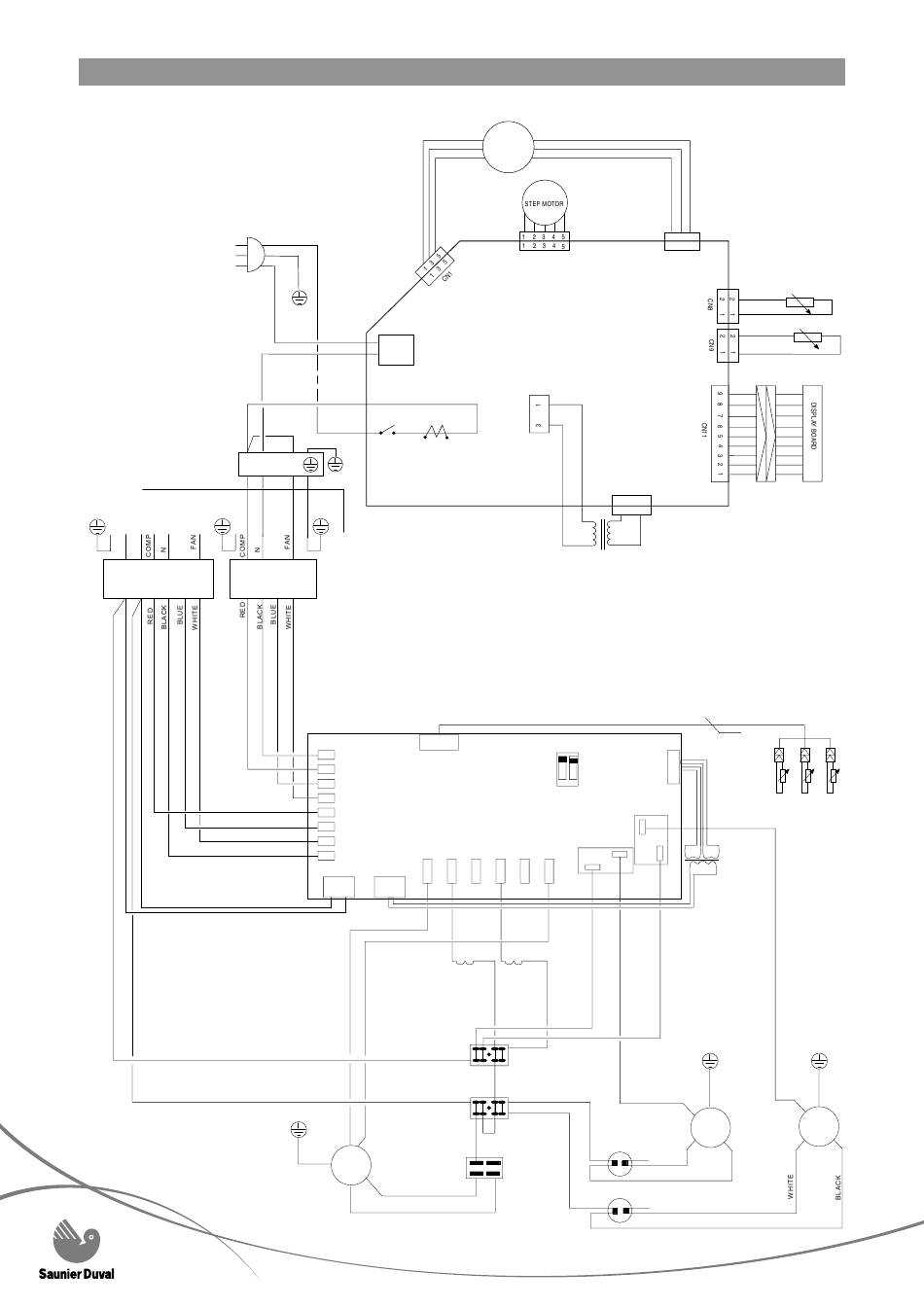

SCHÉMAS ÉLECTRIQUES UNITÉS SDCE 041 / 051 / 061 M2
POWER
1 2(N) 3 4
JX1
INDOOR
OUTDOOR
FROM INDOOR FROM INDOOR
AC POWER
UNIT A
220V-50HZ
Y&G Y&G
L N 1 2(N) 3 4 1 2(N) 3 4
XT1
RED
BLACK
BROWN/RED
Y/G
CN12
BLUE
BLACK
RY1
YELLOW/GREEN
CURRENT DETECTOR
UNIT B
Y&G
XT2
P1
CN8
P2
P3
P4
OUTDOOR UNIT
P5
P6
P7
P9
P8
CN2 CN3
BLACK
YELLOW
Y&G
FAN
INDOOR MOTOR
CN5
RED
CN7
TRANSFORMER
SW
B_COMP
P10 P12 P13 P14
P11
SV(A)
SV(B)
RED
XT3
BLACK
XT4
BLACK
BLACK BLACK
CAP1
RED
BLACK
BLUE
3 2 1
3 2 1
CN4
ROOM TEMPERATURE SENSOR
PIPE TEMPERATURE SENSOR
CN10
1 3
3
1
6
CN7
WHITE
RT4
A_COMP
T5
RED
Y&G
RED
C
COMP (B)
S
R
CAP2
WHITE
BLACK
CAP3
BLACK RED
RT38 RT3A
Y&G
C
COMP (A)
R
S
