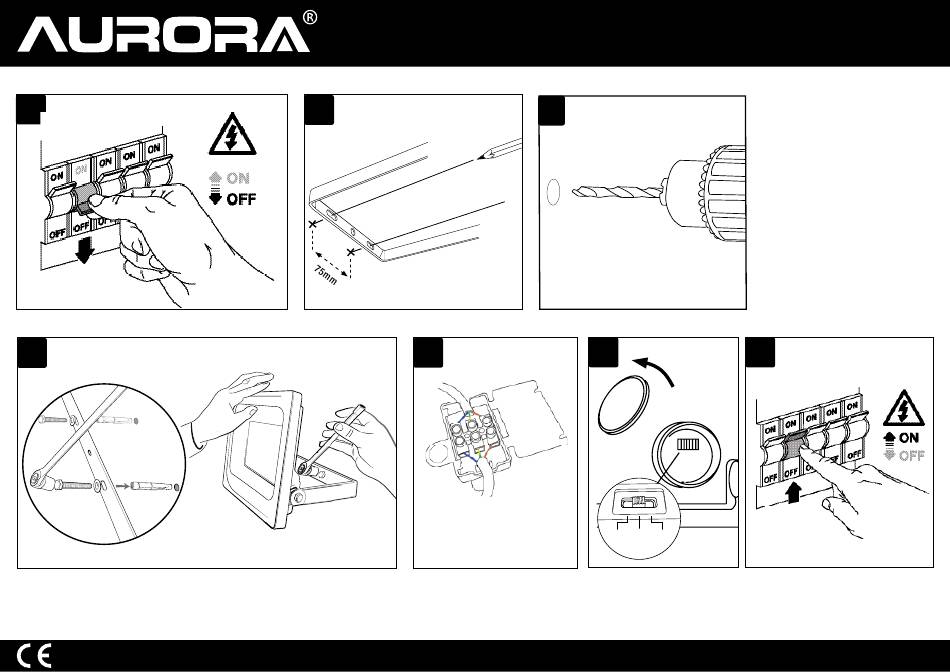

Bolts and Fixings not included
AU-FLV10CS, AU-FLV20CS, AU-FLV30CS & AU-FLV50CS
e
Class I
2
5
IP rated Junction box
(Not included)
N (Neutral) - Blue
e
(Earth) - Green/Yellow
L (Live)
- Brown
(Note: This luminaire MUST be earthed)
3
6
Colour Switch:
3000K 4000K 6500K
Document Version: AU-FLV10CS, AU-FLV20CS, AU-FLV30CS, AU-FLV50CS V1_24
Aurora Limited
6 Little Burrow,
Burrowfields,
Welwyn Garden City,
AL7 4SW, United Kingdom
7
