NEVER LEAVE THE HEATER
UNATTENDED WHILE BURNING!

3. UNPACKING AND ASSEMBLY

1. REMOVE THE HEATER AND ALL PACKING MATERIALS FROM THE BOX. (See Fig.2)
NOTE: Save the shipping carton and packing materials for future storage.
Wheels
(Solid Type)
2. ASSEMBLING

Tools Required

Medium Phillips Screwdriver.
24 Socket Wrench.
Assembling wheel &handle
1. Slide threaded axle through the rear section of the wheel support frame.
2. Slide one axle bushing on to each side of the axle. Slide one wheel on to each side of the axle.
Insert washers(L) on each side of the threaded shaft and tighten the cap nut.
3. Loosen 4 screws on the front handle in order to remove handle front.
4. Move the removed handle front to the handle on the front side as Figure 5 and then tighten 4 screws
after matching handle and handle front.
CAUTION: DO NOT OPERATE heater without support frame assembled to tank.
Cap Nuts
Washer
Hardware Kit Part No :
HW-KFA1020

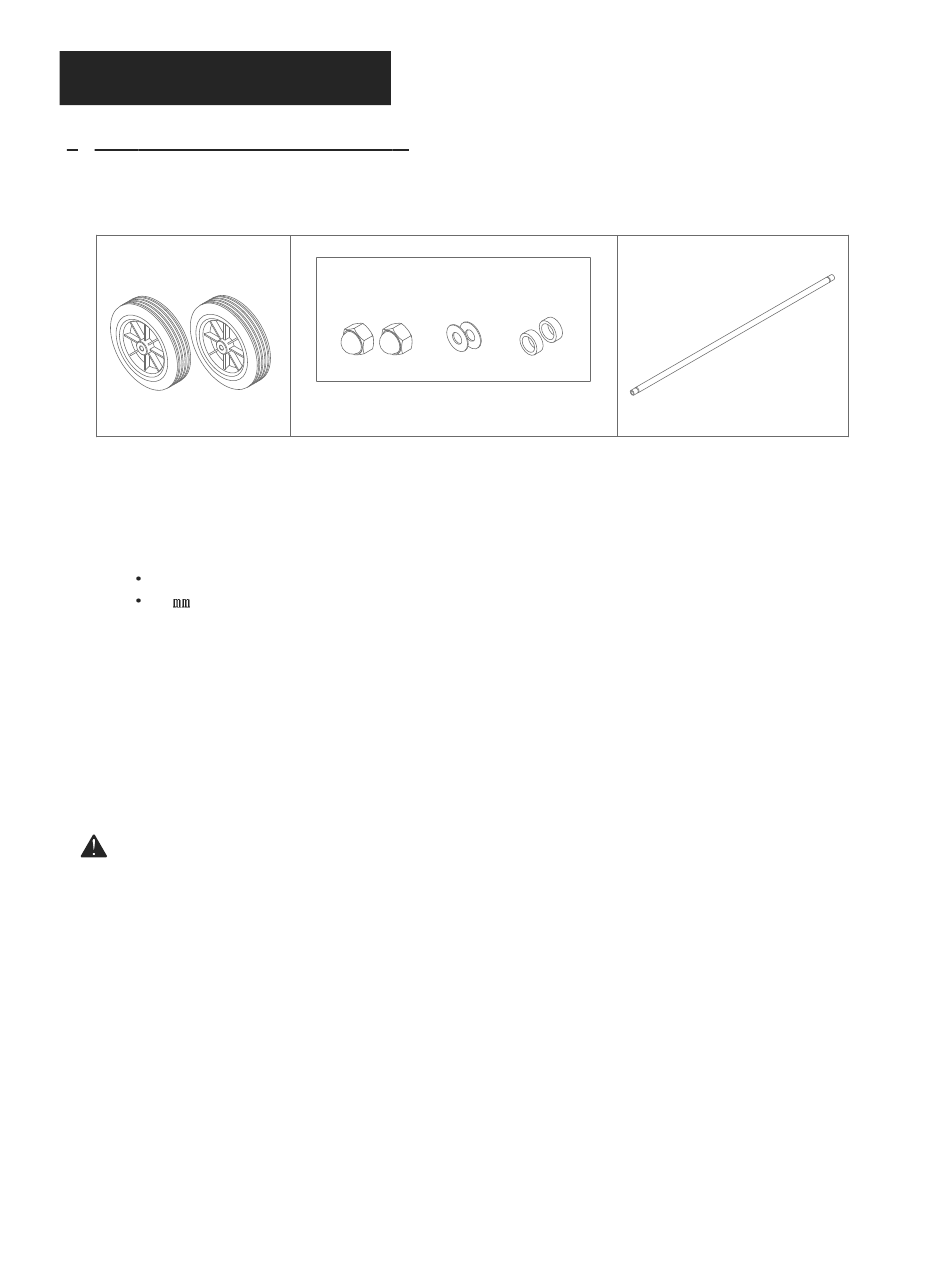

Figure 2. PACKING MATERIALS
3
Threaded Axle
Bushings
