Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the end user.
Note to end user – Keep these instructions with your Owner's Manual for future reference.
Tools Needed
• Ruler or tape measure
• Phillips head screwdriver
• Level
• Pencil
• Wood saw

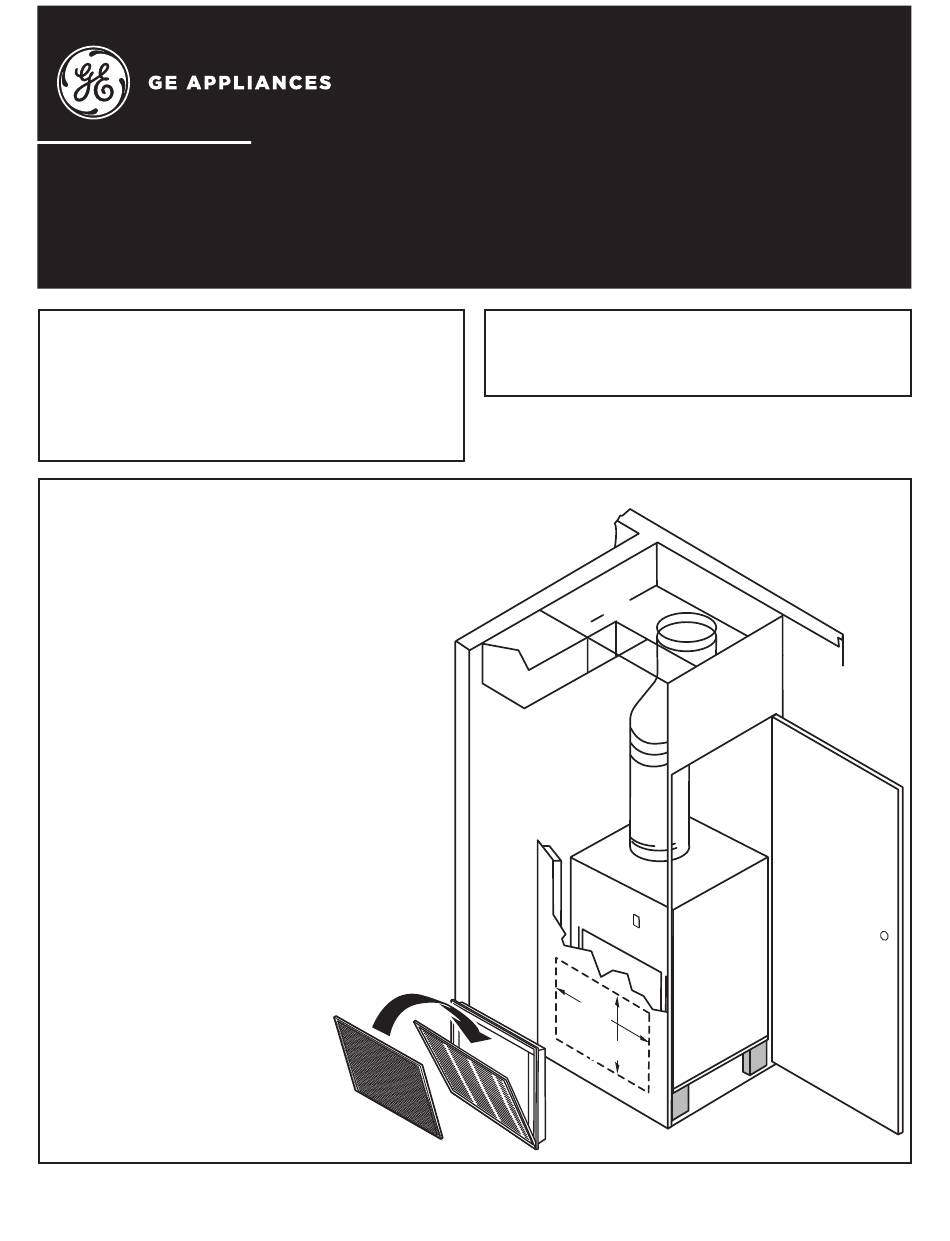

Install the return air grille
NOTE: The return air grille must be installed in an
interior closet wall common to the unit. Return air grille
can be mounted at any height of wall or in the door.
1. Cut and frame a 20⅜" W x 20⅜" H opening in the
closet wall panel.
NOTE: Use a level or suitable method to ensure the
cutout is square and plumb. Install the grille frame in
the orientation shown.
2. Remove the two screws from the grille and remove
the grille from the frame.
3. Fit the grille frame into the cutout opening.
4. Secure the grille frame to the closet wall frame using
8 mounting screws (field supplied).
5. Install a 20" x 20" x 1" filter (field supplied) in the
grille.
6. Install the grille into the frame and replace the two
screws removed earlier.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Installation Instructions
for your new
RAVRG2B
Return air grille
Parts Needed
• 8 Mounting screws
• 20" x 20" x 1" filter
Filter
Grille
20 3/8"
20 3/8"
Frame
31-5000761 Rev. 0 04-23 GEA
