GE WE16X29317 Instructions D'installation

Sécheuse - kit de ventilation

Publicité

Les langues disponibles

Les langues disponibles

Liens rapides

Installation
Instructions
If you have any questions, call GE Appliances at 800.GE.CARES
(800.432.2737)
In Canada, call 800.561.3344
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
local inspector's use.
IMPORTANT
codes and ordinances.
Note to Installer
– Be sure to leave these
instructions with the Consumer.
Note to Consumer
future reference.
• This dryer must be exhausted to the outdoors.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• Remove and discard existing plastic or metal foil
duct.
TOOLS AND MATERIALS YOU WILL
NEED TO INSTALL EXHAUST DUCT
1/4" Socket & Nut Driver
Duct tape or
duct clamp
CONTENTS
Exhaust duct
(15-1/2" Long)
Exhaust duct
(12-1/2" Long)
Exhaust duct
(9-1/2" Long)
or visit our Website at:
– Save these instructions for
– Observe all governing
– Keep these instructions for
1/4" Socket & Wrench
Vent hood
Elbow duct
Bracket with
adhesive
Access panel
Dryer Venting Kit
WE16X29317 / GFA28DSVN
GEAppliances.com
www.GEAppliances.ca
or visit
- Risk of Fire
• Clothes dryer installation must be performed by a
qualified installer.
• Install the clothes dryer according to these
instructions and local codes.
• DO NOT install a clothes dryer with flexible plastic
venting materials. If flexible metal (semi-rigid or
foil-type) duct is installed, it must be UL-listed and
installed in accordance with the instructions found
in "Connecting the Dryer to House Vent" later in
this manual. Flexible venting materials are known
to collapse, be easily crushed and trap lint. These
conditions will obstruct dryer airflow and increase
the risk of fire.
• To reduce the risk of severe injury or death, follow
all installation instructions.
• Save these instructions. (Installers: Be sure to
leave these instructions with the customer.)
This dryer MUST be vented to the outdoors.
Use only 4" rigid metal ducting for the home exhaust
duct.
DO NOT use any plastic to vent the dryer, this
includes the home exhaust duct, dryer transition
duct, or within the dryer.
DO NOT use flexible metal or metal foil ducting for a
home exhaust duct or within the dryer.
DO NOT exhaust into a chimney, kitchen exhaust,
gas vent, wall, ceiling, attic, crawl space, or
concealed space of a building.
DO NOT install a screen in or over the exhaust duct.
DO NOT install a booster fan in the exhaust duct.
Failure to follow these instructions can result in
death or fire.
31-3000209
- Fire Hazard
Rev 1
02-20 GEA

Publicité

Table des Matières
loading

Sommaire des Matières pour GE WE16X29317

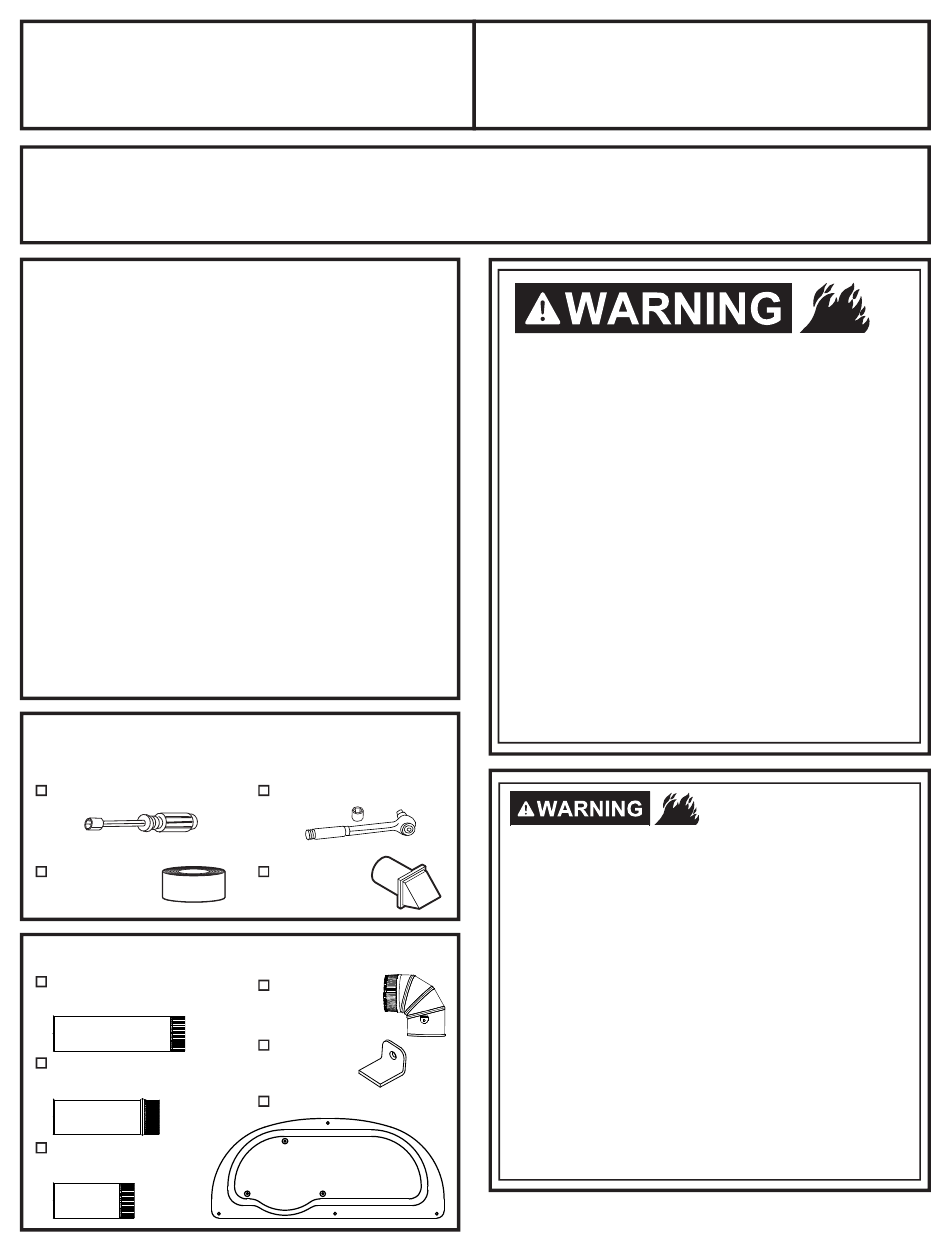

  • Page 1 Installation Dryer Venting Kit Instructions WE16X29317 / GFA28DSVN If you have any questions, call GE Appliances at 800.GE.CARES (800.432.2737) GEAppliances.com or visit our Website at: In Canada, call 800.561.3344 www.GEAppliances.ca or visit BEFORE YOU BEGIN Read these instructions completely and carefully.
