H-6124, S-21632

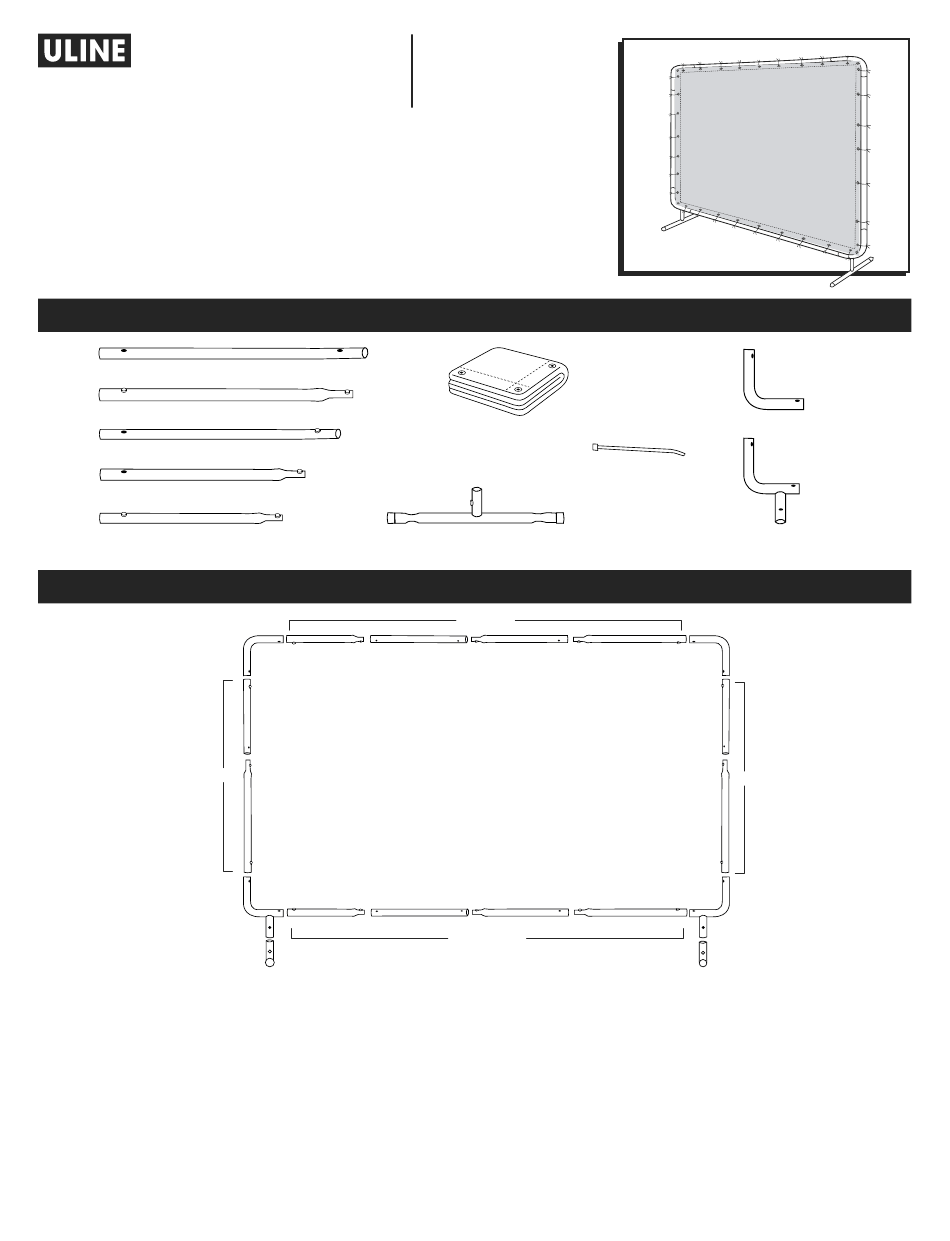

WELDING SCREEN – 6 x 10'
Long Non-Tapered Tube (A) x 2
Long Tapered Tube (B) x 4
Medium Non-Tapered Tube (C) x 2
Medium Tapered Tube (D) x 2
Short Tapered Tube (E) x 2
LEFT FRAME
1. Assemble the top and bottom frames by connecting
the short tapered (E), long non-tapered (A), medium
tapered (D) and long tapered (B) tubes until pins snap
and lock in place.
2. Assemble the left and right frames by connecting the
medium non-tapered (C) and long tapered (B) tubes
until pins snap and lock in place.
3. Connect the corners (F) with the top, left and right
frames until pins snap and lock in place.
PAGE 1 OF 3
1-800-295-5510
uline.com
Foot (H) x 2
ASSEMBLY
(E) (A)
(F)
(C)
(B)
(G) (E) (A)
(H)
PARTS
Curtain x 1
Curtain Tie x 40
TOP FRAME
(D)
(D)
BOTTOM FRAME
4. Connect the corners with foot adapters (G) to the
bottom, left and right frames until pins snap and lock in
place.
5. Connect a foot (H) to each corner with foot adapter (G)
until pins snap and lock in place.
6. With frame assembled, attach the curtain to the frame
using the curtain ties.
Para Español, vea página 2.
Pour le français, consulter la page 3.
Corner (F) x 2
Corner with Foot Adapter (G) x 2
(B)
(F)
(C)
RIGHT FRAME
(B)
(B) (G)
(H)
0824 IH-6124
