Dimplex PBQ-120-METRO Notice De Remplacement

Thermostat Control
Replacement Instructions

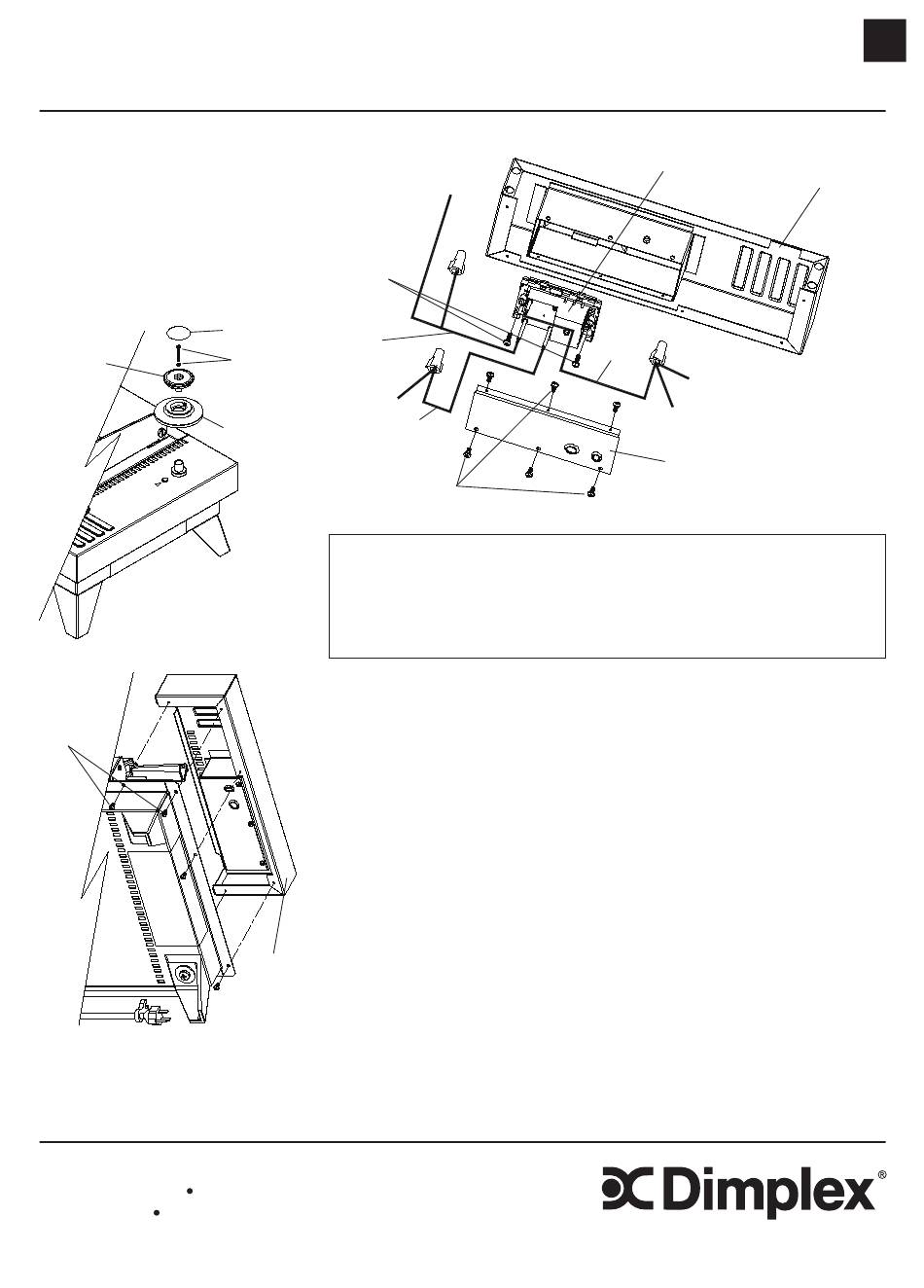

Figure 1 steps:
1. Unplug unit.
2. Remove and discard decal.
3. Remove Phillips screw along
with o-ring washer.
4. Remove knob and knob dial.
Figure 1
Knob
Figure 2
Screws
(5)
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to
make changes without notice.
Figure 3
Thermostat
Screws (2)
Decal
A
Screw and
washer
Knob dial
Thermostat
Enclosure Cover
Screws (6)
A: Black supply wire from Thermostat to wire nut, connecting black wire from
power cord.
B: Red load wire from Thermostat to wire nut, connecting to black wire from
grill.
C: White wire from Thermostat to wire nut, connecting to white wire from power
cord and white wire from grill.
5. From underneath the grill,
remove five (5) Phillips screws
holding down the Control Panel
Assembly (Figure 2).
6. Lift Control Panel Assembly
and flip to access Thermostat
Enclosure.
7. Remove six (6) screws holding
down the Thermostat Enclosure
Cover (Figure 3).
8. Before disconnecting wires,
remove the two (2) screws
Control holding the Thermostat in place
Panel
(Figure 3).
Assembly
9. Once Thermostat is free from
the Control Panel Assembly,
remove one wire cap at a time
and reconnect using same wire
from new Thermostat.
B
PBQ-120-METRO
Thermostat Control Panel
C
Thermostat
Enclosure Cover
10. Follow instructions in reverse
to re-assemble and finish by
applying the new decal which
was removed and discarded in
step 2.
7210350100rev00
EN
